KR42R-RCSREQ (1998)

Toyota Townace/Liteace

Production Dec 1998 - Oct 2003
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )KR42,SR40

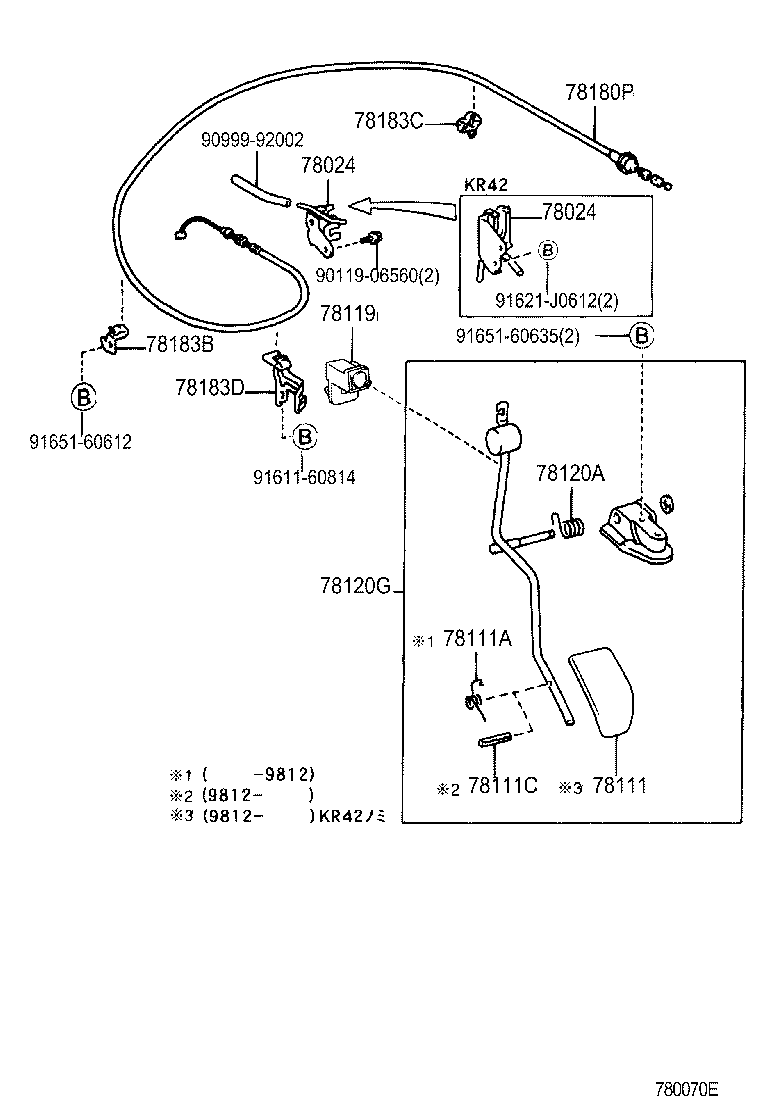

Click highlighted areas on diagram

diagram 78024 78024 78111 78111A 78111C 78119 78120A 78120G 78180P 78183B 78183C 78183D 9011906560 9099992002 9161160814 91621J0612 9165160612 9165160635
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-38010

KR42

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-38010

KR42

 1
78111 - PEDAL, ACCELERATOR
78111-28040

KR42

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90959-03135

CR41,KR4#,SR40

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019

KR42

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-28010

CR41,KR42,SR40

 1
90541-06036

CR41,KR4#,SR40

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90959-03125

KR4#

 1
90959-03125

KR42

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-28050

KR4#

 1
78120-28120

KR42

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-28290

KR42

 1
78180-28260

KR4#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-28260

KR4#

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-28230

KR42

 2
Common parts
90119-06560
90999-92002
91611-60814
91621-J0612
91651-60612
91651-60635
