KR42R-RCSREQ (1998)

Toyota Townace/Liteace

Production Dec 1998 - Oct 2003
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

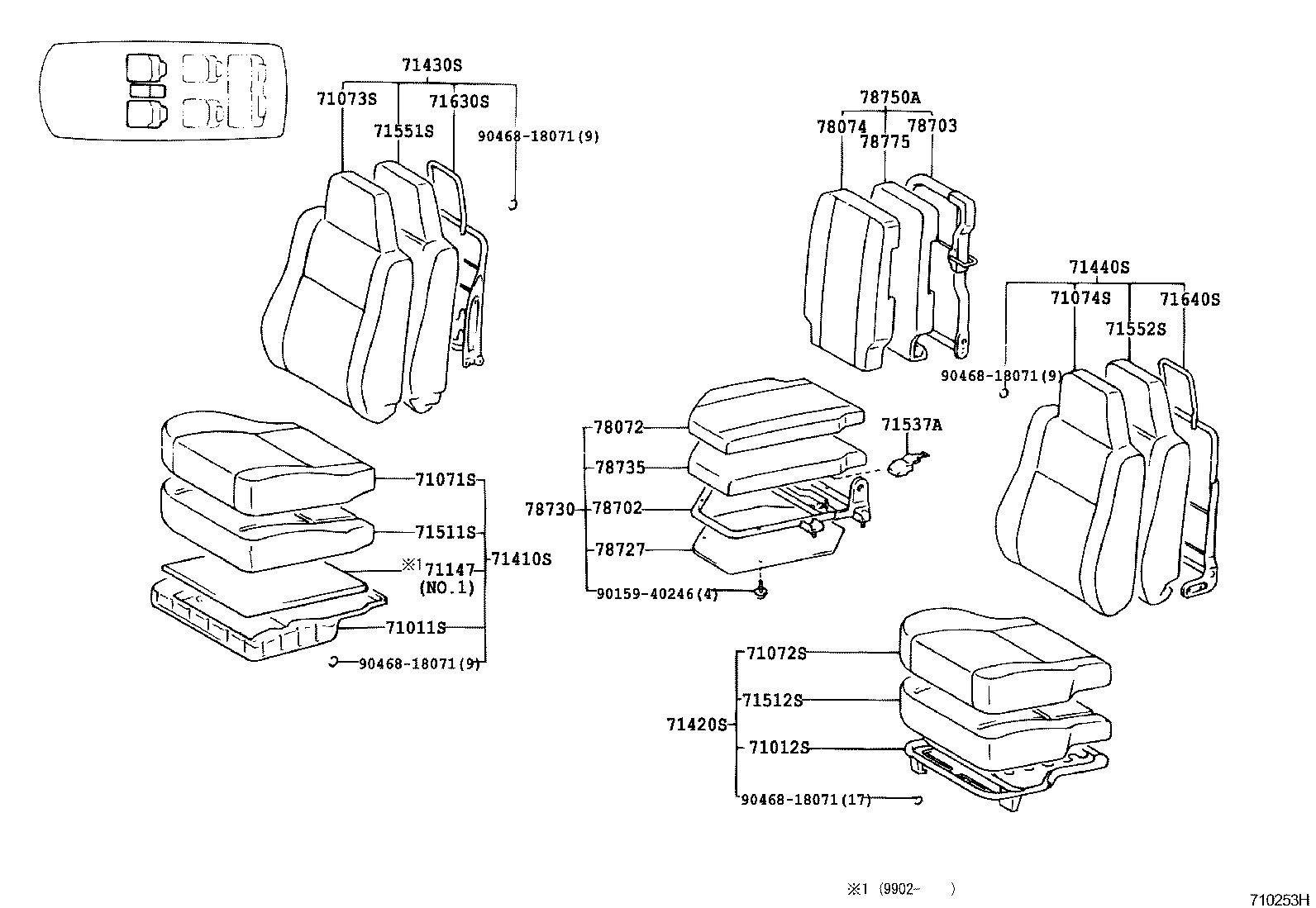

ILLUST NO. 1 OF 6(9611- )CR4#,KR4#

Click highlighted areas on diagram

FRONT SEAT,W(SUB SEAT)

diagram 71011S 71012S 71071S 71072S 71073S 71074S 71147 71410S 71420S 71430S 71440S 71511S 71512S 71537A 71551S 71552S 71630S 71640S 78072 78074 78702 78703 78727 78730 78735 78750A 78775 9015940246 9046818071 9046818071 9046818071 9046818071
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-28130

KR42..ARL

 1
71011-28130

CR41,KR4#,SR40

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-10220

KR42..ARL

 1
71011-10220

CR41,KR4#,SR40

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-2J140B0

CR41,KR4#

MEDIUM MOON MIST,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-2J120B0

CR41,KR4#

MEDIUM MOON MIST,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-2J180B0

CR41;KR42..ARL

MEDIUM MOON MIST,TRIM1#

 1
71073-2J180B0

CR41,KR4#

MEDIUM MOON MIST,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-2J180B0

CR41,KR4#

MEDIUM MOON MIST,TRIM1#

 1
71073-2J180B0

CR41;KR42..ARL

MEDIUM MOON MIST,TRIM1#

 1
71147 - SILENCER, SEAT SPRING
71147-28020

KR42..ARL;CR41,SR40..GEN

NO.1

 2
71147-28030

KR42..ARL;SR40..GEN

NO.2

 2
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-28800B0

CR41,KR4#

MEDIUM MOON MIST,TRIM1#

 1
71410-28800B1

CR4#,KR42

MD. MOON MIST,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-28740B0

CR41,KR4#

MEDIUM MOON MIST,TRIM1#

 1
71420-2J210B0

KR42..ARL

***,W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),MD. MOONMIST,TRIM1#

 1
71420-28740B1

KR42..ARL

MD. MOON MIST,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-2J270B0

CR41,KR4#

***,MEDIUM MOON MIST,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71430-2J270B0

CR41,KR4#

MEDIUM MOON MIST,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-28190

CR41,KR4#,SR40

 1
71511-28190

KR42..ARL

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-28150

CR41,KR4#,SR40

 1
71512-28150

KR42..ARL

 1
71052-28010

KR42..ARL

 1
71052-28010

KR42,SR40..02S,08S

SEMI-FABRIC SEAT

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-28220

CR41,KR4#,SR40

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-28220

CR41,KR4#,SR40

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-28280

CR41,KR4#,SR40

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-28280

CR41,KR4#,SR40

 1
Common parts
90159-40246
90468-18071

ILLUST NO. 1 OF 6(9611- )

Click highlighted areas on diagram

FRONT SEAT

diagram 71011S 71012S 71071S 71072S 71073S 71074S 71147 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71630S 71640S 71910A 71931 71931 9046818071 9046818071
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-28130

KR42..ARL

 1
71011-28130

CR41,KR4#,SR40

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-10220

KR42..ARL

 1
71011-10220

CR41,KR4#,SR40

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-2J140B0

CR41,KR4#

MEDIUM MOON MIST,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-2J120B0

CR41,KR4#

MEDIUM MOON MIST,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-2J180B0

CR41;KR42..ARL

MEDIUM MOON MIST,TRIM1#

 1
71073-2J180B0

CR41,KR4#

MEDIUM MOON MIST,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-2J180B0

CR41,KR4#

MEDIUM MOON MIST,TRIM1#

 1
71073-2J180B0

CR41;KR42..ARL

MEDIUM MOON MIST,TRIM1#

 1
71147 - SILENCER, SEAT SPRING
71147-28020

KR42..ARL;CR41,SR40..GEN

NO.1

 2
71147-28030

KR42..ARL;SR40..GEN

NO.2

 2
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-28800B0

CR41,KR4#

MEDIUM MOON MIST,TRIM1#

 1
71410-28800B1

CR4#,KR42

MD. MOON MIST,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-28740B0

CR41,KR4#

MEDIUM MOON MIST,TRIM1#

 1
71420-2J210B0

KR42..ARL

***,W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),MD. MOONMIST,TRIM1#

 1
71420-28740B1

KR42..ARL

MD. MOON MIST,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-2J270B0

CR41,KR4#

***,MEDIUM MOON MIST,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71430-2J270B0

CR41,KR4#

MEDIUM MOON MIST,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-28190

CR41,KR4#,SR40

 1
71511-28190

KR42..ARL

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-28150

CR41,KR4#,SR40

 1
71512-28150

KR42..ARL

 1
71052-28010

KR42..ARL

 1
71052-28010

KR42,SR40..02S,08S

SEMI-FABRIC SEAT

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-28220

CR41,KR4#,SR40

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-28220

CR41,KR4#,SR40

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-28280

CR41,KR4#,SR40

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-28280

CR41,KR4#,SR40

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-28780B1

CR41,KR4#

MEDIUM MOON MIST,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-28040B0

CR41,KR4#,SR40

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-28050B0

CR41,KR4#,SR40

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-28040B0

CR41,KR4#,SR40

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-28050B0

CR41,KR4#,SR40

W/O(LOCK),BLUE GRAY,TRIM1#

 2
Common parts
90468-18071

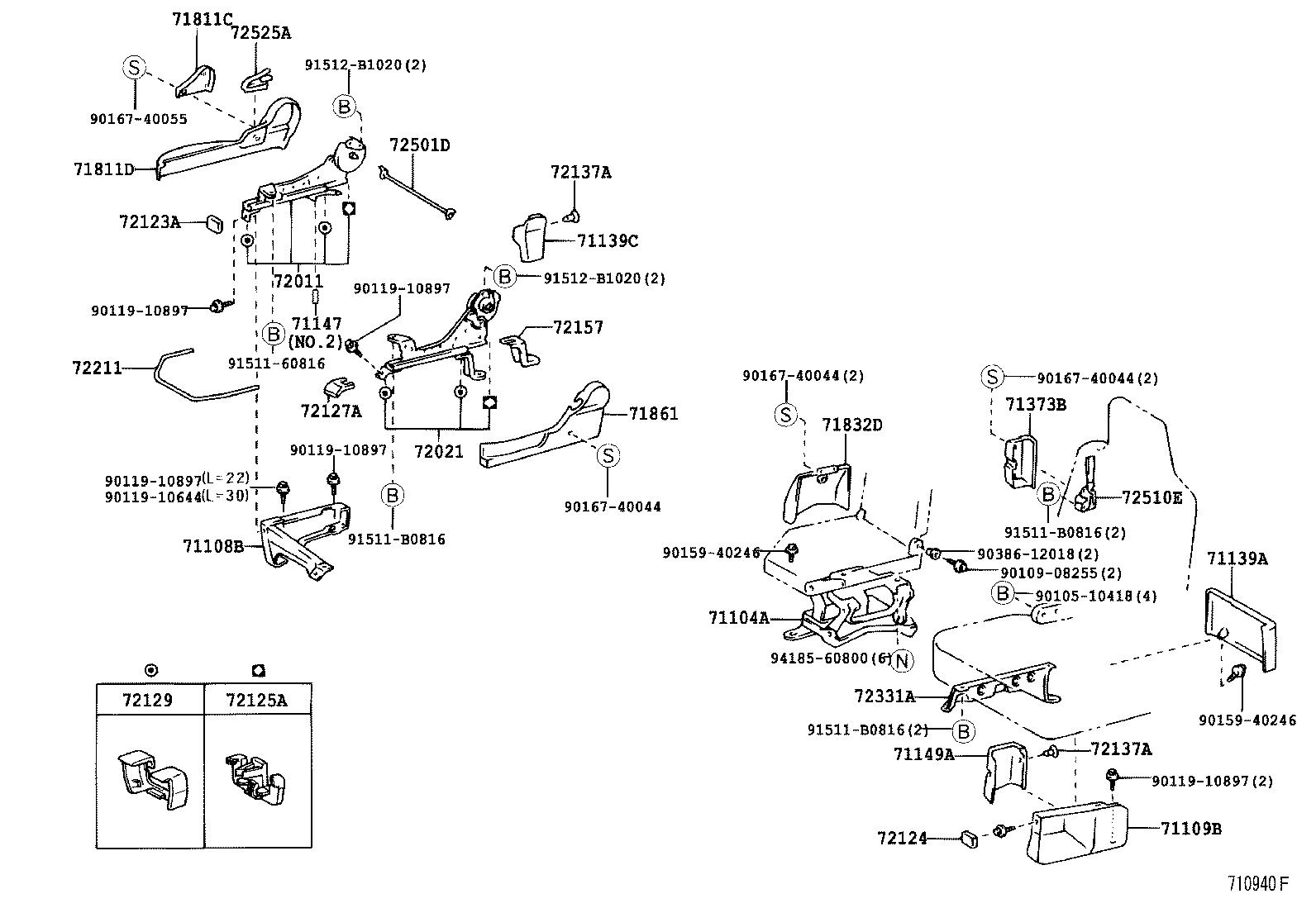

ILLUST NO. 2 OF 6(9611- )CR4#,KR4#

Click highlighted areas on diagram

FRONT SEAT,W(SUB SEAT)

diagram 71104A 71108B 71109B 71139A 71139C 71149A 71373B 71811C 71811D 71832D 71861 72011 72021 72123A 72124 72125A 72127A 72129 72137A 72137A 72157 72211 72331A 72501D 72510E 72525A 9010510418 9010908255 9011910644 9011910897 9011910897 9011910897 9011910897 9011910897 9015940246 9015940246 9016740044 9016740044 9016740044 9016740055 9038612018 9151160816 91511B0816 91511B0816 91511B0816 91512B1020 91512B1020 9418560800
Part # Description Qty Price
71108B - LEG SUB-ASSY, FRONT SEAT, RH
71108-28050B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
71108-28050B0

KR42

MD.MOON MIST,TRIM1#

 1
71109B - LEG SUB-ASSY, FRONT SEAT, LH
71109-28100B0

KR42,SR40..02S,08S

MD.MOON MIST,TRIM1#

 1
71109-28090B0

KR42

MD.MOON MIST,TRIM1#

 1
71139C - COVER, FRONT SEAT LEG, RH
71139-28010B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
71139-28010B0

KR42

MD.MOON MIST,TRIM1#

 1
71149A - COVER, FRONT SEAT LEG, LH
71149-28010B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
71149-28010B0

KR42

MD.MOON MIST,TRIM1#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-28130B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-28010B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-28060

CR41,KR4#,SR40

 1
72011-28061

CR41,KR42,SR40

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-28040

CR41,KR4#,SR40

 1
72021-28050

KR42..ARL

 1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-28040B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
72123-28040B0

KR42

MD.MOON MIST,TRIM1#

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72124-28020B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
72124-28020B0

KR42

MD.MOON MIST,TRIM1#

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070

CR41,KR4#,SR40

 4
72125-60070

KR42,SR40..02S,08S

 2
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-28010B0

KR42

MD.MOON MIST,TRIM1#

 1
72127-28010B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-60030

CR41,KR4#,SR40

W/O(PASSENGER SEAT)

 4
72129-60030

CR41,KR4#,SR40

 8
72129-28010

KR42..ARL;SR40..GEN

 4
72137A - CLIP (FOR SEAT TRACK COVER)
90467-05063B3

KR42

BLUISH GRAY,TRIM1#

 2
90467-05063B3

CR41,KR4#,SR40

BLUISH GRAY,TRIM1#

 2
72137A - CLIP (FOR SEAT TRACK COVER)
90467-05063B3

KR42

BLUISH GRAY,TRIM1#

 2
90467-05063B3

CR41,KR4#,SR40

BLUISH GRAY,TRIM1#

 2
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-28010B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 2
72157-28010B0

KR42

MD.MOON MIST,TRIM1#

 2
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-28030

KR42..ARL

 1
72211-28070

CR41,KR4#,SR40

LH

 1
72211-28070

KR42..ARL

LH

 1
72211-28030

CR41,KR4#,SR40

RH

 1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-28060

CR41,KR4#,SR40

FRONT SEAT

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-16010B7

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
Common parts
90105-10418
90109-08255
90119-10644
90119-10897
90159-40246
90167-40044
90167-40055
90386-12018
91511-60816
91511-B0816
91512-B1020
94185-60800

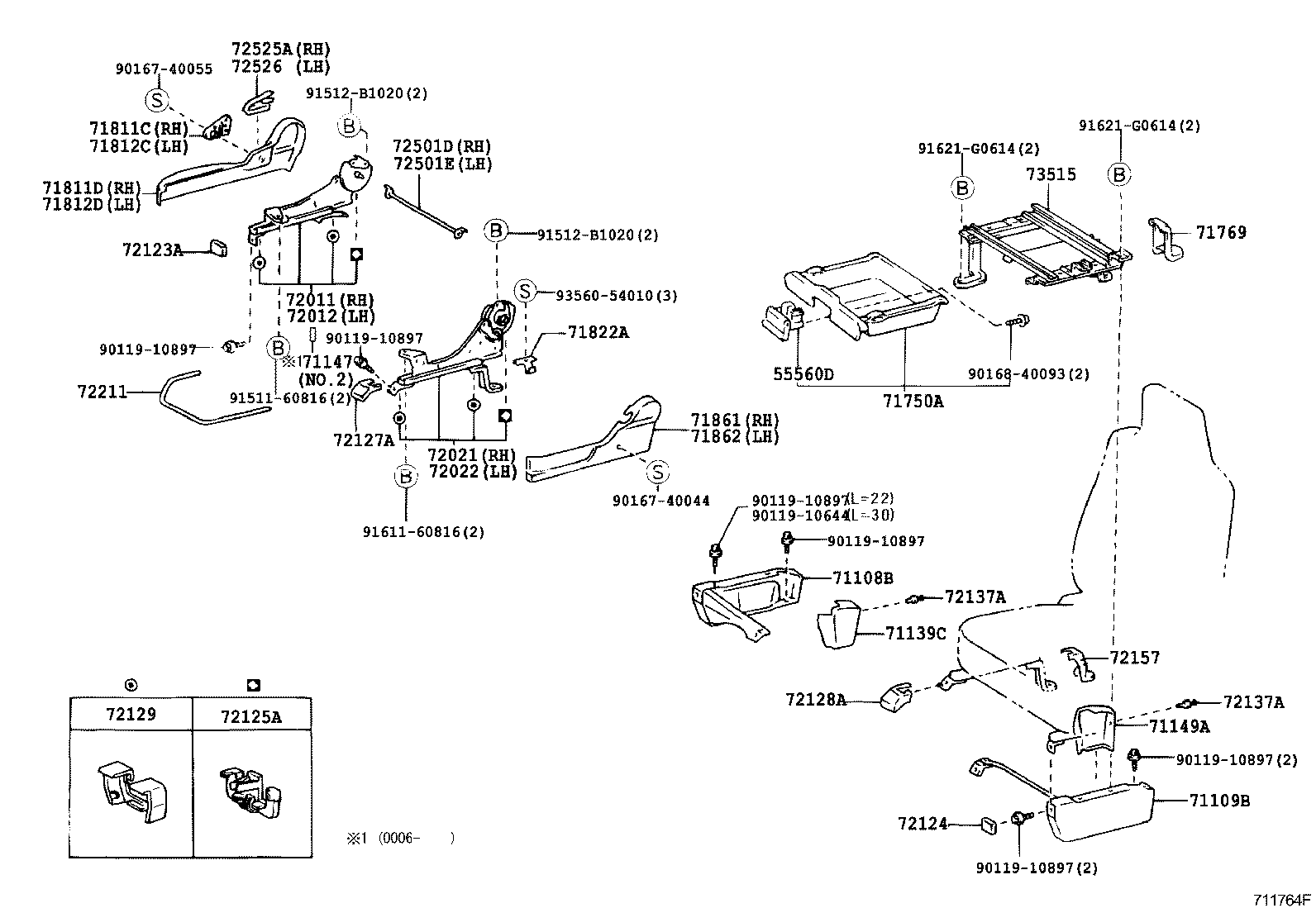

ILLUST NO. 2 OF 6(9611- )

Click highlighted areas on diagram

FRONT SEAT

diagram 55560D 71108B 71109B 71139C 71147 71149A 71750A 71769 71811C 71811D 71812C 71812D 71822A 71861 71862 72011 72012 72021 72022 72123A 72124 72125A 72127A 72128A 72129 72137A 72137A 72157 72211 72501D 72501E 72525A 72526 73515 9011910644 9011910897 9011910897 9011910897 9011910897 9011910897 9011910897 9016740044 9016740055 9016840093 9151160816 91512B1020 91512B1020 9161160816 91621G0614 91621G0614 9356054010
Part # Description Qty Price
71108B - LEG SUB-ASSY, FRONT SEAT, RH
71108-28050B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
71108-28050B0

KR42

MD.MOON MIST,TRIM1#

 1
71109B - LEG SUB-ASSY, FRONT SEAT, LH
71109-28100B0

KR42,SR40..02S,08S

MD.MOON MIST,TRIM1#

 1
71109-28090B0

KR42

MD.MOON MIST,TRIM1#

 1
71139C - COVER, FRONT SEAT LEG, RH
71139-28010B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
71139-28010B0

KR42

MD.MOON MIST,TRIM1#

 1
71147 - SILENCER, SEAT SPRING
71147-28020

KR42..ARL;CR41,SR40..GEN

NO.1

 2
71147-28030

KR42..ARL;SR40..GEN

NO.2

 2
71149A - COVER, FRONT SEAT LEG, LH
71149-28010B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
71149-28010B0

KR42

MD.MOON MIST,TRIM1#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-28130B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-28140B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-28010B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-28010B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-28060

CR41,KR4#,SR40

 1
72011-28061

CR41,KR42,SR40

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-28080

CR41,KR4#,SR40

 1
72012-28061

CR41,KR42,SR40

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-28040

CR41,KR4#,SR40

 1
72021-28050

KR42..ARL

 1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-28030

CR41,KR4#,SR40

 1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-28040B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
72123-28040B0

KR42

MD.MOON MIST,TRIM1#

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72124-28020B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
72124-28020B0

KR42

MD.MOON MIST,TRIM1#

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070

CR41,KR4#,SR40

 4
72125-60070

KR42,SR40..02S,08S

 2
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-28010B0

KR42

MD.MOON MIST,TRIM1#

 1
72127-28010B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72128-28010B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
72128-28010B0

KR42

MD.MOON MIST,TRIM1#

 1
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-60030

CR41,KR4#,SR40

W/O(PASSENGER SEAT)

 4
72129-60030

CR41,KR4#,SR40

 8
72129-28010

KR42..ARL;SR40..GEN

 4
72137A - CLIP (FOR SEAT TRACK COVER)
90467-05063B3

KR42

BLUISH GRAY,TRIM1#

 2
90467-05063B3

CR41,KR4#,SR40

BLUISH GRAY,TRIM1#

 2
72137A - CLIP (FOR SEAT TRACK COVER)
90467-05063B3

KR42

BLUISH GRAY,TRIM1#

 2
90467-05063B3

CR41,KR4#,SR40

BLUISH GRAY,TRIM1#

 2
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-28010B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 2
72157-28010B0

KR42

MD.MOON MIST,TRIM1#

 2
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-28030

KR42..ARL

 1
72211-28070

CR41,KR4#,SR40

LH

 1
72211-28070

KR42..ARL

LH

 1
72211-28030

CR41,KR4#,SR40

RH

 1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-28060

CR41,KR4#,SR40

FRONT SEAT

 1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72501-28060

CR41,KR4#,SR40

FRONT SEAT

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-16010B7

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-16010B7

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
Common parts
90119-10644
90119-10897
90167-40044
90167-40055
90168-40093
91511-60816
91512-B1020
91611-60816
91621-G0614
93560-54010
