KR42R-RCSREQ (1998)

Toyota Townace/Liteace

Production Dec 1998 - Oct 2003
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

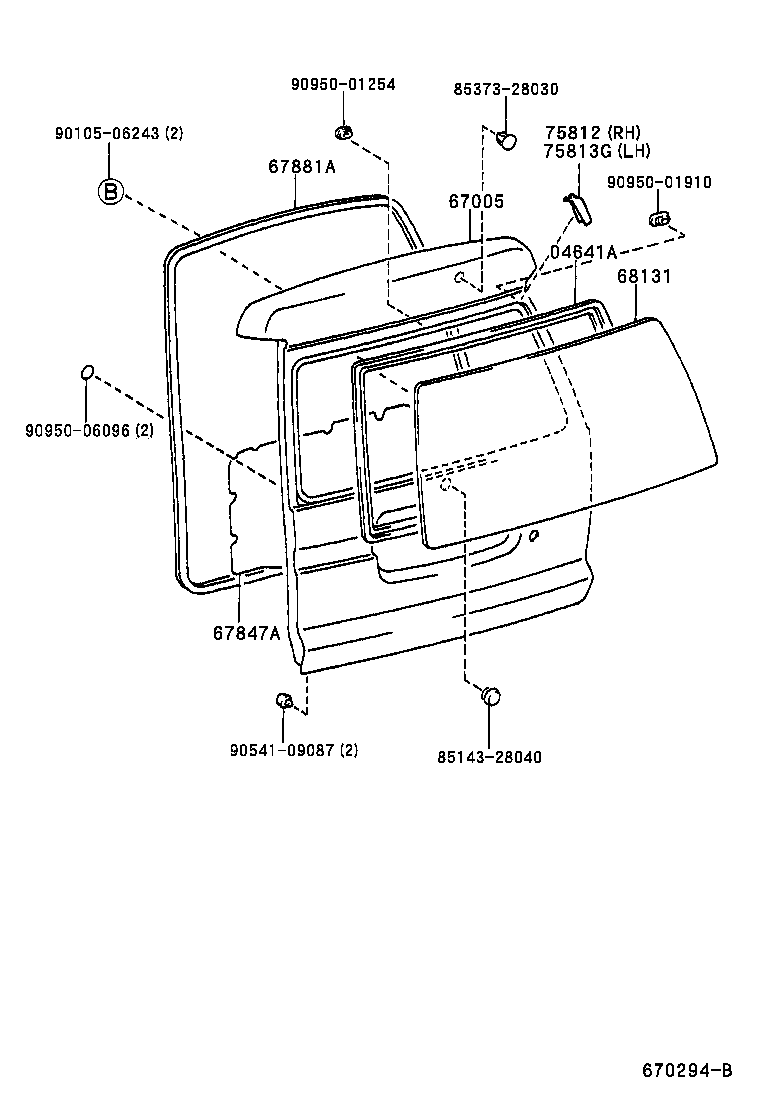

ILLUST NO. 2 OF 2(9611- )CR4#,KR4#

Click highlighted areas on diagram

diagram 04641A 67005 67847A 67881A 68131 75812 75813G 8514328040 8537328030 9010506243 9054109087 9095001254 9095001910 9095006096
Part # Description Qty Price
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
68294-28080

CR41,KR4#

 1
68294-28080

KR42

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-2J650

CR41,KR4#

W(REAR WIPER & REAR UNDER MIRROR)

 1
67005-2R450

CR41,KR42

W(REAR WIPER & REAR UNDER MIRROR)

 1
67847A - COVER, BACK DOOR SERVICE HOLE
67847-28060

KR42

 1
67847-28060

CR41,KR4#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-28060

CR41,KR4#,SR40

 1
67881-28060

KR42

 1
68131 - GLASS, BACK DOOR
68105-28150

CR41,KR4#

*EHT,T=3.1,GREEN

 1
68105-28150

KR42

*EHT,T=3.1,GREEN

 1
75812 - MOULDING, BACK DOOR, OUTSIDE UPPER RH
75812-28010

CR41,KR4#

 1
75812-28030

KR42

 1
75813G - MOULDING, BACK DOOR, OUTSIDE UPPER LH
75813-28010

CR41,KR4#

 1
75813-28050

KR42

 1
Common parts
85143-28040
85373-28030
90105-06243
90541-09087
90950-01254
90950-01910
90950-06096

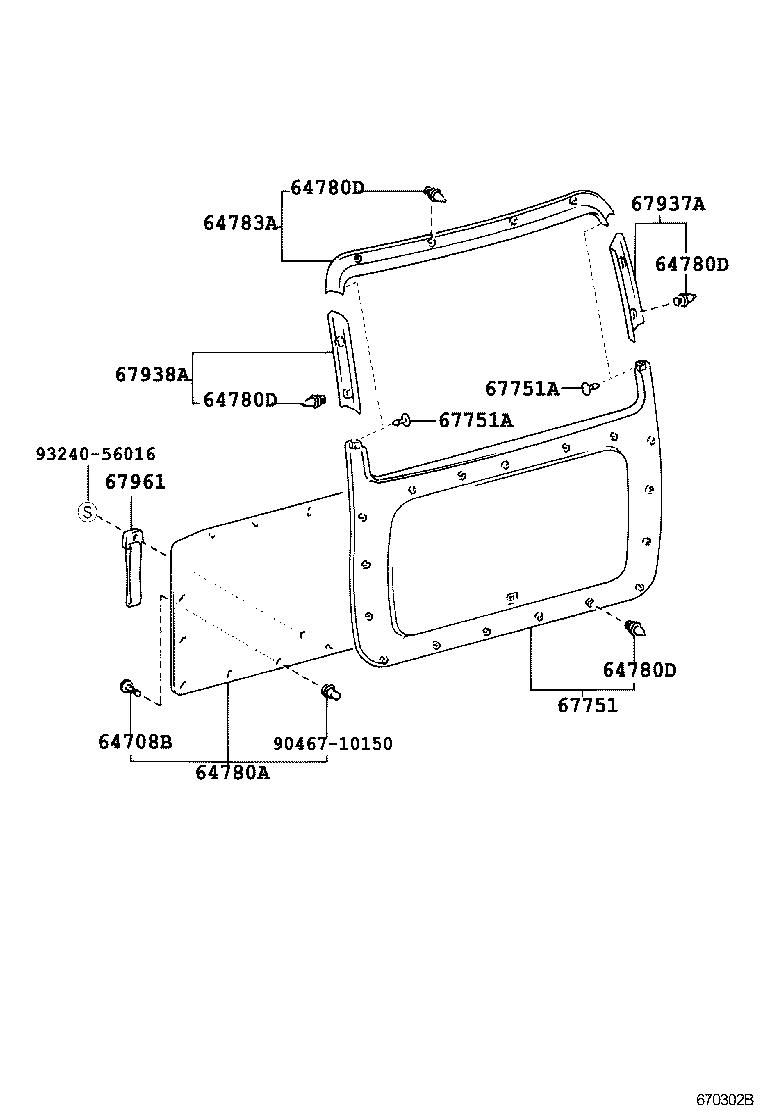

ILLUST NO. 1 OF 2(9611- )

Click highlighted areas on diagram

diagram 64708B 64780A 64780D 64780D 64780D 64780D 64783A 67751 67751A 67751A 67937A 67938A 67961 9046710150 9324056016
Part # Description Qty Price
64708B - CLIP, BACK DOOR TRIM
90467-07054E1

CR41,KR4#

BEIGE,TRIM1#

 17
90467-07054E1

KR42

BEIGE,TRIM1#

 17
64780A - PANEL ASSY, BACK DOOR TRIM
64780-28140

KR42

 1
64780-28140

CR41,KR4#

 1
67961 - STRAP, BACK DOOR PULL
67908-28020B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
67908-28020B0

KR42

MD.MOON MIST,TRIM1#

 1
Common parts
90467-10150
93240-56016
