KR42R-RCSREQ (1998)
Toyota Townace/Liteace
ILLUST NO. 2 OF 2(9611- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-28090 |
CR41,KR4# |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-28110 |
CR41,KR4# |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-28020 |
CR41,KR4#,SR40 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-28030 |
CR41,KR4#,SR40 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-28020 |
CR41,KR4#,SR40 |
1 | ||
| 67401-28020 |
KR42 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-28020 |
KR42 |
1 | ||
| 67402-28020 |
CR41,KR4#,SR40 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-28050 |
CR41,KR4#,SR40 |
1 | ||
| 67403-28050 |
KR42 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-28050 |
CR41,KR4#,SR40 |
1 | ||
| 67404-28050 |
KR42 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-28090 |
CR41,KR4#,SR40 |
1 | ||
| 67831-28090 |
KR42 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-28070 |
KR42 |
1 | ||
| 67832-28070 |
CR41,KR4#,SR40 |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-28020 |
CR41,KR4#,SR40 |
2 | ||
| 67855-28020 |
KR42 |
2 | ||
| 67855D - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-28030 |
CR41,KR4#,SR40 |
1 | ||
| 67855-28030 |
KR42 |
1 | ||
| 67856D - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67856-28020 |
KR42 |
1 | ||
| 67856-28020 |
CR41,KR4#,SR40 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-28040 |
KR42 |
1 | ||
| 67861-28040 |
CR41,KR4#,SR40 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-28040 |
KR42 |
1 | ||
| 67862-28040 |
CR41,KR4#,SR40 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
KR42 |
29 | ||
| 67867-12150 |
CR41,KR4#,SR40 |
29 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
CR41,KR4#,SR40 |
29 | ||
| 67867-12150 |
KR42 |
29 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-28130 |
CR41,KR4#,SR40 *TT,T=3.5,GREEN |
1 | ||
| 68101-28130 |
KR42 *TT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-28130 |
CR41,KR4#,SR40 *TT,T=3.5,GREEN |
1 | ||
| 68102-28130 |
KR42 *TT,T=3.5,GREEN |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-28061 |
KR42 |
1 | ||
| 68141-28060 |
CR41,KR4#,SR40 |
1 | ||
| 68141-28060 |
CR4#,KR42,SR40 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-28030 |
CR41,KR4#,SR40 |
1 | ||
| 68151-28030 |
CR4#,KR42,SR40 |
1 | ||
| 68151-28031 |
KR42 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-28030 |
KR42 |
1 | ||
| 68161-28030 |
CR41,KR4#,SR40 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-28030 |
KR42 |
1 | ||
| 68162-28030 |
CR41,KR4#,SR40 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-28030 |
KR42 |
2 | ||
| 68610-28030 |
CR41,KR4#,SR40 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-50010 |
KR42 |
2 | ||
| 68617-50010 |
CR41,KR4#,SR40 |
2 | ||
| 68618 - BRACKET, FRONT DOOR CHECK ARM, RH | ||||
| 68618-50010 |
CR41,KR4#,SR40 |
1 | ||
| 68618C - BRACKET, FRONT DOOR CHECK ARM, LH | ||||
| 68618-50010 |
CR41,KR4#,SR40 |
1 | ||
| Common parts | ||||
| 90119-06722 | ||||
| 90149-80030 | ||||
| 90159-40261 | ||||
| 90333-01011 | ||||
| 90333-20001 | ||||
| 90541-09069 | ||||
| 90950-01618 | ||||
| 91511-B0616 | ||||
| 91531-60610 | ||||

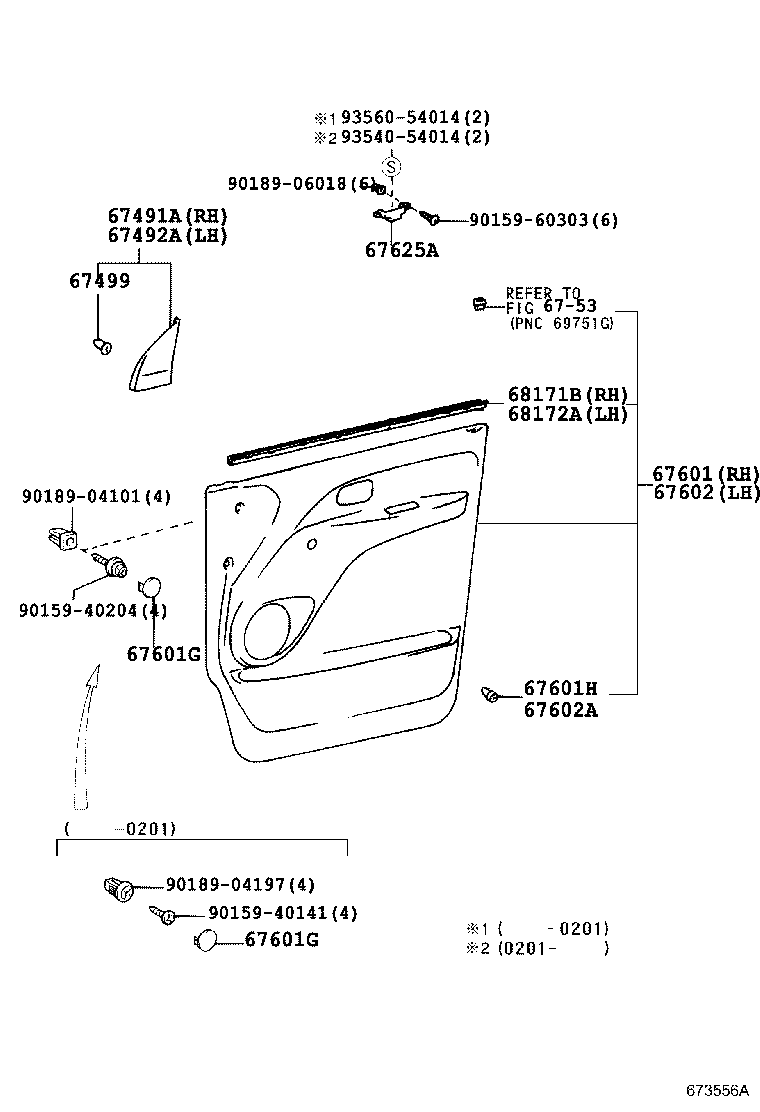

ILLUST NO. 1 OF 2(9812- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-28020 |
KR42 |
1 | ||
| 67491-28020 |
CR41,KR4#,SR40 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-28020 |
KR42 |
1 | ||
| 67492-28020 |
CR41,KR4#,SR40 |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-12030 |
KR42 |
2 | ||
| 67499-12030 |
CR41,KR4#,SR40 |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-28620B0 |
KR42 MD.MOON MIST,TRIM1# |
1 | ||
| 67610-28620B0 |
CR41,KR4# MD.MOON MIST,TRIM1# |
1 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800B3 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
4 | ||
| 90950-01800B3 |
KR42 MD.MOON MIST,TRIM1# |
4 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800B3 |
CR41,KR4#,SR40 MD.MOON MIST,TRIM1# |
4 | ||
| 90950-01800B3 |
KR42 MD.MOON MIST,TRIM1# |
4 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16080 |
CR41,KR4# NATURAL |
10 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-28620B0 |
CR41,KR4# MD.MOON MIST,TRIM1# |
1 | ||
| 67620-28620B0 |
KR42 MD.MOON MIST,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16080 |
CR41,KR4# NATURAL |
6 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-28030 |
KR42 |
2 | ||
| 67625-28030 |
CR41,KR4# |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-28040 |
CR41,KR4#,SR40 |
1 | ||
| 68171-28040 |
KR42 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-28030 |
CR41,KR4#,SR40 |
1 | ||
| 68172-28030 |
KR42 |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90159-40204 | ||||
| 90159-60303 | ||||
| 90189-04101 | ||||
| 90189-04197 | ||||
| 90189-06018 | ||||
| 93540-54014 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 6753 | ||||
