KR42R-RCSREQ (1998)

Toyota Townace/Liteace

Production Dec 1998 - Oct 2003
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )CR4#,KR4#

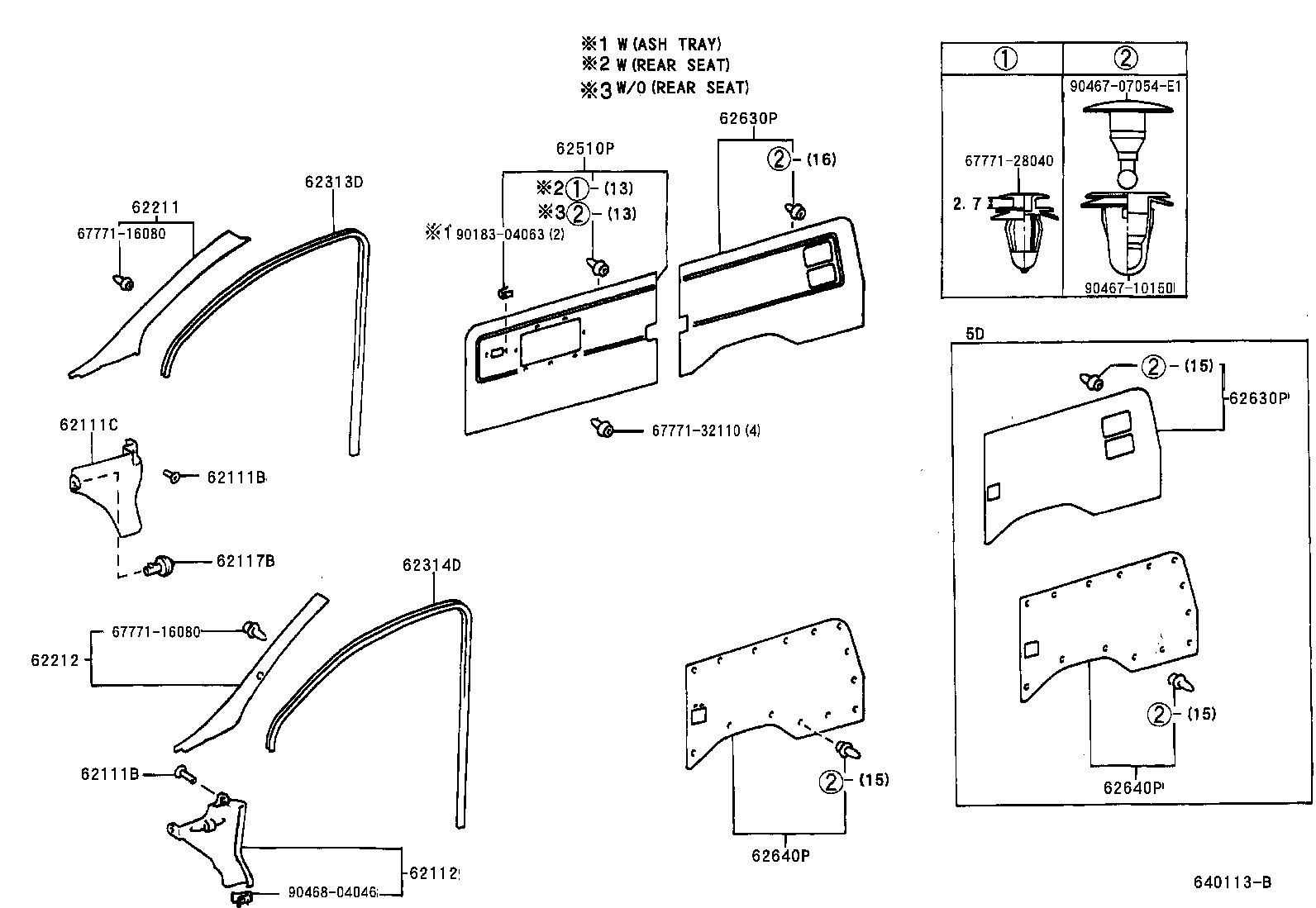

Click highlighted areas on diagram

diagram 62111B 62111B 62111C 62112 62117B 62211 62212 62313D 62314D 62510P 62630P 62630P 62640P 62640P 6777116080 6777116080 6777128040 6777132110 9018304063 9046707054E1 9046710150 9046804046
Part # Description Qty Price
62111B - CLIP(FOR COWL SIDE TRIM)
90467-0503101

CR41,KR4#,SR40

BLACK,TRIM1#

 2
90467-0503101

KR42

BLACK,TRIM1#

 2
62111B - CLIP(FOR COWL SIDE TRIM)
90467-0503101

CR41,KR4#,SR40

BLACK,TRIM1#

 2
90467-0503101

KR42

BLACK,TRIM1#

 2
62111C - BOARD, COWL SIDE TRIM, RH
62111-28060B0

KR42

MD.MOON MIST,TRIM1#

 1
62111-28060B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-28050B0

CR41,KR4#,SR40

MD.MOON MIST,TRIM1#

 1
62112-28050B0

KR42

MD.MOON MIST,TRIM1#

 1
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-06189B0

KR42

BLUISH GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-28350B0

KR42

MOON MIST,TRIM1#

 1
62211-28220B0

CR41,KR4#

MOON MIST,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-28110B0

CR41,KR4#

MOON MIST,TRIM1#

 1
62212-28110B0

KR42

MOON MIST,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-28070B0

CR41,KR4#

MOON MIST,TRIM1#

 1
62313-28070B0

KR42

MOON MIST,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-28020B0

CR41,KR4#

MOON MIST,TRIM1#

 1
62314-28020B0

KR42

MOON MIST,TRIM1#

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-28250

CR41,KR4#..4D

 1
62510-28250

KR42..4D

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-2R060

CR41,KR4#..4D

 1
62630-2R060

KR42..4D

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-2R060

CR41,KR4#..4D

 1
62630-2R060

KR42..4D

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-2J040

CR41,KR4#

 1
62640-2J040

KR42

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-2J040

CR41,KR4#

 1
62640-2J040

KR42

 1
Common parts
67771-16080
67771-28040
67771-32110
90183-04063
90467-07054E1
90467-10150
90468-04046
