KR42R-RCSREQ (1998)
Toyota Townace/Liteace
Production
Dec 1998
-
Oct 2003
Engine
7KE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

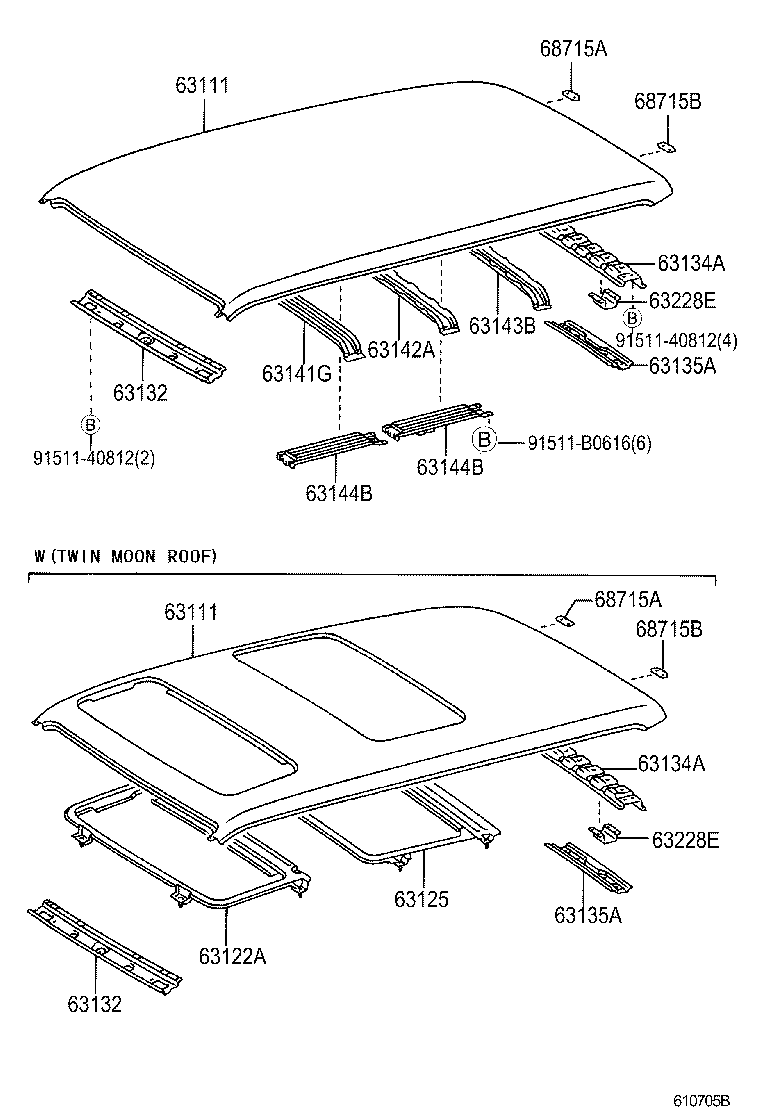

ILLUST NO. 1 OF 3(9611- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63111 - PANEL, ROOF | ||||
| 63111-28070 |
CR41,KR4#,SR40 |
1 | ||
| 63111-28070 |
KR42 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-28070 |
CR41,KR4#,SR40 |
1 | ||
| 63111-28070 |
KR42 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-28040 |
CR41,KR4#,SR40 |
1 | ||
| 63132-28040 |
KR42 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-28040 |
CR41,KR4#,SR40 |
1 | ||
| 63132-28040 |
KR42 |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-28040 |
CR41,KR4#,SR40 |
1 | ||
| 63134-28040 |
KR42 |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-28040 |
CR41,KR4#,SR40 |
1 | ||
| 63134-28040 |
KR42 |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-28040 |
CR41,KR4#,SR40 |
1 | ||
| 63135-28040 |
KR42 |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-28040 |
CR41,KR4#,SR40 |
1 | ||
| 63135-28040 |
KR42 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-28050 |
KR42 |
1 | ||
| 63141-28040 |
CR41,KR4# |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-28040 |
CR41,KR4#,SR40 |
1 | ||
| 63142-28040 |
KR42 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-28030 |
KR42 |
1 | ||
| 63143-28030 |
CR41,KR4#,SR40 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-28040 |
CR41,KR4# |
2 | ||
| 63144-28040 |
KR42 |
2 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-28040 |
CR41,KR4# |
2 | ||
| 63144-28040 |
KR42 |
2 | ||
| 63228E - BRACKET, ROOF HEADLINING, NO.1 | ||||
| 63228-28030 |
KR42 |
1 | ||
| 63228-28030 |
CR41,KR4#,SR40 |
1 | ||
| 63228E - BRACKET, ROOF HEADLINING, NO.1 | ||||
| 63228-28030 |
KR42 |
1 | ||
| 63228-28030 |
CR41,KR4#,SR40 |
1 | ||
| 68715A - PLATE, DOOR HINGE, UPPER | ||||
| 68715-28030 |
CR41,KR4#,SR40 |
1 | ||
| 68715-28040 |
KR42 |
1 | ||
| 68715A - PLATE, DOOR HINGE, UPPER | ||||
| 68715-28030 |
CR41,KR4#,SR40 |
1 | ||
| 68715-28040 |
KR42 |
1 | ||
| 68715B - PLATE, DOOR HINGE, UPPER | ||||
| 68715-28040 |
CR41,KR4#,SR40 |
1 | ||
| 68715-28040 |
KR42 |
1 | ||
| 68715B - PLATE, DOOR HINGE, UPPER | ||||
| 68715-28040 |
CR41,KR4#,SR40 |
1 | ||
| 68715-28040 |
KR42 |
1 | ||
| Common parts | ||||
| 91511-40812 | ||||
| 91511-B0616 | ||||
