KR42R-RCSREQ (1998)

Toyota Townace/Liteace

Production Dec 1998 - Oct 2003
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )

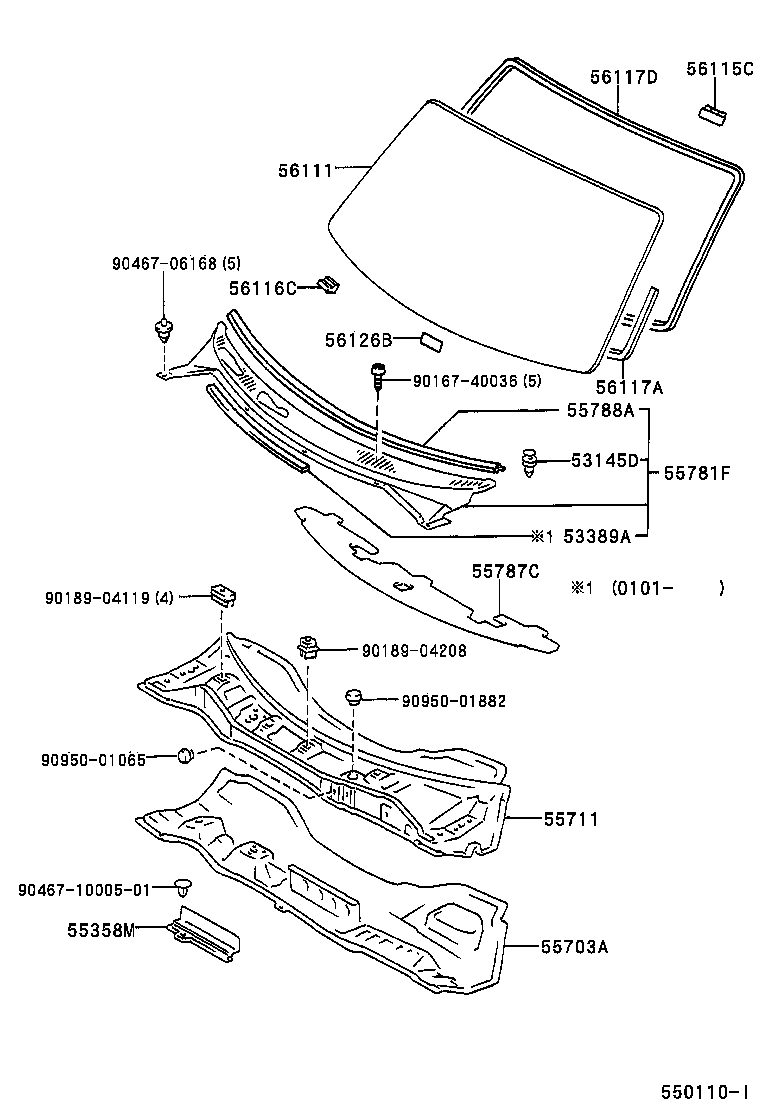

Click highlighted areas on diagram

diagram 53145D 53389A 55358M 55703A 55711 55781F 55787C 55788A 56111 56115C 56116C 56117A 56117D 56126B 9016740036 9018904119 9018904208 9046706168 904671000501 9095001065 9095001882
Part # Description Qty Price
53145D - CLIP, RADIATOR GRILLE
53145-28010

CR41,KR4#,SR40

 2
67771-28050

CR41,KR4#,SR40

COLD SPEC

 2
67771-28050

KR42

 2
53389A - SEAL, HOOD TO COWL TOP, NO.2
53389-28020

KR42

 1
55703A - PANEL SUB-ASSY, COWL TOP, INNER
55703-28080

CR41,KR4#,SR40

 1
55703-28330

KR42..ATM

 1
55711 - PANEL, COWL TOP, OUTER
55701-28170

KR42..ARL

 1
55781F - LOUVER, COWL TOP VENTILATOR
55708-28010

CR41,KR4#,SR40

 1
55708-28030

KR42

 1
55708-28010

CR41,KR42,SR40

 1
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-28020

CR41,KR4#,SR40

 1
55788-28030

KR42

 1
56111 - GLASS, WINDSHIELD
56111-28250

KR42,SR40..ARL

*TL,T=4.7,GREEN

 1
56111-28250

KR42,SR40..ARL

*TL,T=4.7,GREEN

 1
56115C - STOPPER, WINDSHIELD GLASS
56115-20080

KR42

 2
56115-20080

CR41,KR4#,SR40

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-28040

CR41,KR4#,SR40

 2
56116-28060

KR42

 2
56117D - DAM, WINDSHIELD GLASS ADHESIVE
56117-28040

CR41,KR4#,SR40

L=2855

 1
56126B - SPACER, WINDSHIELD GLASS, NO.2
56126-28010

CR41,KR4#,SR40

 1
56126-28010

KR42

 2
Common parts
90167-40036
90189-04119
90189-04208
90467-06168
90467-1000501
90950-01065
90950-01882
