KR42R-RCSREQ (1998)
Toyota Townace/Liteace
Production
Dec 1998
-
Oct 2003
Engine
7KE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9611- )

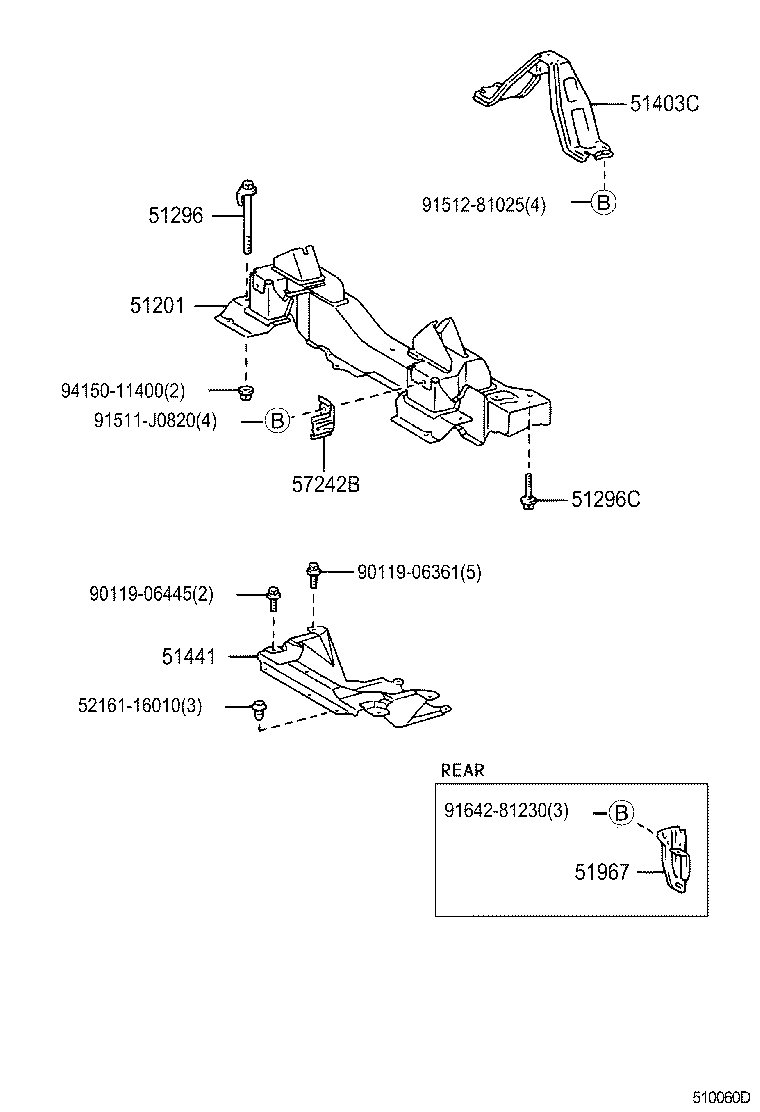

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51210-28090 |
KR4# |
1 | ||
| 51210-28040 |
KR42 W(POWER STEERING) |
1 | ||
| 51210-28040 |
KR4# W(POWER STEERING) |
1 | ||
| 51210-28090 |
KR42 |
1 | ||
| 51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING | ||||
| 51296-28020 |
KR42 |
2 | ||
| 51296-28020 |
CR41,KR4#,SR40 |
2 | ||
| 51296C - BOLT, FRONT SUSPENSION MEMBER MOUNTING | ||||
| 51296-28040 |
CR41,KR4#,SR40 |
4 | ||
| 51296-28040 |
KR42 |
4 | ||
| 51403C - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51403-28030 |
KR42..ATM |
1 | ||
| 51403-28030 |
KR42..ATM |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-28090 |
CR41,KR4#,SR40 |
1 | ||
| 51441-28090 |
KR42 |
1 | ||
| 51967 - HOOK, TRANSPORT, REAR | ||||
| 51095-28050 |
KR42 |
1 | ||
| 51095-28050 |
CR41,KR4#,SR40 |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 90119-06361 | ||||
| 90119-06445 | ||||
| 91511-J0820 | ||||
| 91512-81025 | ||||
| 91642-81230 | ||||
| 94150-11400 | ||||
