KR42R-RCSREQ (1998)
Toyota Townace/Liteace

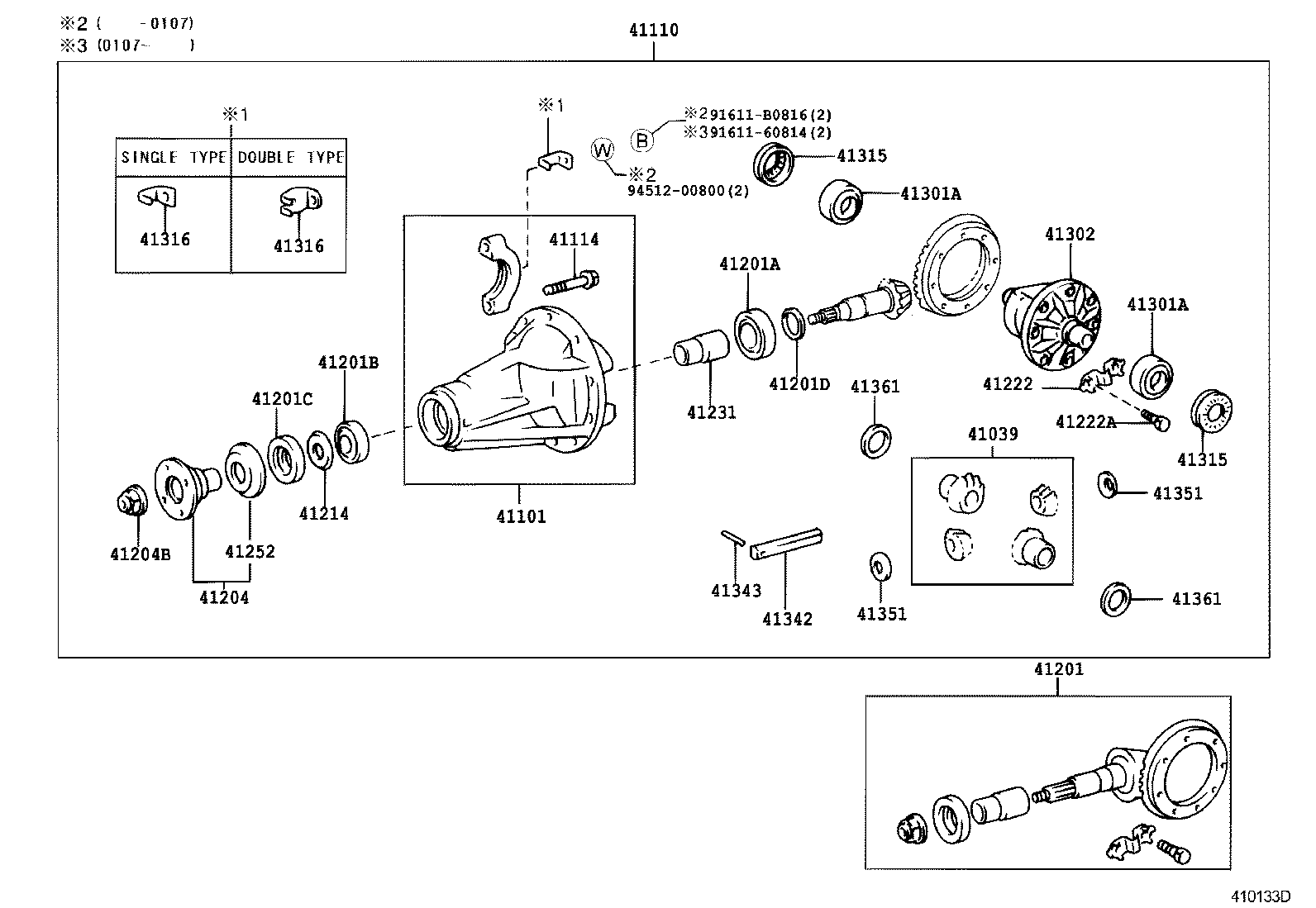

ILLUST NO. 1 OF 2(9611- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-28010 |
KR42 |
1 | ||
| 41039-28010 |
CR41,KR4#,SR40 |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-30010 |
KR42 |
1 | ||
| 41101-30010 |
CR41,KR4#,SR40 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-27120 |
KR41;KR42..ARL *FGR=41:9=4.555 |
1 | ||
| 41110-27120 |
KR42..ARL *FGR=41:9=4.555 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12240 |
CR41,KR4#,SR40 |
4 | ||
| 90105-12240 |
KR42 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80020 |
KR41;KR42..ARL *FGR=41:9=4.556 |
1 | ||
| 41201-80020 |
KR42..ARL *FGR=41:9=4.556 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35067 |
CR41,KR4#,SR40 |
1 | ||
| 90366-35064 |
KR42 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30055 |
KR42 |
1 | ||
| 90366-30055 |
CR41,KR4#,SR40 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
CR41,KR4#,SR40 |
1 | ||
| 90311-38133 |
CR4#,KR42,SR40 |
1 | ||
| 90311-38047 |
KR42 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35399 |
CR41,KR4#,SR40 T=2.43,MARK 08 |
1 | ||
| 90201-35398 |
CR41,KR4#,SR40 T=2.42,MARK 07 |
1 | ||
| 90201-35397 |
CR41,KR4#,SR40 T=2.39,MARK 06 |
1 | ||
| 90201-35402 |
CR41,KR4#,SR40 T=2.54,MARK 11 |
1 | ||
| 90201-35404 |
CR41,KR4#,SR40 T=2.60,MARK 13 |
1 | ||
| 90201-35396 |
CR41,KR4#,SR40 T=2.36,MARK 05 |
1 | ||
| 90201-35401 |
CR41,KR4#,SR40 T=2.51,MARK 10 |
1 | ||
| 90201-35403 |
CR41,KR4#,SR40 T=2.57,MARK 12 |
1 | ||
| 90201-35441 |
CR41,KR4#,SR40 T=2.72,MARK 17 |
1 | ||
| 90201-35439 |
CR41,KR4#,SR40 T=2.66,MARK 15 |
1 | ||
| 90201-35516 |
CR41,KR4#,SR40 OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35400 |
CR41,KR4#,SR40 T=2.48,MARK 09 |
1 | ||
| 90201-35518 |
CR41,KR4#,SR40 OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35517 |
CR41,KR4#,SR40 OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35440 |
CR41,KR4#,SR40 T=2.69,MARK 16 |
1 | ||
| 90201-35438 |
CR41,KR4#,SR40 T=2.63,MARK 14 |
1 | ||
| 90201-35515 |
CR41,KR4#,SR40 OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35397 |
KR42 T=2.39,MARK 06 |
1 | ||
| 90201-35402 |
KR42 T=2.54,MARK 11 |
1 | ||
| 90201-35398 |
KR42 T=2.42,MARK 07 |
1 | ||
| 90201-35400 |
KR42 T=2.48,MARK 09 |
1 | ||
| 90201-35396 |
KR42 T=2.36,MARK 05 |
1 | ||
| 90201-35399 |
KR42 T=2.43,MARK 08 |
1 | ||
| 90201-35440 |
KR42 T=2.69,MARK 16 |
1 | ||
| 90201-35438 |
KR42 T=2.63,MARK 14 |
1 | ||
| 90201-35516 |
KR42 OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35403 |
KR42 T=2.57,MARK 12 |
1 | ||
| 90201-35518 |
KR42 OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35401 |
KR42 T=2.51,MARK 10 |
1 | ||
| 90201-35515 |
KR42 OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35517 |
KR42 OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35404 |
KR42 T=2.60,MARK 13 |
1 | ||
| 90201-35439 |
KR42 T=2.66,MARK 15 |
1 | ||
| 90201-35441 |
KR42 T=2.72,MARK 17 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20030 |
KR42 |
1 | ||
| 41204-20030 |
CR41,KR4#,SR40 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18020 |
KR42 OD=33.5 |
1 | ||
| 90179-18020 |
CR41,KR4#,SR40 OD=33.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30021 |
CR41,KR4#,SR40 |
1 | ||
| 41214-30021 |
KR42 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-28010 |
CR41,KR4#,SR40 |
4 | ||
| 41222-28010 |
KR42 |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KR42 |
8 | ||
| 90101-11353 |
CR41,KR4#,SR40 |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22020 |
CR41,KR4#,SR40 |
1 | ||
| 41231-22020 |
KR42 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-30010 |
KR42 |
1 | ||
| 41252-30010 |
CR41,KR4#,SR40 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45014 |
KR42 |
2 | ||
| 90368-45014 |
CR41,KR4#,SR40 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45014 |
KR42 |
2 | ||
| 90368-45014 |
CR41,KR4#,SR40 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-30022 |
CR41,KR4#,SR40 |
1 | ||
| 41311-30022 |
KR42 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
KR42 |
2 | ||
| 41315-30010 |
CR41,KR4#,SR40 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
KR42 |
2 | ||
| 41315-30010 |
CR41,KR4#,SR40 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
CR41,KR4#,SR40 SINGLE TYPE |
2 | ||
| 41316-35010 |
KR42 SINGLE TYPE |
2 | ||
| 41317-30010 |
KR42 DOUBLE TYPE |
2 | ||
| 41317-30010 |
CR41,KR4#,SR40 DOUBLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
CR41,KR4#,SR40 SINGLE TYPE |
2 | ||
| 41316-35010 |
KR42 SINGLE TYPE |
2 | ||
| 41317-30010 |
KR42 DOUBLE TYPE |
2 | ||
| 41317-30010 |
CR41,KR4#,SR40 DOUBLE TYPE |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-30011 |
CR41,KR4#,SR40 |
1 | ||
| 41342-30011 |
KR42 |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-06058 |
CR41,KR4#,SR40 |
1 | ||
| 90250-06058 |
KR42 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30032 |
CR41,KR4#,SR40 |
2 | ||
| 41351-30032 |
KR42 |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30032 |
CR41,KR4#,SR40 |
2 | ||
| 41351-30032 |
KR42 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22030 |
CR41,KR4#,SR40 T=1.10,MARK 03 |
2 | ||
| 41361-22160 |
CR41,KR4#,SR40 T=1.15,MARK 16 |
2 | ||
| 41361-22140 |
CR41,KR4#,SR40 T=0.95,MARK 14 |
2 | ||
| 41361-22020 |
CR41,KR4#,SR40 T=1.00,MARK 02 |
2 | ||
| 41361-22150 |
CR41,KR4#,SR40 T=1.05,MARK 15 |
2 | ||
| 41361-22040 |
CR41,KR4#,SR40 T=1.20,MARK 04 |
2 | ||
| 41361-22140 |
KR42 T=0.95,MARK 14 |
2 | ||
| 41361-22150 |
KR42 T=1.05,MARK 15 |
2 | ||
| 41361-22020 |
KR42 T=1.00,MARK 02 |
2 | ||
| 41361-22040 |
KR42 T=1.20,MARK 04 |
2 | ||
| 41361-22030 |
KR42 T=1.10,MARK 03 |
2 | ||
| 41361-22160 |
KR42 T=1.15,MARK 16 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22030 |
CR41,KR4#,SR40 T=1.10,MARK 03 |
2 | ||
| 41361-22160 |
CR41,KR4#,SR40 T=1.15,MARK 16 |
2 | ||
| 41361-22140 |
CR41,KR4#,SR40 T=0.95,MARK 14 |
2 | ||
| 41361-22020 |
CR41,KR4#,SR40 T=1.00,MARK 02 |
2 | ||
| 41361-22150 |
CR41,KR4#,SR40 T=1.05,MARK 15 |
2 | ||
| 41361-22040 |
CR41,KR4#,SR40 T=1.20,MARK 04 |
2 | ||
| 41361-22140 |
KR42 T=0.95,MARK 14 |
2 | ||
| 41361-22150 |
KR42 T=1.05,MARK 15 |
2 | ||
| 41361-22020 |
KR42 T=1.00,MARK 02 |
2 | ||
| 41361-22040 |
KR42 T=1.20,MARK 04 |
2 | ||
| 41361-22030 |
KR42 T=1.10,MARK 03 |
2 | ||
| 41361-22160 |
KR42 T=1.15,MARK 16 |
2 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 91611-B0816 | ||||
| 94512-00800 | ||||

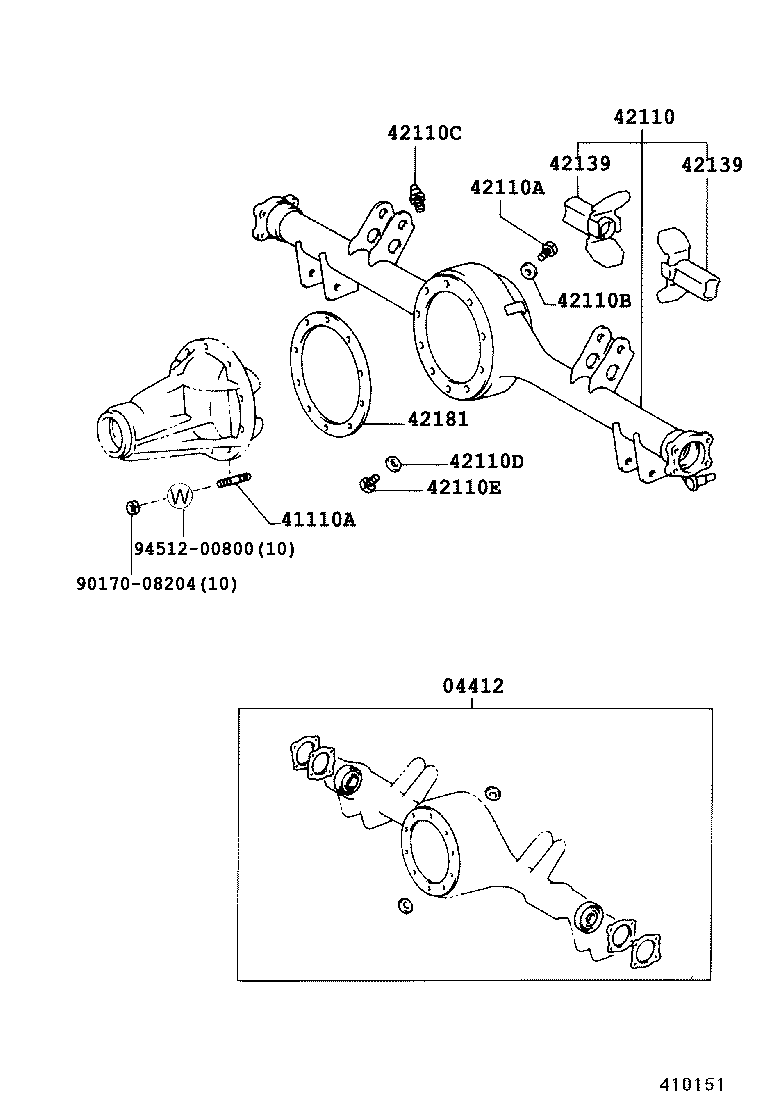

ILLUST NO. 2 OF 2(9611- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-28060 |
KR42..ARL |
1 | ||
| 04412-28070 |
KR42..ARL |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
CR41,KR4#,SR40 S=12 & 15,L=34 |
10 | ||
| 90116-08235 |
KR42 S=12 & 15,L=34 |
10 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-28380 |
CR41,KR4# |
1 | ||
| 42110-28380 |
KR42 |
1 | ||
| 42110-28400 |
KR42..ARL W(ABS) |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
CR4#,KR42,SR40 |
1 | ||
| 90341-18006 |
CR41,KR4#,SR40 |
1 | ||
| 90341-18049 |
KR42 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
CR41,KR4#,SR40 |
1 | ||
| 12157-10010 |
KR42 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
CR41,KR4#,SR40 |
1 | ||
| 90930-03031 |
KR42 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
KR42 |
1 | ||
| 12157-10010 |
CR41,KR4#,SR40 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
CR41,KR4#,SR40 |
1 | ||
| 90341-18057 |
KR42 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-22030 |
CR41,KR4#,SR40 |
2 | ||
| 42108-22030 |
KR42 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-22030 |
CR41,KR4#,SR40 |
2 | ||
| 42108-22030 |
KR42 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-30010 |
KR42 |
1 | ||
| 42181-30010 |
CR41,KR4#,SR40 |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 94512-00800 | ||||
