KR42R-RCSREQ (1998)
Toyota Townace/Liteace
Production
Dec 1998
-
Oct 2003
Engine
7KE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

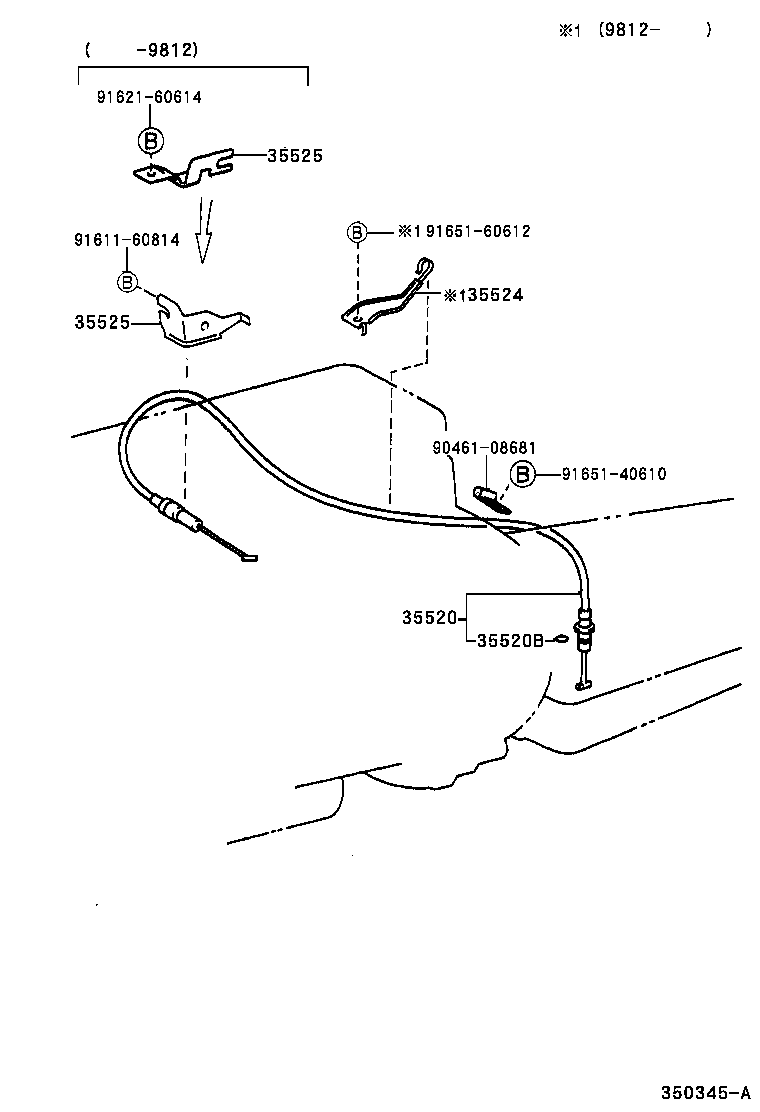

ILLUST NO. 2 OF 2(9611- )KR42..ATM
Click highlighted areas on diagram
A42D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-28110 |
KR42..ATM |
1 | ||
| 35520-38010 |
KR42..ATM |
1 | ||
| 35520-28111 |
KR42..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09012 |
KR42,SR40..ATM |
1 | ||
| 90301-09012 |
KR42,SR40..ATM |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35524-38010 |
KR42..ATM |
1 | ||
| 35525 - BRACKET, THROTTLE CABLE | ||||
| 35525-12060 |
KR42..ATM |
1 | ||
| 35525-38010 |
KR42..ATM |
1 | ||
| 35525 - BRACKET, THROTTLE CABLE | ||||
| 35525-12060 |
KR42..ATM |
1 | ||
| 35525-38010 |
KR42..ATM |
1 | ||
| Common parts | ||||
| 90461-08681 | ||||
| 91611-60814 | ||||
| 91621-60614 | ||||
| 91651-40610 | ||||
| 91651-60612 | ||||

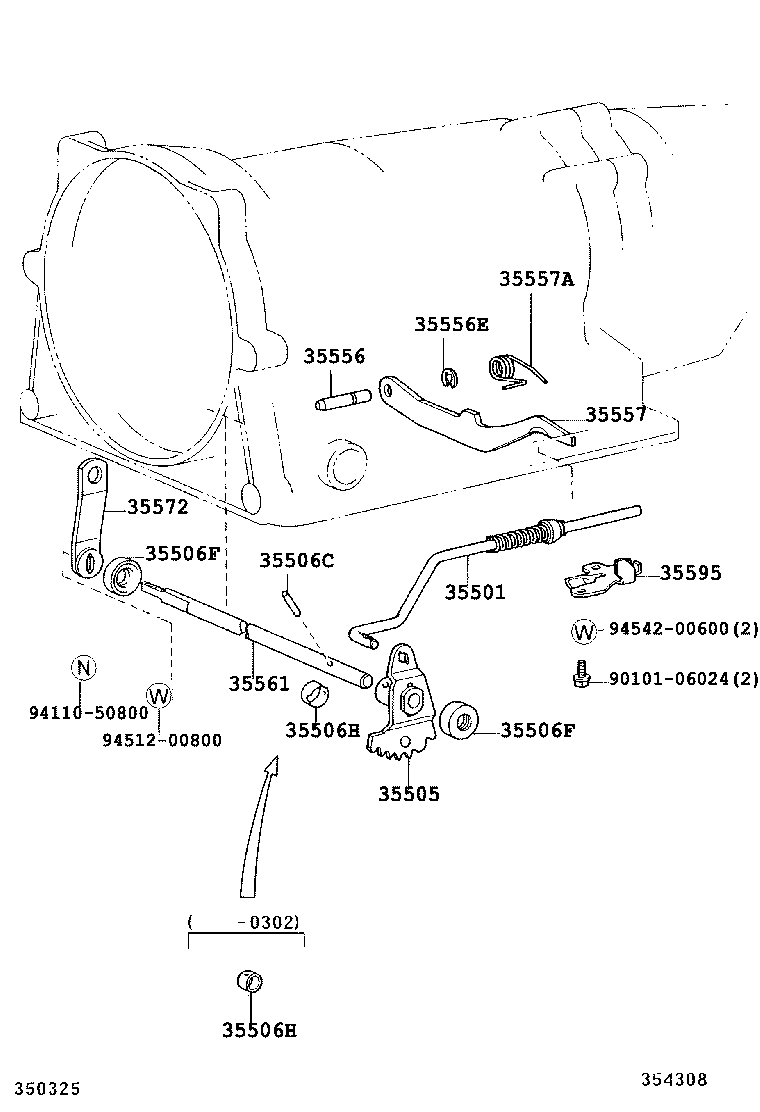

ILLUST NO. 1 OF 2(9611- )ATM
Click highlighted areas on diagram
A42D,A45DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-26020 |
KR42,SR40..ATM |
1 | ||
| 35501-26020 |
KR42,SR40..ATM |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-28010 |
KR42,SR40..ATM |
1 | ||
| 35505-28010 |
KR42,SR40..ATM |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
KR42,SR40..ATM |
1 | ||
| 90254-04011 |
KR42,SR40..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11003 |
KR42,SR40..ATM |
2 | ||
| 90311-11003 |
KR42,SR40..ATM |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11003 |
KR42,SR40..ATM |
2 | ||
| 90311-11003 |
KR42,SR40..ATM |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20025 |
KR42..ATM |
1 | ||
| 90560-20003 |
KR42,SR40..ATM |
1 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20025 |
KR42..ATM |
1 | ||
| 90560-20003 |
KR42,SR40..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-26010 |
KR42,SR40..ATM |
1 | ||
| 35556-26010 |
KR42,SR40..ATM |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
KR42,SR40..ATM |
1 | ||
| 90523-08021 |
KR42,SR40..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-26020 |
KR42,SR40..ATM |
1 | ||
| 35557-26020 |
KR42,SR40..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21001 |
KR42,SR40..ATM |
1 | ||
| 90508-21001 |
KR42,SR40..ATM |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-40010 |
KR42,SR40..ATM |
1 | ||
| 35561-40010 |
KR42,SR40..ATM |
1 | ||
| 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH | ||||
| 35572-28080 |
KR42,SR40..ATM |
1 | ||
| 35572-28080 |
KR42,SR40..ATM |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-40010 |
KR42,SR40..ATM |
1 | ||
| 35595-40010 |
KR42,SR40..ATM |
1 | ||
| Common parts | ||||
| 90101-06024 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94542-00600 | ||||
