KR42R-RCSREQ (1998)

Toyota Townace/Liteace

Production Dec 1998 - Oct 2003
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )ATM

Click highlighted areas on diagram

A42D,A45DL

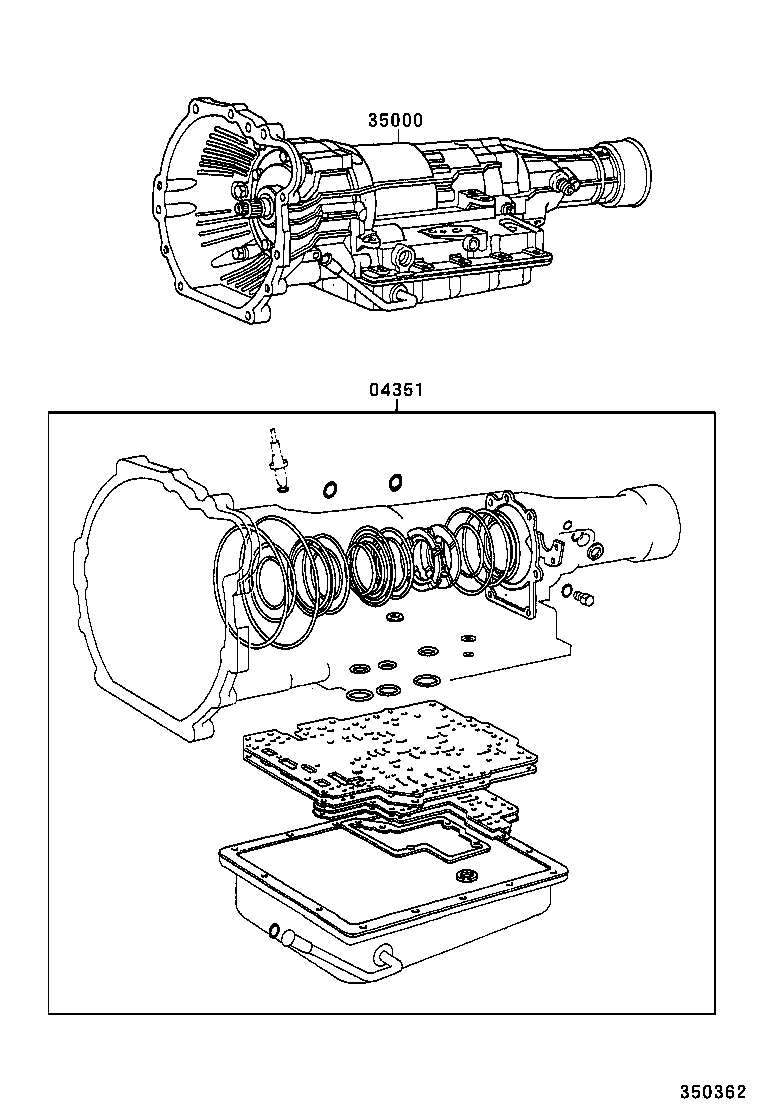

diagram 04351 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-30100

KR42..ATM

 1
04351-30100

KR42..ATM

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-2J060

KR42..ATM

A42D

 1
35000-28640

KR42..ATM

 1
35000-2J051

KR42..ATM

A42D,W(ABS)

 1
35000-2J061

KR42..ATM

A42D

 1
35000-2J050

KR42..ATM

A42D,W(ABS)

 1
