KR42R-RCSREQ (1998)

Toyota Townace/Liteace

Production Dec 1998 - Oct 2003
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )7K..ARL

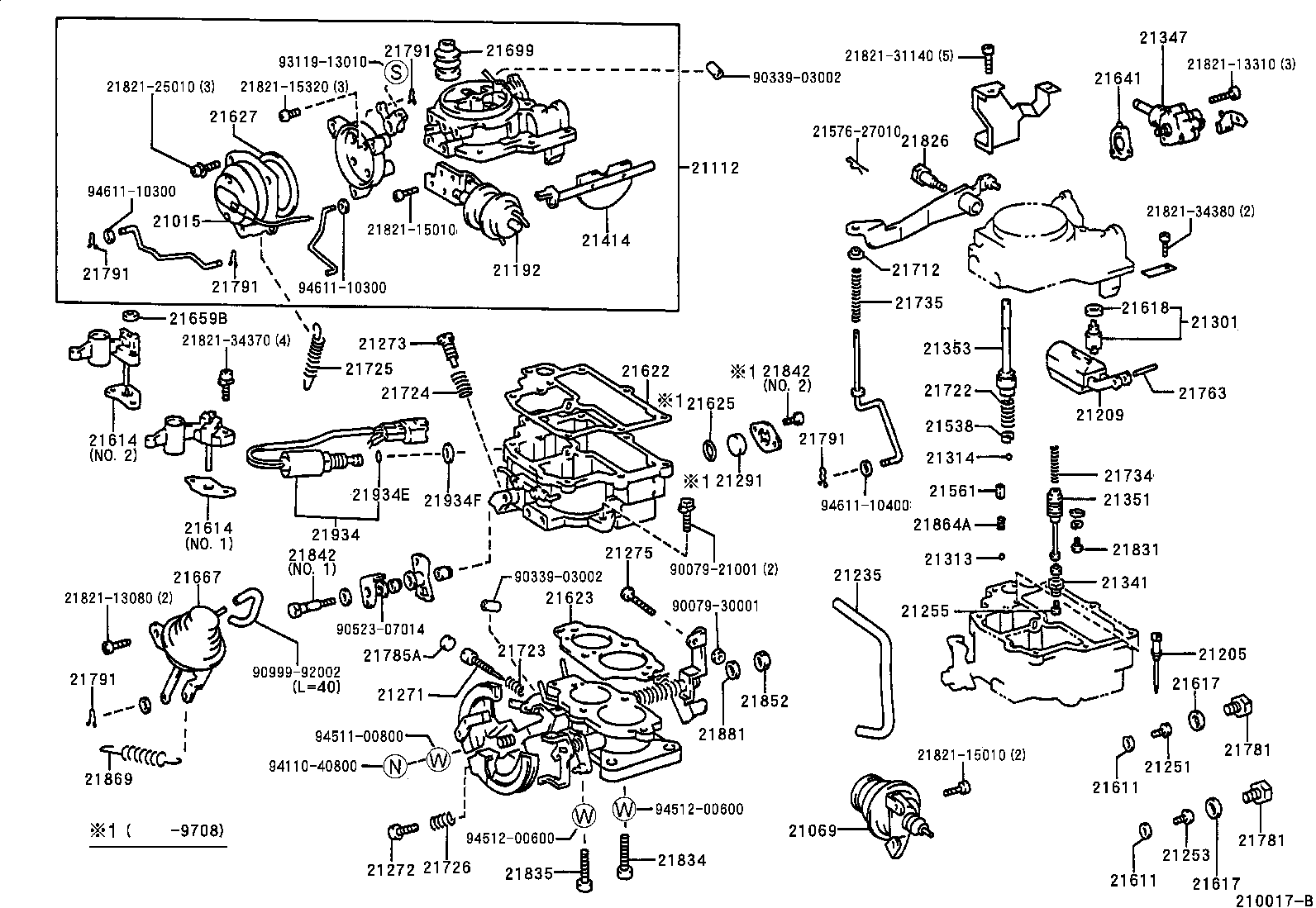

Click highlighted areas on diagram

diagram 21015 21069 21112 21192 21205 21209 21235 21251 21253 21255 21271 21272 21273 21275 21291 21301 21313 21314 21341 21347 21351 21353 21414 21538 21561 2157627010 21611 21611 21614 21614 21617 21617 21618 21622 21623 21625 21627 21641 21659B 21667 21699 21712 21722 21723 21724 21725 21726 21734 21735 21763 21781 21781 21785A 21791 21791 21791 21791 21791 2182113080 2182113310 2182115010 2182115010 2182115320 2182125010 2182131140 2182134370 2182134380 21826 21831 21834 21835 21842 21842 21852 21864A 21869 21881 21934 21934E 21934F 9007921001 9007930001 9033903002 9033903002 9052307014 9099992002 9311913010 9411040800 9451100800 9451200600 9451200600 9461110300 9461110300 9461110400
Part # Description Qty Price
21015 - HOUSING SUB-ASSY, COIL
21015-1E040

7K..KR42..ARL

 1
21069 - DASH POT SUB-ASSY
21069-1E050

7K..KR42..ATM

 1
21112 - HORN, AIR
21112-1E060

7K..KR42..ARL

 1
21192 - BREAKER
21192-13790

7K..KR42..ARL

 1
21205 - JET SUB-ASSY, SLOW
21205-13890

7K..KR42

 1
21209 - FLOAT SUB-ASSY
21209-13310

5K,7K..KR4#

 1
21235 - PIPE OR HOSE, CONNECTING
21235-13890

7K..KR42..ARL

 1
21251 - JET, 1ST MAIN
90999-41116

7K..KR42..ARL

 1
21253 - JET, 2ND MAIN
90999-42171

5K..KR41;7K..KR42..ARL

 1
21255 - JET, POWER
90999-43100

5K,7K..KR4#

 1
21271 - SCREW, IDLE ADJUSTING
21271-1E060

7K..KR42..ARL

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21814-33010

7K..KR42..ARL

 1
21273 - SCREW, THROTTLE ADJUSTING
21273-24231

5K,7K..KR4#

 1
21275 - SCREW, ADJUSTING
21275-11630

7K..KR42..ATM

 1
21291 - GLASS, LEVEL GAGE
21291-34320

7K..KR42..ARL

 1
21301 - VALVE SUB-ASSY, NEEDLE
21301-13310

5K,7K..KR4#

 1
21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21313-11020

5K,7K..KR4#

 1
21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314-60010

5K,7K..KR4#

 1
21341 - VALVE, POWER
21304-30010

5K,7K..KR4#

 1
21347 - VALVE, SOLENOID
21347-13770

7K..KR42

 1
21351 - PISTON, POWER
21351-24230

5K,7K..KR4#

 1
21353 - PLUNGER, PUMP
21353-15370

7K..KR42

 1
21414 - SHAFT, CHOKE
21054-13391

7K..KR42..ARL

 1
21538 - RETAINER, BALL CHECK
21538-31010

5K,7K..KR4#

 1
21561 - WEIGHT, PUMP DISCHARGE
21575-11730

5K,7K..KR4#

 1
21611 - GASKET, MAIN JET
21611-22010

5K,7K..KR4#

 2
21611 - GASKET, MAIN JET
21611-22010

5K,7K..KR4#

 2
21614 - GASKET, VENTURI
21614-13430

5K,7K..KR4#

NO.1

 1
21614-24580

5K,7K..KR4#

NO.2

 1
21614 - GASKET, VENTURI
21614-13430

5K,7K..KR4#

NO.1

 1
21614-24580

5K,7K..KR4#

NO.2

 1
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

5K,7K..KR4#

 2
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

5K,7K..KR4#

 2
21618 - GASKET, NEEDLE VALVE SEAT
21618-14010

5K,7K..KR4#

 1
21622 - GASKET, AIR HORN
21622-13430

5K,7K..KR4#

 1
21623 - GASKET, BODY FLANGE
21623-13430

5K,7K..KR4#

 1
21625 - GASKET, LEVEL GAGE
21655-60200

7K..KR42..ARL

 1
21627 - GASKET, COIL HOUSING
21627-28090

7K..KR42..ARL

 1
21641 - GASKET(FOR THERMOSTATIC VALVE COVER)
21641-13311

7K..KR42

 1
21659B - RING(FOR CARBURETOR)
21659-13360

7K..KR42..ARL

 1
21667 - DIAPHRAGM
21667-1E050

7K..KR42..ATM

 1
21699 - BOOT(FOR PUMP PLUNGER)
21699-28150

5K..KR41;7K..KR42..ARL

 1
21712 - BUSH, SLIDING ROD
21712-38010

5K,7K..KR4#

 1
21722 - SPRING, PUMP DAMPING
21722-22010

5K,7K..KR4#

 1
21723 - SPRING, IDLE ADJUSTING
21723-15160

7K..KR42..ARL

 1
21724 - SPRING, THROTTLE ADJUSTING
21864-24230

5K,7K..KR4#

 1
21725 - SPRING, 2ND THROTTLE BACK
21725-11610

7K..KR42..ARL

 1
21726 - SPRING, 1ST IDLE ADJUSTING
21726-40010

7K..KR42..ARL

 1
21734 - SPRING, POWER PISTON
21734-33081

7K..KR42

 1
21735 - SPRING, PUMP ARM
21735-22010

7K..KR42

 1
21763 - PIN, FLOAT LEVER
21763-38010

5K,7K..KR4#

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-15230

5K,7K..KR4#

 2
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-15230

5K,7K..KR4#

 2
21785A - PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING)
21785-13210

7K..KR42..ARL

 1
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-13010

5K..KR41;7K..KR42..ARL

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-13010

5K..KR41;7K..KR42..ARL

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-13010

5K..KR41;7K..KR42..ARL

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-13010

5K..KR41;7K..KR42..ARL

 6
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-13010

5K..KR41;7K..KR42..ARL

 6
21826 - SCREW, PUMP ARM SET
21826-24470

7K..KR42

 1
21831 - SCREW, POWER PISTON STOP
21821-15060

5K,7K..KR4#

 1
21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21834-31010

5K,7K..KR4#

 1
21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET)
21835-40010

5K,7K..KR4#

 1
21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21842-13790

7K..KR42..ARL

NO.1

 1
21842-33010

7K..KR42..ARL

NO.2

 2
21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21842-13790

7K..KR42..ARL

NO.1

 1
21842-33010

7K..KR42..ARL

NO.2

 2
21852 - NUT, THROTTLE LEVER SET
21852-30010

5K,7K..KR4#

 1
21864A - SPRING(FOR PUMP DISCHARGE WEIGHT)
21864-13870

7K..KR42

 1
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

5K,7K..KR4#

 1
21934 - SOLENOID, THROTTLE VALVE
21062-1E040

7K..KR42..ARL

 1
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101

5K,7K..KR4#

 1
21934F - GASKET
21649-38010

5K,7K..KR4#

 1
Common parts
21576-27010
21821-13080
21821-13310
21821-15010
21821-15320
21821-25010
21821-31140
21821-34370
21821-34380
90079-21001
90079-30001
90339-03002
90523-07014
90999-92002
93119-13010
94110-40800
94511-00800
94512-00600
94611-10300
94611-10400
