KR42R-RCSREQ (1998)
Toyota Townace/Liteace
ILLUST NO. 2 OF 2(9611- )5K,7K#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-13630 |
7K..KR42..ATM |
1 | ||
| 16400-13630 |
7K..KR42..ATM |
1 | ||
| 16400-13610 |
7KE..KR42..ATM |
1 | ||
| 16400-13610 |
7KE..KR42..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
7KE..KR42 |
1 | ||
| 23322-54010 |
7KE..KR42 |
1 | ||
| 23322-54010 |
5K,7K..KR4# |
1 | ||
| 23322-54010 |
5K,7K..KR4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
7KE..KR42 |
1 | ||
| 96711-19007 |
7KE..KR42 |
1 | ||
| 96711-19007 |
5K,7K..KR4# |
1 | ||
| 96711-19007 |
5K,7K..KR4# |
1 | ||
| 16492-21050 |
7KE..KR42 |
1 | ||
| 16492-21050 |
7KE..KR42 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
5K,7K..KR4# |
1 | ||
| 16401-72090 |
5K,7K..KR4# |
1 | ||
| 16401-72090 |
7KE..KR42 |
1 | ||
| 16401-72090 |
7KE..KR42 |
1 | ||

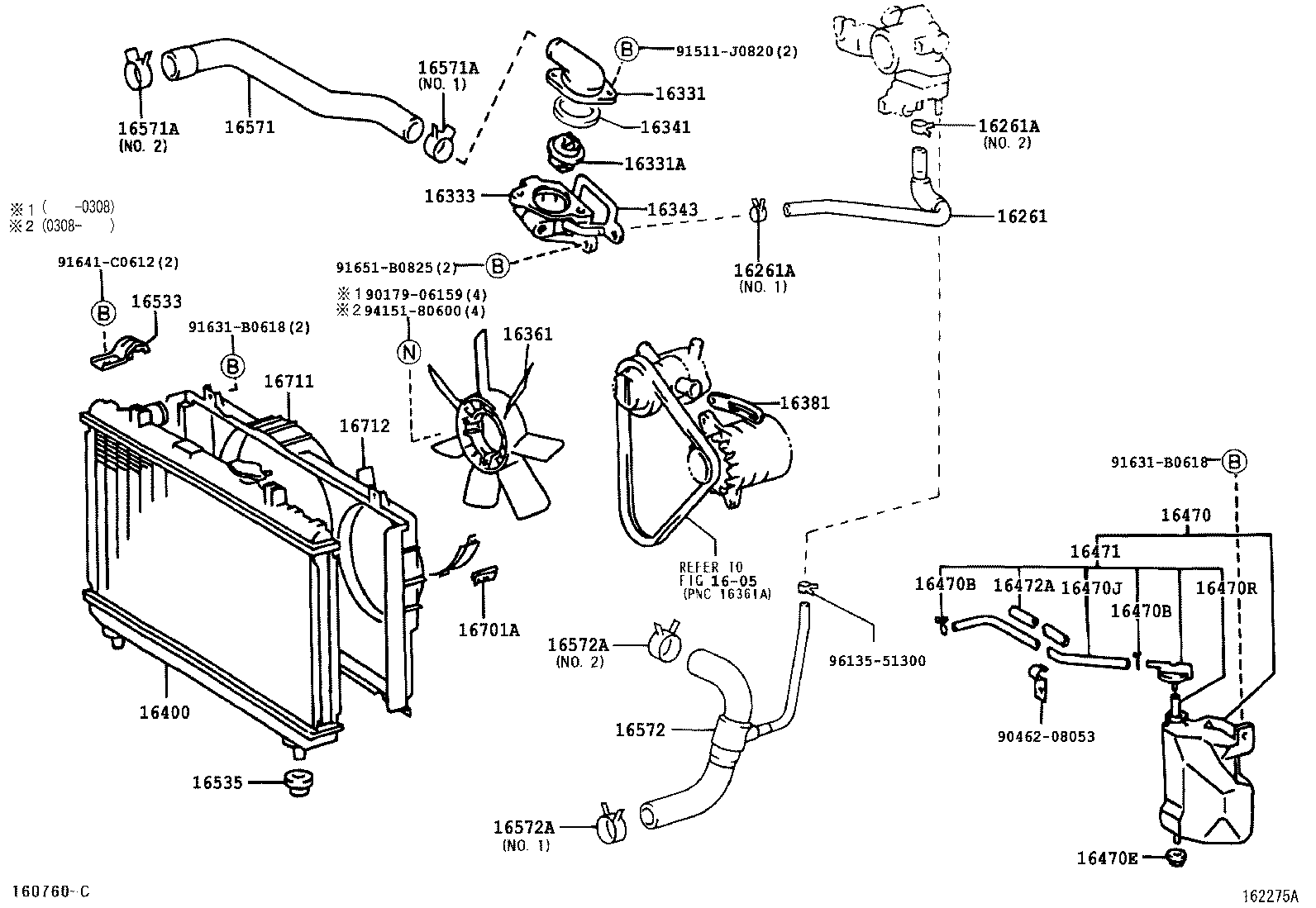

ILLUST NO. 1 OF 2(9812- )7KE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-13120 |
7KE..KR42 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51100 |
7KE..KR42 NO.1 |
1 | ||
| 90467-13001 |
7KE..KR42 NO.2 |
1 | ||
| 96135-51300 |
7KE..KR42 NO.2 |
1 | ||
| 90467-11009 |
7KE..KR42 NO.1 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51100 |
7KE..KR42 NO.1 |
1 | ||
| 90467-13001 |
7KE..KR42 NO.2 |
1 | ||
| 96135-51300 |
7KE..KR42 NO.2 |
1 | ||
| 90467-11009 |
7KE..KR42 NO.1 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-13090 |
5K,7K..KR4# |
1 | ||
| 16331-13100 |
7KE..KR42 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03083 |
7KE..KR42 *WAX 82-95 |
1 | ||
| 90916-03083 |
5K,7K..KR4# *WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-13210 |
7KE..KR42 |
1 | ||
| 16333-13180 |
7K..KR42 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
7KE..KR42 |
1 | ||
| 16341-35010 |
7K..KR42 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-13030 |
7K..KR42 |
1 | ||
| 16343-06010 |
7KE..KR42 (L) |
1 | ||
| 16343-13040 |
7KE..KR42 (J) |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
5K,7K..KR4# |
1 | ||
| 16361-38010 |
7KE..KR42 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-13060 |
7K..KR42 |
1 | ||
| 16381-13060 |
7KE..KR42 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-13630 |
7K..KR42..ATM |
1 | ||
| 16400-13610 |
7KE..KR42..ATM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-64220 |
7KE..KR42 |
1 | ||
| 16470-64220 |
5K,7K..KR4# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
7KE..KR42 |
2 | ||
| 90467-11085 |
5K,7K..KR4# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
7KE..KR42 |
2 | ||
| 90467-11085 |
5K,7K..KR4# |
2 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-20014 |
5K,7K..KR4# |
1 | ||
| 90480-20014 |
7KE..KR42 |
1 | ||
| 16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33534 |
5K,7K..KR4# L=640 |
1 | ||
| 90099-33534 |
7KE..KR42 L=640 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
7KE..KR42 *H,L=215 |
1 | ||
| 90445-12078 |
5K,7K..KR4# *H,L=215 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-64060 |
7KE..KR42 |
1 | ||
| 16471-64060 |
5K,7K..KR4# |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 16479-64220 |
7KE..KR42 |
1 | ||
| 16479-64220 |
5K,7K..KR4# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-64010 |
5K,7K..KR4# |
2 | ||
| 16505-64010 |
7KE..KR42 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40016 |
5K,7K..KR4# |
2 | ||
| 90480-40016 |
7KE..KR42 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-13290 |
5K,7K..KR4# |
1 | ||
| 16571-13290 |
7KE..KR42 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31001 |
5K,7K..KR4# NO.1 |
1 | ||
| 90467-34001 |
5K,7K..KR4# NO.2 |
1 | ||
| 90467-31003 |
7KE..KR42 NO.1 |
1 | ||
| 90467-34004 |
7KE..KR42 NO.2 |
1 | ||
| 90466-30001 |
7KE..KR42 NO.1 |
1 | ||
| 90467-31001 |
7KE..KR42 NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31001 |
5K,7K..KR4# NO.1 |
1 | ||
| 90467-34001 |
5K,7K..KR4# NO.2 |
1 | ||
| 90467-31003 |
7KE..KR42 NO.1 |
1 | ||
| 90467-34004 |
7KE..KR42 NO.2 |
1 | ||
| 90466-30001 |
7KE..KR42 NO.1 |
1 | ||
| 90467-31001 |
7KE..KR42 NO.1 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-13280 |
5K,7K..KR4# |
1 | ||
| 16572-13290 |
7KE..KR42 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
5K,7K..KR4# |
2 | ||
| 90467-37005 |
7KE..KR42 NO.1 |
1 | ||
| 90466-38001 |
7KE..KR42 NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
5K,7K..KR4# |
2 | ||
| 90467-37005 |
7KE..KR42 NO.1 |
1 | ||
| 90466-38001 |
7KE..KR42 NO.2 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
7KE..KR42 |
2 | ||
| 90468-06013 |
5K,7K..KR4# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-13350 |
5K,7K..KR4# |
1 | ||
| 16711-13360 |
7KE..KR42 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-13150 |
5K,7K..KR4# |
1 | ||
| 16712-13150 |
7KE..KR42 |
1 | ||
| Common parts | ||||
| 90179-06159 | ||||
| 90462-08053 | ||||
| 91511-J0820 | ||||
| 91631-B0618 | ||||
| 91641-C0612 | ||||
| 91651-B0825 | ||||
| 94151-80600 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 1605 | ||||
