KR42R-RCSREQ (1998)

Toyota Townace/Liteace

Production Dec 1998 - Oct 2003
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )5K,7K#

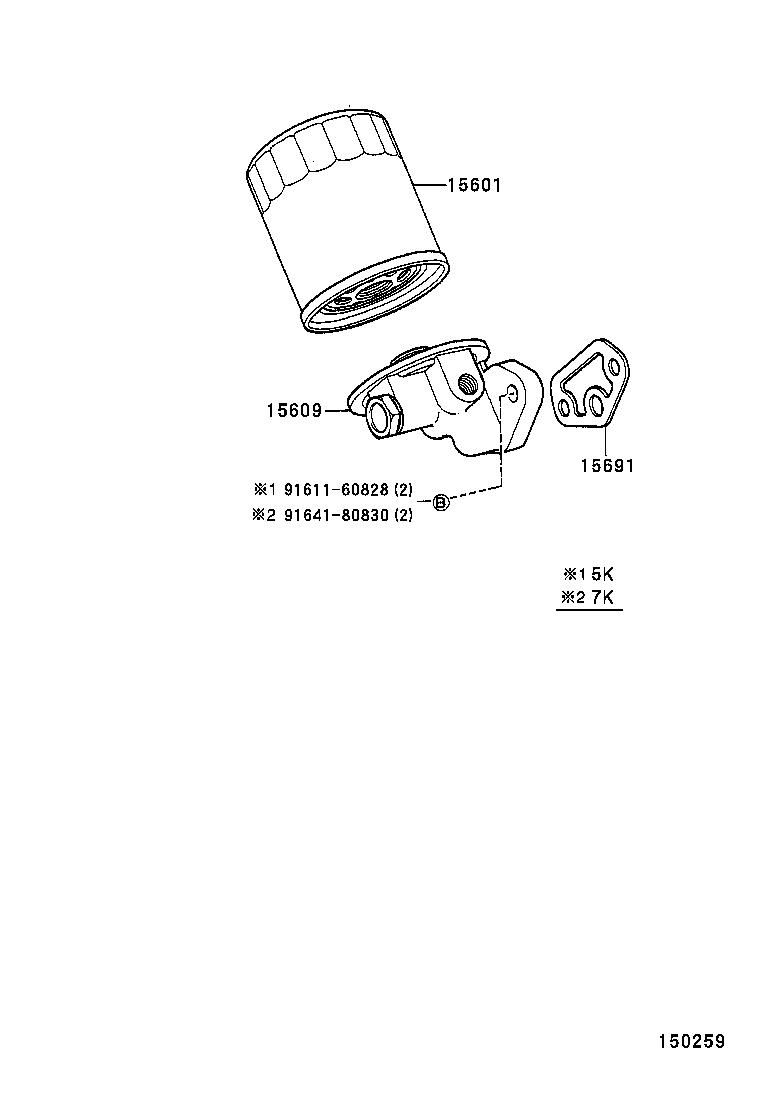

Click highlighted areas on diagram

diagram 15601 15609 15691 9161160828 9164180830
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-10002

7KE..KR42..ARL

 1
90915-10002

7K..KR42..ARL

 1
90915-10004

7KE..KR42..ARL

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15677-13030

7KE..KR42

 1
15677-13030

7K..KR42

 1
15691 - GASKET, OIL FILTER
15691-13030

7K..KR42

 1
15691-06010

7KE..KR42

 1
Common parts
91611-60828
91641-80830
