KR42R-RCSREQ (1998)
Toyota Townace/Liteace
(9611- )7K#

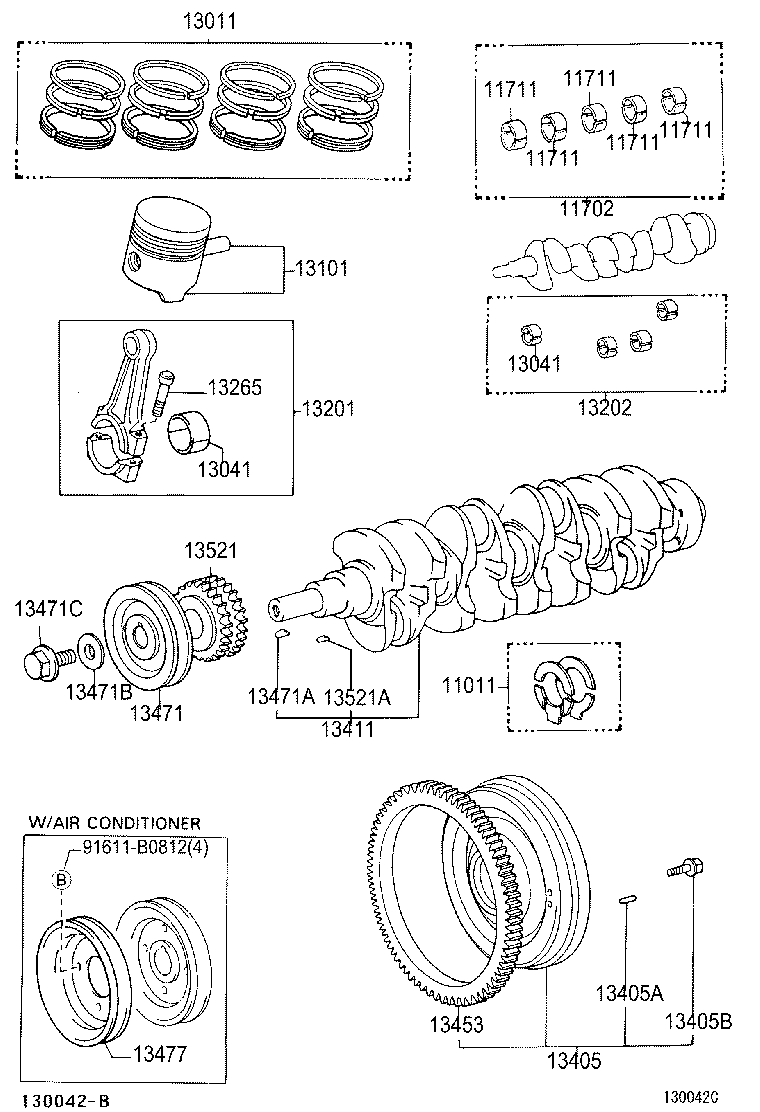

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-11010 |
5K,7K..KR4# STD |
1 | ||
| 11012-11010 |
7KE..KR42 O/S 0.125,(J) |
1 | ||
| 11011-11010 |
7KE..KR42 STD,(J) |
1 | ||
| 11012-11010 |
7KE..KR42 O/S 0.125 |
1 | ||
| 11012-11010 |
7K..KR42 O/S 0.125 |
1 | ||
| 11011-06010 |
7KE..KR42 STD,(L) |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11705-13011 |
7KE..KR42 U/S 0.50 |
1 | ||
| 11705-13011 |
5K,7K..KR4# U/S 0.50 |
1 | ||
| 11704-13011 |
5K,7K..KR4# U/S 0.25 |
1 | ||
| 11704-13011 |
7KE..KR42 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301103 |
5K,7K..KR4# MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-1301104 |
5K,7K..KR4# MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-1301105 |
5K,7K..KR4# MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-1301107 |
5K,7K..KR4# MARK 7,REFER REPAIR MANUAL |
5 | ||
| 11701-1301106 |
5K,7K..KR4# MARK 6,REFER REPAIR MANUAL |
5 | ||
| 11701-1301105 |
7KE..KR42 MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-1301106 |
7KE..KR42 MARK 6,REFER REPAIR MANUAL |
5 | ||
| 11701-1301107 |
7KE..KR42 MARK 7,REFER REPAIR MANUAL |
5 | ||
| 11701-1301103 |
7KE..KR42 MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-1301104 |
7KE..KR42 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301103 |
5K,7K..KR4# MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-1301104 |
5K,7K..KR4# MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-1301105 |
5K,7K..KR4# MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-1301107 |
5K,7K..KR4# MARK 7,REFER REPAIR MANUAL |
5 | ||
| 11701-1301106 |
5K,7K..KR4# MARK 6,REFER REPAIR MANUAL |
5 | ||
| 11701-1301105 |
7KE..KR42 MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-1301106 |
7KE..KR42 MARK 6,REFER REPAIR MANUAL |
5 | ||
| 11701-1301107 |
7KE..KR42 MARK 7,REFER REPAIR MANUAL |
5 | ||
| 11701-1301103 |
7KE..KR42 MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-1301104 |
7KE..KR42 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301103 |
5K,7K..KR4# MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-1301104 |
5K,7K..KR4# MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-1301105 |
5K,7K..KR4# MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-1301107 |
5K,7K..KR4# MARK 7,REFER REPAIR MANUAL |
5 | ||
| 11701-1301106 |
5K,7K..KR4# MARK 6,REFER REPAIR MANUAL |
5 | ||
| 11701-1301105 |
7KE..KR42 MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-1301106 |
7KE..KR42 MARK 6,REFER REPAIR MANUAL |
5 | ||
| 11701-1301107 |
7KE..KR42 MARK 7,REFER REPAIR MANUAL |
5 | ||
| 11701-1301103 |
7KE..KR42 MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-1301104 |
7KE..KR42 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301103 |
5K,7K..KR4# MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-1301104 |
5K,7K..KR4# MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-1301105 |
5K,7K..KR4# MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-1301107 |
5K,7K..KR4# MARK 7,REFER REPAIR MANUAL |
5 | ||
| 11701-1301106 |
5K,7K..KR4# MARK 6,REFER REPAIR MANUAL |
5 | ||
| 11701-1301105 |
7KE..KR42 MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-1301106 |
7KE..KR42 MARK 6,REFER REPAIR MANUAL |
5 | ||
| 11701-1301107 |
7KE..KR42 MARK 7,REFER REPAIR MANUAL |
5 | ||
| 11701-1301103 |
7KE..KR42 MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-1301104 |
7KE..KR42 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1301103 |
5K,7K..KR4# MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-1301104 |
5K,7K..KR4# MARK 4,REFER REPAIR MANUAL |
5 | ||
| 11701-1301105 |
5K,7K..KR4# MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-1301107 |
5K,7K..KR4# MARK 7,REFER REPAIR MANUAL |
5 | ||
| 11701-1301106 |
5K,7K..KR4# MARK 6,REFER REPAIR MANUAL |
5 | ||
| 11701-1301105 |
7KE..KR42 MARK 5,REFER REPAIR MANUAL |
5 | ||
| 11701-1301106 |
7KE..KR42 MARK 6,REFER REPAIR MANUAL |
5 | ||
| 11701-1301107 |
7KE..KR42 MARK 7,REFER REPAIR MANUAL |
5 | ||
| 11701-1301103 |
7KE..KR42 MARK 3,REFER REPAIR MANUAL |
5 | ||
| 11701-1301104 |
7KE..KR42 MARK 4,REFER REPAIR MANUAL |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-13100 |
7K..KR42 STD |
1 | ||
| 13013-13100 |
7K..KR42 O/S 0.50 |
1 | ||
| 13013-13110 |
7KE..KR42..ARL O/S 0.50 |
1 | ||
| 13011-13110 |
7KE..KR42..ARL STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1609002 |
7K..KR42 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-1609003 |
7K..KR42 MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13041-1609002 |
7KE..KR42 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-1609001 |
7K..KR42 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-1609001 |
7KE..KR42 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-1609003 |
7KE..KR42 MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1609002 |
7K..KR42 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-1609003 |
7K..KR42 MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13041-1609002 |
7KE..KR42 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-1609001 |
7K..KR42 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-1609001 |
7KE..KR42 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-1609003 |
7KE..KR42 MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-0603002 |
7K..KR42 STD,MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13101-0603003 |
7K..KR42 STD,MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13101-0603001 |
7K..KR42 STD,MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13103-06030 |
7K..KR42 O/S 0.50 |
4 | ||
| 13101-0605001 |
7KE..KR42 STD,MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13101-0605002 |
7KE..KR42 STD,MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13103-13070 |
7KE..KR42 O/S 0.50 |
4 | ||
| 13101-0605003 |
7KE..KR42 STD,MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-19145 |
7K..KR42 |
4 | ||
| 13201-19145 |
7KE..KR42 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-16090 |
7K..KR42 U/S 0.50 |
1 | ||
| 13204-16090 |
7KE..KR42 U/S 0.25 |
1 | ||
| 13206-16090 |
7K..KR42 U/S 0.75 |
1 | ||
| 13205-16090 |
7KE..KR42 U/S 0.50 |
1 | ||
| 13206-16090 |
7KE..KR42 U/S 0.75 |
1 | ||
| 13204-16090 |
7K..KR42 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-16050 |
7KE..KR42 |
8 | ||
| 13265-16050 |
7K..KR42 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-06900 |
7K..KR42 |
1 | ||
| 13411-06900 |
7KE..KR42 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-13010 |
7KE..KR42 |
1 | ||
| 13408-13010 |
5K,7K..KR4# |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05005 |
7KE..KR42 |
1 | ||
| 90280-05005 |
5K,7K..KR4# |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90209-13003 |
7KE..KR42 |
1 | ||
| 90209-13003 |
5K,7K..KR4# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12051 |
7KE..KR42 |
1 | ||
| 90105-12051 |
5K,7K..KR4# |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-27020 |
5K,7K..KR4# |
1 | ||
| 88451-27020 |
7KE..KR42 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-06010 |
7K..KR42 |
1 | ||
| 13521-06010 |
7KE..KR42 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05005 |
5K,7K..KR4# |
1 | ||
| 90280-05005 |
7KE..KR42 |
1 | ||
| Common parts | ||||
| 91611-B0812 | ||||
