KR42R-RCSREQ (1998)

Toyota Townace/Liteace

Production Dec 1998 - Oct 2003
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )5K,7K#

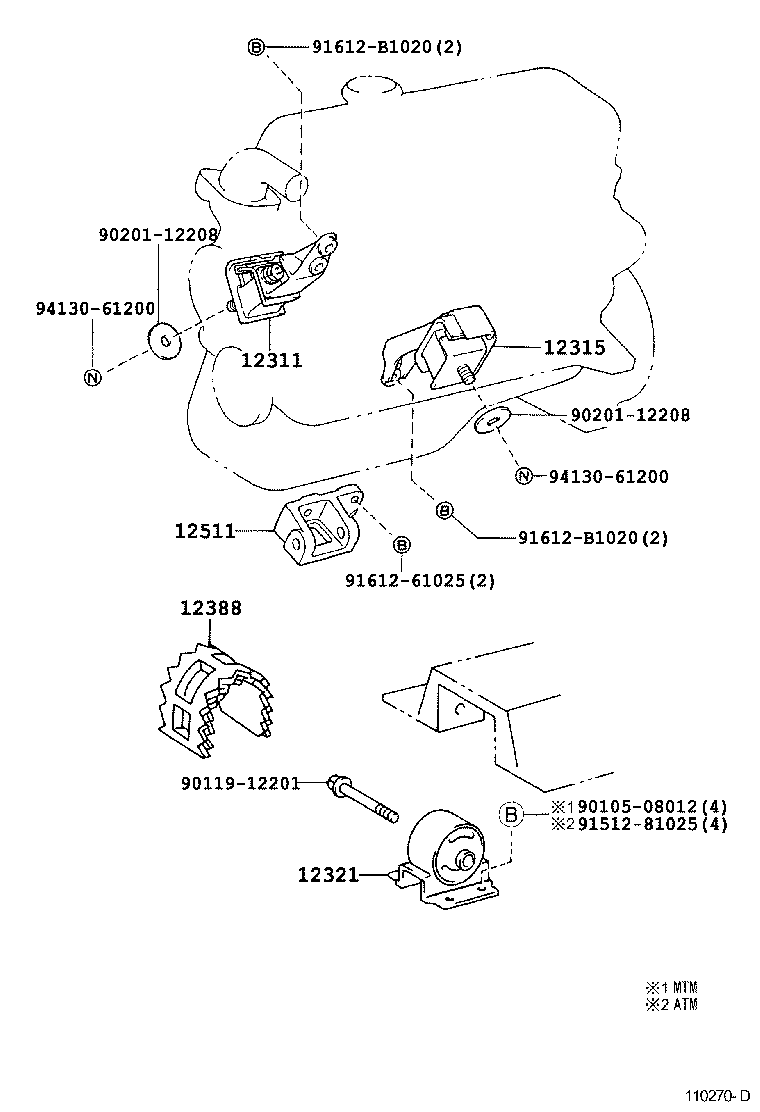

Click highlighted areas on diagram

diagram 12311 12315 12321 12388 12511 9010508012 9011912201 9020112208 9020112208 9151281025 9161261025 91612B1020 91612B1020 9413061200 9413061200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-13160

7KE..KR42

 1
12301-13151

5K,7K..KR4#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-13150

7K..KR42

 1
12302-13180

7KE..KR42

 1
12302-13171

7KE..KR42

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-64121

7K..KR42..ATM

 1
12303-64121

7KE..KR42..ATM

 1
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-67011

5K,7K..KR4#

 1
12388-67011

7KE..KR42

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-13030

7K..KR42

 1
12511-13030

7KE..KR42

 1
Common parts
90105-08012
90119-12201
90201-12208
91512-81025
91612-61025
91612-B1020
94130-61200
