KR42R-RCSREQ (1998)

Toyota Townace/Liteace

Production Dec 1998 - Oct 2003
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )5K,7K#

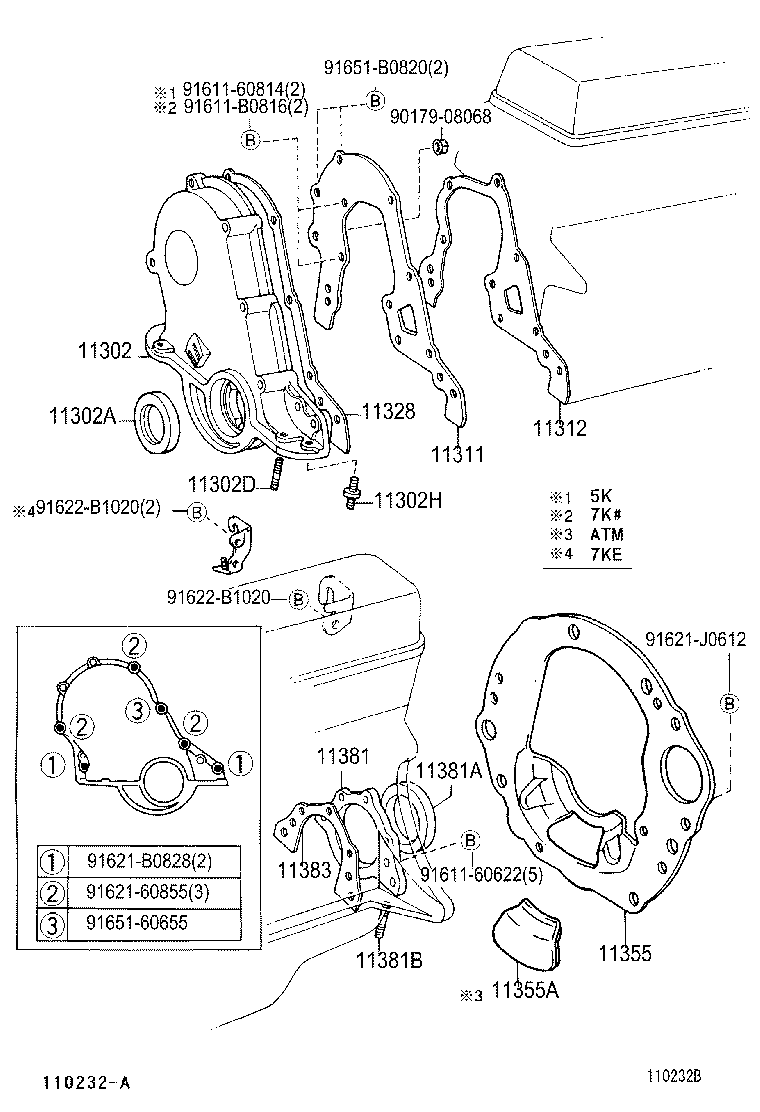

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11302H 11311 11312 11328 11355 11355A 11381 11381A 11381B 11383 9017908068 9161160622 9161160814 91611B0816 9162160855 91621B0828 91621J0612 91622B1020 91622B1020 9165160655 91651B0820
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-13042

5K,7K..KR4#

 1
11321-13042

7KE..KR42

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38053

7K..KR42

 1
90311-38053

7KE..KR42

 1
90311-38086

7KE..KR42

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90109-06291

7K..KR42

 2
90109-06291

7KE..KR42

 2
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90109-06291

7KE..KR42

 2
90109-06291

7K..KR42

 2
11311 - PLATE, FRONT END
11311-13010

5K,7K..KR4#

 1
11311-13010

7KE..KR42

 1
11312 - GASKET, FRONT END PLATE
11312-06010

7KE..KR42

 1
11312-13050

5K,7K..KR4#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-13030

5K,7K..KR4#

 1
11328-06010

7KE..KR42

 1
11355 - PLATE, REAR END
11355-06020

7K..KR42..ATM

 1
11355-06020

7KE..KR42..ATM

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01343

7KE..KR42..ATM

 1
90950-01343

7K..KR42..ATM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-13011

5K,7K..KR4#

 1
11381-13011

7KE..KR42

 1
11381A - SEAL, ENGINE REAR OIL
90311-70007

7KE..KR42

 1
90311-70007

7K..KR42

 1
90311-70012

7KE..KR42

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90109-06291

7K..KR42

 2
90109-06291

7KE..KR42

 2
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-13010

7KE..KR42

 1
11383-13010

5K,7K..KR4#

 1
Common parts
90179-08068
91611-60622
91611-60814
91611-B0816
91621-60855
91621-B0828
91621-J0612
91622-B1020
91651-60655
91651-B0820
