KR42R-RCSREQ (1998)

Toyota Townace/Liteace

Production Dec 1998 - Oct 2003
Engine 7KE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )

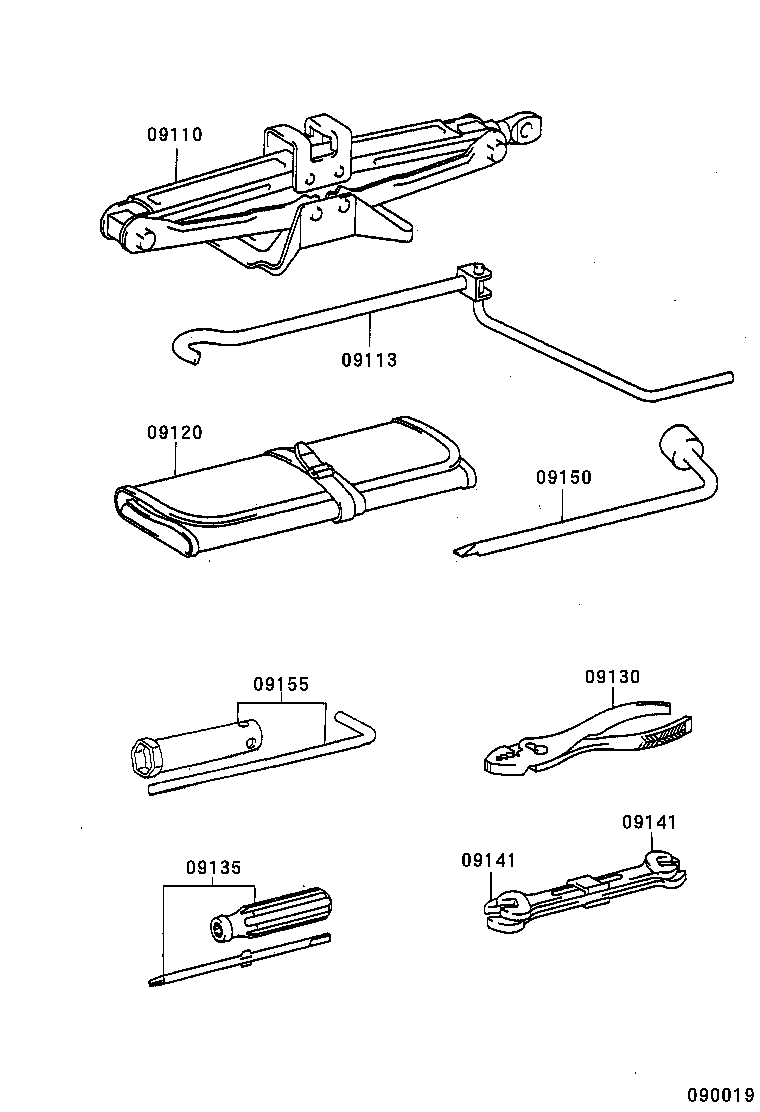

Click highlighted areas on diagram

diagram 09110 09113 09120 09130 09135 09141 09141 09150 09155
Part # Description Qty Price
09110 - JACK ASSY
09110-28100

KR42,SR40..ARL

 1
09110-28100

KR42,SR40..ARL

 1
09113 - HANDLE, JACK
09113-44010

CR41,KR4#,SR40

 1
09113-44010

KR42

 1
09120 - BAG, TOOL
09120-30030

CR41,KR4#,SR40

 1
09120-30030

KR42

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

KR42

 1
09150-40010

CR41,KR4#,SR40

 1
09155 - WRENCH, SPARK PLUG
09155-44010

KR4#

 1
09155-44010

KR42

 1
