KR42R-RCMRSQ (1996)

Toyota Townace/Liteace

Production Nov 1996 - Dec 1998
Engine 7K
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )KR4#..MTM

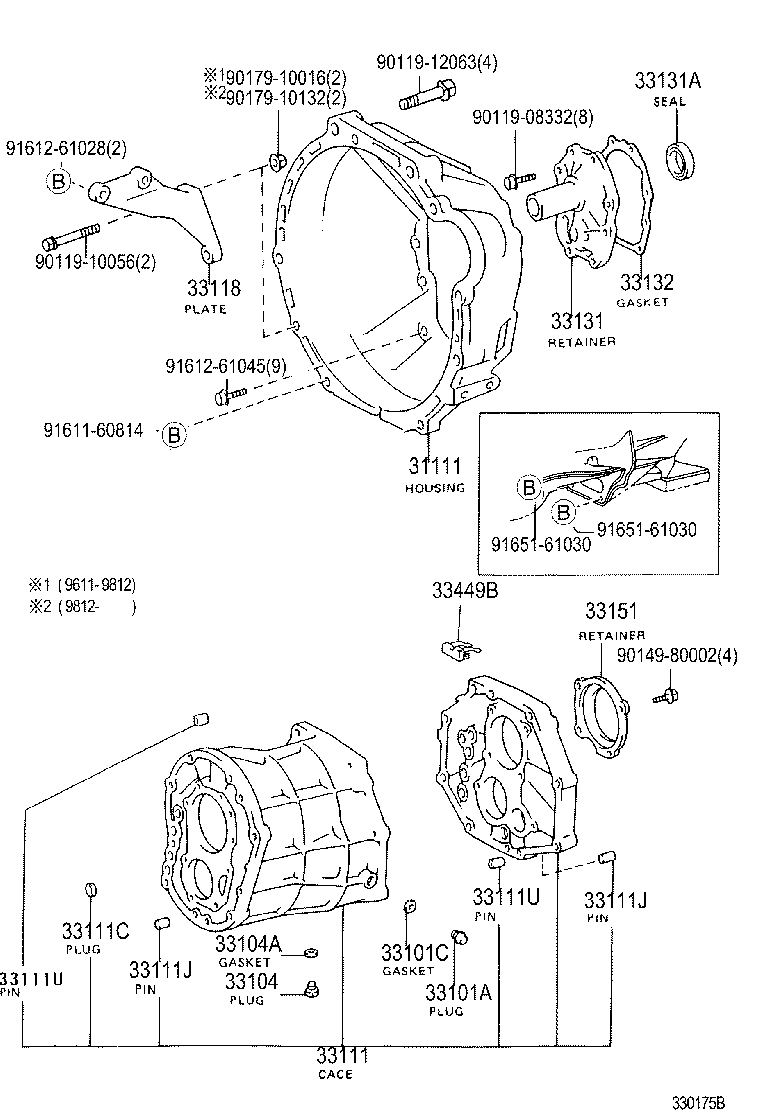

Click highlighted areas on diagram

G52

diagram 31111 33101A 33101C 33104 33104A 33111 33111C 33111J 33111J 33111U 33118 33131 33131A 33132 33151 33449B 9011908332 9011910056 9011912063 9014980002 9017910016 9017910132 9161160814 9161261028 9161261045 9165161030 9165161030
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-27030

KR4#..MTM

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

CR41,KR4#,SR40..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

CR41,KR4#,SR40..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

CR41,KR4#,SR40..MTM

 1
90341-18006

KR4#,SR40..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

CR41,KR4#,SR40..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-26050

KR4#,SR40..MTM

 1
33101-35050

CR41,KR4#,SR40..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

CR41,KR4#,SR40..MTM

OD=14

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

CR41,KR4#,SR40..MTM

L=16,OD=12

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

CR41,KR4#,SR40..MTM

L=16,OD=12

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

CR41,KR4#,SR40..MTM

L=14,OD=15

 2
33118 - PLATE, STIFFENER, RH(MTM)
33118-12080

KR4#..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-26020

CR41,KR4#,SR40..MTM

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30014

CR41,KR4#,SR40..MTM

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-28010

CR41,KR4#,SR40..MTM

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35030

CR41,KR4#,SR40..MTM

 1
33449B - MAGNET, TRANSMISSION
33449-26010

CR41,KR4#,SR40..MTM

 1
Common parts
90119-08332
90119-10056
90119-12063
90149-80002
90179-10016
90179-10132
91611-60814
91612-61028
91612-61045
91651-61030
