KR41R-SRMRS (1996)

Toyota Townace/Liteace

Production Nov 1996 - Dec 1998
Engine 5K
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9611-9812)5K

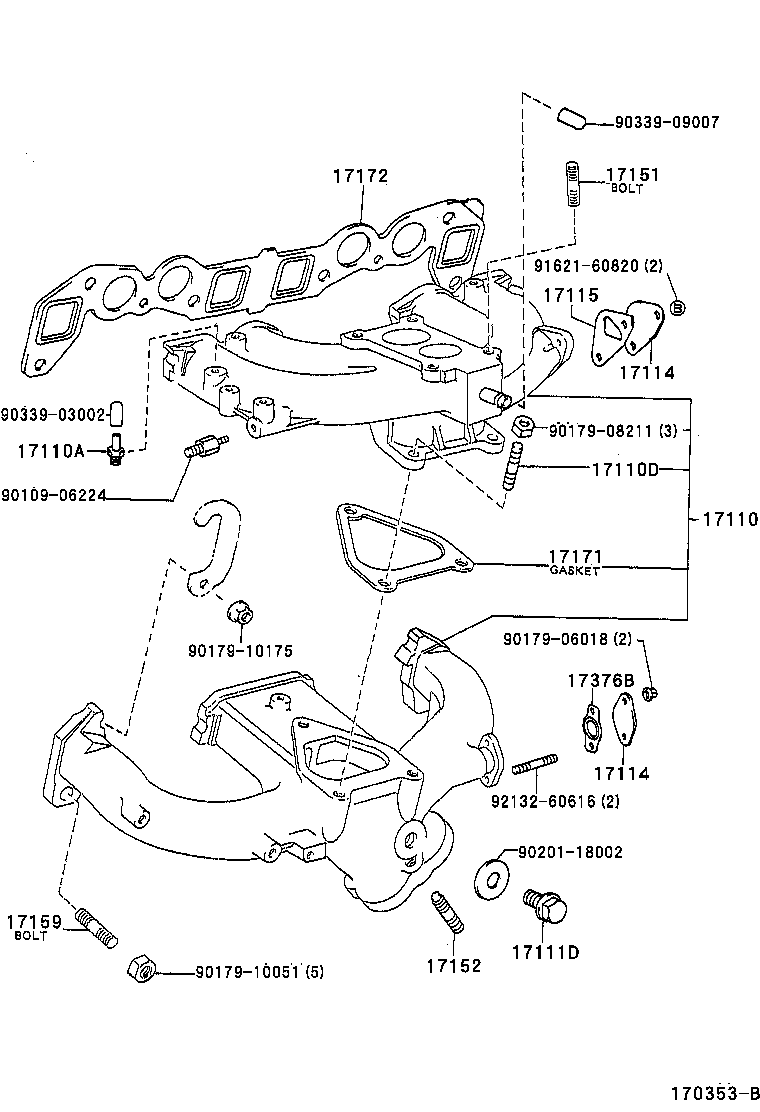

Click highlighted areas on diagram

diagram 17110 17110A 17110D 17111D 17114 17114 17115 17151 17152 17159 17171 17172 17376B 9010906224 9017906018 9017908211 9017910051 9017910175 9020118002 9033903002 9033909007 9162160820 9213260616
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-13250

5K..KR41

 1
17110A - UNION, VACUUM HOSE
90404-51010

5K..KR41

 1
17110D - BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
90116-08248

5K,7K..KR4#

 3
17111D - PLUG, NO.4
90341-18063

5K,7K..KR4#..GEN

 1
17114 - PLATE, INTAKE MANIFOLD HOLE COVER
11495-13020

5K..KR41

INTAKE MANIFOLD

 1
11495-13030

5K..KR41

EXHAUST MANIFOLD

 1
17114 - PLATE, INTAKE MANIFOLD HOLE COVER
11495-13020

5K..KR41

INTAKE MANIFOLD

 1
11495-13030

5K..KR41

EXHAUST MANIFOLD

 1
17115 - GASKET, INTAKE MANIFOLD HOLE COVER
25627-13021

5K..KR41

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08010

5K,7K..KR4#

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

5K,7K..KR4#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

5K,7K..KR4#

 6
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-13060

5K,7K..KR4#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-13050

5K,7K..KR4#

 1
17376B - GASKET, EXHAUST MANIFOLD HOLE COVER
17376-13020

5K..KR41

 1
Common parts
90109-06224
90179-06018
90179-08211
90179-10051
90179-10175
90201-18002
90339-03002
90339-09007
91621-60820
92132-60616
