EL53L-AEPDK (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )

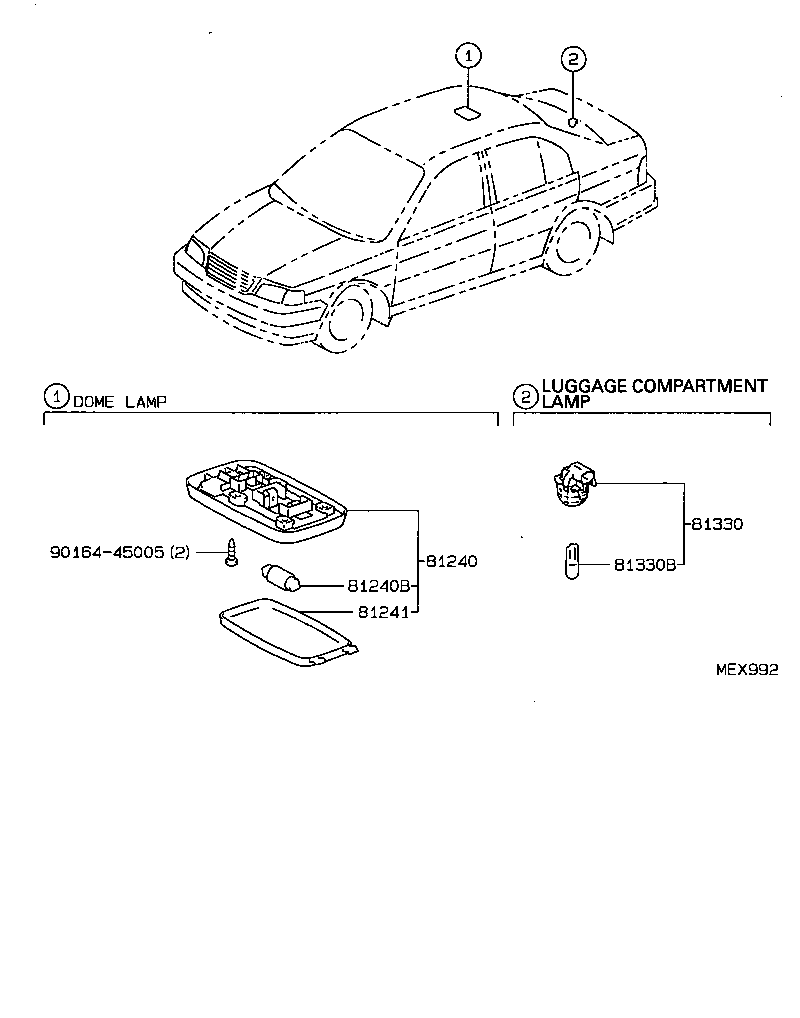

Click highlighted areas on diagram

diagram 81240 81240B 81241 81330 81330B 9016445005
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-12060E0

EL5#

MD.OAK,TRIM4#

 1
81240-12060B1

EL5#

LT.BLUISH GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

EL5#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

EL5#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-30090

EL5#

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

EL5#

12V 3.8W

 1
Common parts
90164-45005
