EL53L-AEPDK (1994)
Toyota Tercel

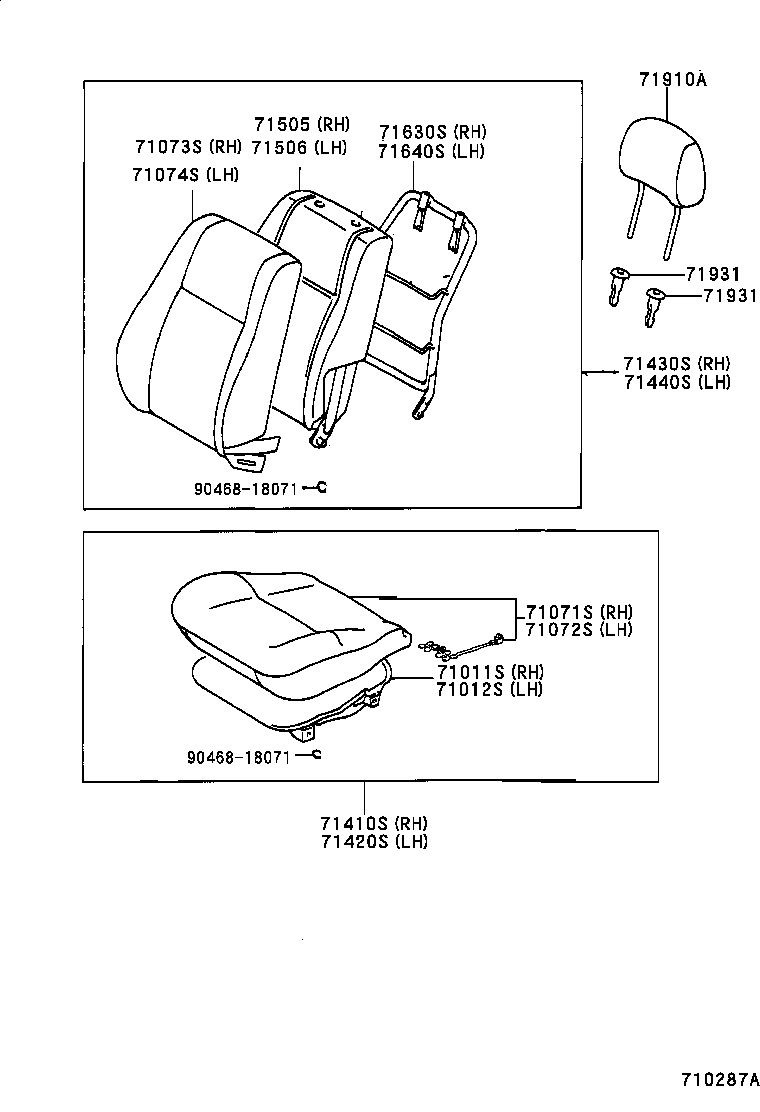

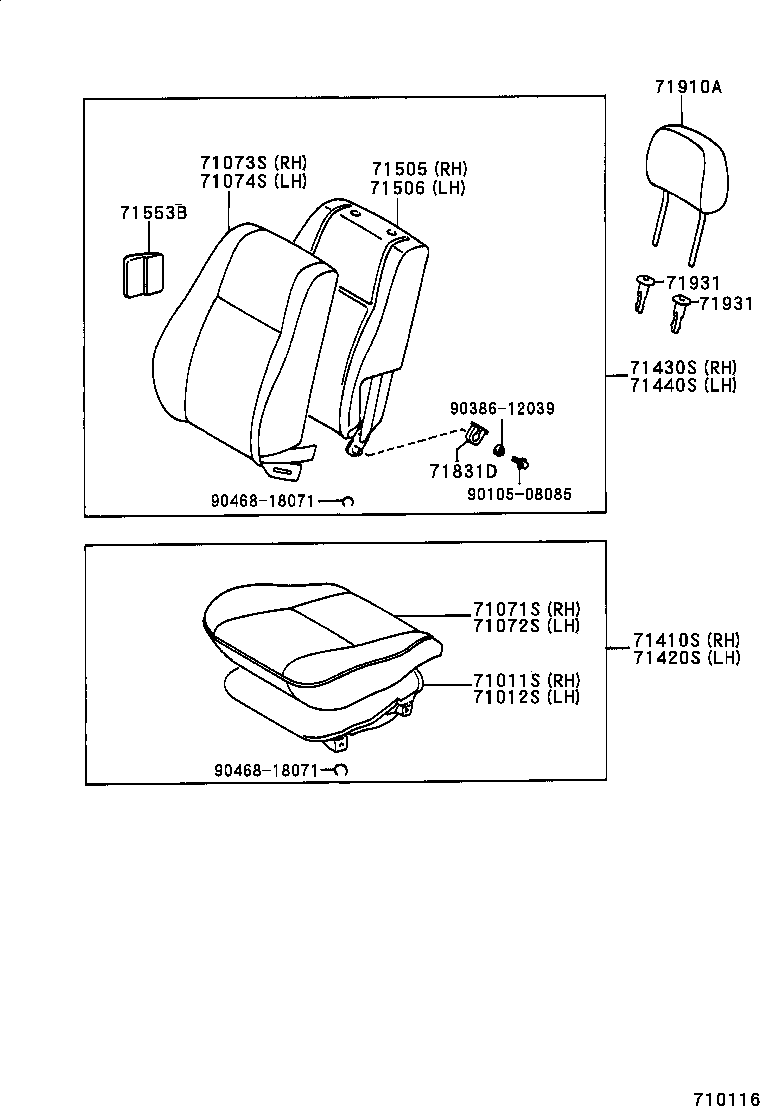

ILLUST NO. 1 OF 2(9409-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-10220 |
EL5# |
1 | ||
| 71011-16140 |
EL5# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16080 |
EL5# |
1 | ||
| 71011-10220 |
EL5# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71518-16310E7 |
EL5# OAK,TRIM4# |
1 | ||
| 71518-16310B8 |
EL5# GRAY,TRIM1# |
1 | ||
| 71518-16310B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16170B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16170E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71518-16310E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71518-16410E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71518-16410E7 |
EL5# OAK,TRIM4# |
1 | ||
| 71518-16410B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16410B8 |
EL5# GRAY,TRIM1# |
1 | ||
| 71518-16170E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71518-16170B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1G280E0 |
EL5#..LHD OAK,TRIM4# |
1 | ||
| 71074-1G170B3 |
EL5# GRAY,TRIM1# |
1 | ||
| 71074-1G170B0 |
EL5#..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G170E0 |
EL5#..LHD OAK,TRIM4# |
1 | ||
| 71074-1G170E3 |
EL5# OAK,TRIM4# |
1 | ||
| 71073-1G280B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1G450B0 |
EL5#..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G450E3 |
EL5# OAK,TRIM4# |
1 | ||
| 71073-1G450E0 |
EL5#..LHD OAK,TRIM4# |
1 | ||
| 71074-1G080B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G080E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71073-1G450B3 |
EL5# GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1G250B0 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-1G370E0 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71410-1G370B7 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-1G370B0 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-1G370E7 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71410-1G250E0 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1G210B0 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-1G340E7 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71420-1G340E0 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71420-1G340B7 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-1G340B0 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-1G210E0 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1G370B0 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-1G370B0 |
EL5#..LHD ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-1G370E0 |
EL5#..LHD ***,OAK,TRIM4# |
1 | ||
| 71440-1G370E3 |
EL5#..LHD ***,OAK,TRIM4# |
1 | ||
| 71430-1G370E0 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71440-1G370B3 |
EL5#..LHD ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-1G490E0 |
EL5#..LHD ***,OAK,TRIM4# |
1 | ||
| 71430-1G490E3 |
EL5#..LHD ***,OAK,TRIM4# |
1 | ||
| 71440-1G320B0 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-1G490B0 |
EL5#..LHD ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-1G320E0 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71430-1G490B3 |
EL5#..LHD ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-16120 |
EL5# |
1 | ||
| 71505-16130 |
EL5# |
1 | ||
| 71505-16120 |
EL5# |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-16050 |
EL5# |
1 | ||
| 71505-16120 |
EL5# |
1 | ||
| 71505-16120 |
EL5# |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-16110 |
EL5# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
EL5# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-16480B1 |
EL5#..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 71910-16550B1 |
EL5#..GEN GRAY,TRIM1# |
2 | ||
| 71910-16550E2 |
EL5#..GEN OAK,TRIM4# |
2 | ||
| 71910-16550B2 |
EL5#..GEN GRAY,TRIM1# |
2 | ||
| 71910-16550E1 |
EL5#..GEN OAK,TRIM4# |
2 | ||
| 71910-16480E1 |
EL5#..GEN BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010E3 |
EL5# W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B0 |
EL5# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-10020B6 |
EL5# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10020E1 |
EL5# W/O(LOCK),ROSEWOOD,TRIM4# |
2 | ||
| 71930-10070E1 |
EL5# W(LOCK),ROSEWOOD,TRIM4# |
2 | ||
| 71931-32020E6 |
EL5# W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020B2 |
EL5# W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-10070B7 |
EL5# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010E3 |
EL5# W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B0 |
EL5# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-10020B6 |
EL5# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10020E1 |
EL5# W/O(LOCK),ROSEWOOD,TRIM4# |
2 | ||
| 71930-10070E1 |
EL5# W(LOCK),ROSEWOOD,TRIM4# |
2 | ||
| 71931-32020E6 |
EL5# W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020B2 |
EL5# W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-10070B7 |
EL5# W(LOCK),GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90386-12039 | ||||
| 90468-18071 | ||||

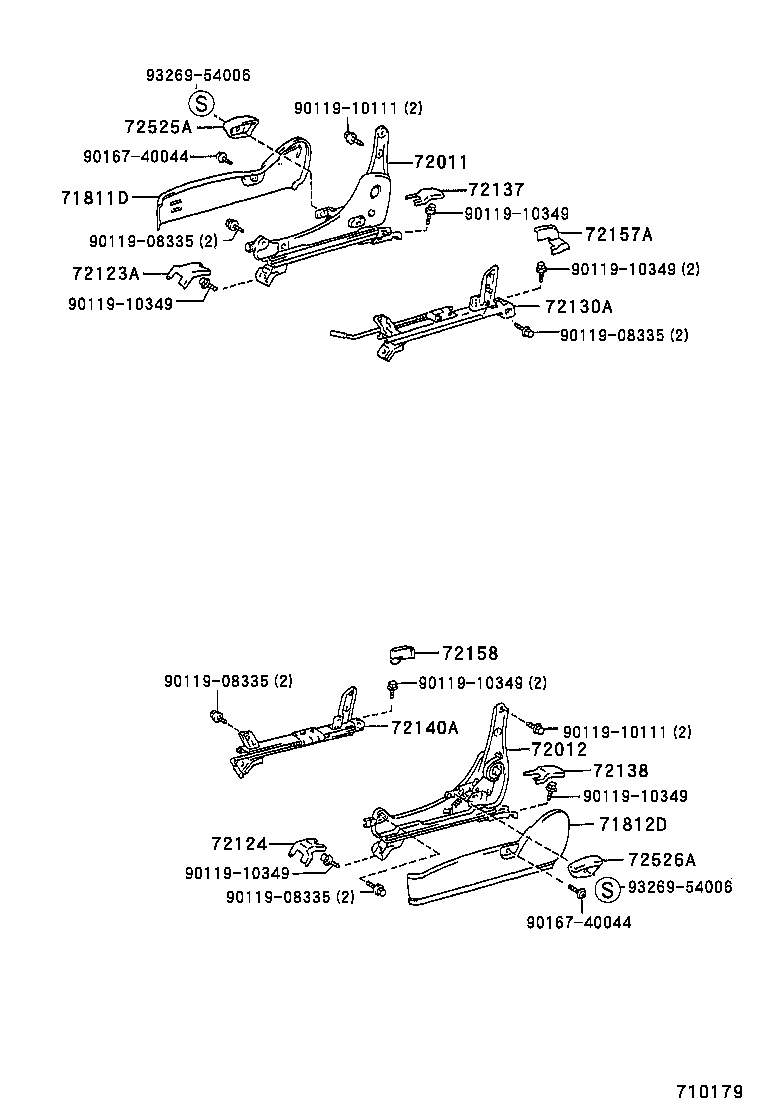

ILLUST NO. 2 OF 2(9409-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20300B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16160E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71811-16160B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71811-20300E1 |
EL5# OAK,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-16110B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71812-16110E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71812-20270B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-20270E1 |
EL5# OAK,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-16310 |
EL5# |
1 | ||
| 72010-16260 |
EL5# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16230 |
EL5# |
1 | ||
| 72012-16250 |
EL5# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-10090 |
EL5# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-10060 |
EL5# |
1 | ||
| 72124-16050 |
EL5#..LHD W(BACK DOOR OPENER) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-16210 |
EL5# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16030 |
EL5# |
1 | ||
| 72137-16050 |
EL5# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16050 |
EL5# |
1 | ||
| 72138-16030 |
EL5# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-16190 |
EL5# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16050 |
EL5# |
1 | ||
| 72157-16080 |
EL5# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16050 |
EL5# |
1 | ||
| 72158-16080 |
EL5# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-10040E0 |
EL5# OAK,TRIM4# |
1 | ||
| 72525-10041B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 72525-16010E1 |
EL5# OAK,TRIM4# |
1 | ||
| 72525-10040B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 72525-10041E0 |
EL5# OAK,TRIM4# |
1 | ||
| 72525-16010B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-10040B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 72526-10041B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 72526-10041E0 |
EL5# OAK,TRIM4# |
1 | ||
| 72526-10040E0 |
EL5# OAK,TRIM4# |
1 | ||
| 72526-16010E1 |
EL5# OAK,TRIM4# |
1 | ||
| 72526-16010B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08335 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 93269-54006 | ||||

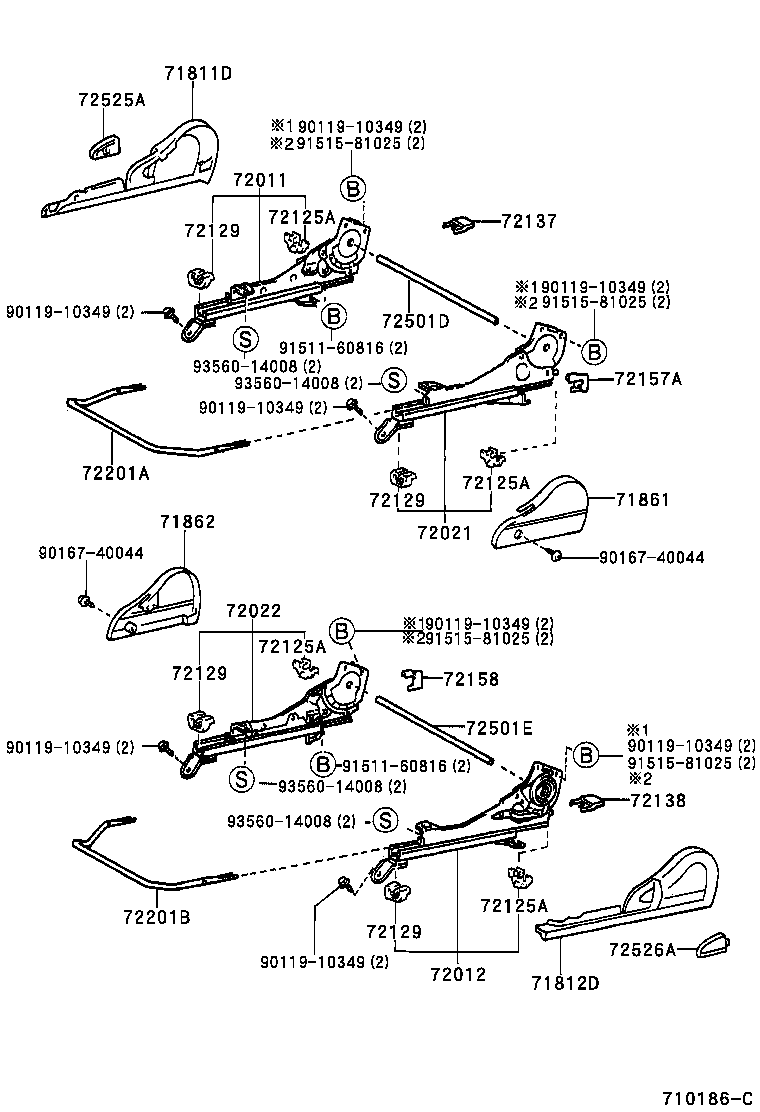

ILLUST NO. 2 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20300B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16160E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71811-16160B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71811-20300E1 |
EL5# OAK,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-16110B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71812-16110E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71812-20270B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-20270E1 |
EL5# OAK,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-16220E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71861-16220B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-16190E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71862-16190B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16260 |
EL5# |
1 | ||
| 72011-16310 |
EL5# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16230 |
EL5# |
1 | ||
| 72012-16250 |
EL5# |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-16250 |
EL5# |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-16220 |
EL5# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL5# |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL5# |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL5# |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL5# |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16020 |
EL5# FRONT |
4 | ||
| 72129-16010 |
EL5# REAR |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16020 |
EL5# FRONT |
4 | ||
| 72129-16010 |
EL5# REAR |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16020 |
EL5# FRONT |
4 | ||
| 72129-16010 |
EL5# REAR |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16020 |
EL5# FRONT |
4 | ||
| 72129-16010 |
EL5# REAR |
4 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16030 |
EL5# |
1 | ||
| 72137-16050 |
EL5# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16050 |
EL5# |
1 | ||
| 72138-16030 |
EL5# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16050 |
EL5# |
1 | ||
| 72157-16080 |
EL5# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16050 |
EL5# |
1 | ||
| 72158-16080 |
EL5# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-16020 |
EL5# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-16020 |
EL5# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-16030 |
EL5# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-16030 |
EL5# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-10040E0 |
EL5# OAK,TRIM4# |
1 | ||
| 72525-10041B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 72525-16010E1 |
EL5# OAK,TRIM4# |
1 | ||
| 72525-10040B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 72525-10041E0 |
EL5# OAK,TRIM4# |
1 | ||
| 72525-16010B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-10040B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 72526-10041B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 72526-10041E0 |
EL5# OAK,TRIM4# |
1 | ||
| 72526-10040E0 |
EL5# OAK,TRIM4# |
1 | ||
| 72526-16010E1 |
EL5# OAK,TRIM4# |
1 | ||
| 72526-16010B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 91511-60816 | ||||
| 91515-81025 | ||||
| 93560-14008 | ||||
ILLUST NO. 1 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-10220 |
EL5# |
1 | ||
| 71011-16140 |
EL5# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16080 |
EL5# |
1 | ||
| 71011-10220 |
EL5# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71518-16310E7 |
EL5# OAK,TRIM4# |
1 | ||
| 71518-16310B8 |
EL5# GRAY,TRIM1# |
1 | ||
| 71518-16310B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16170B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16170E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71518-16310E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71518-16410E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71518-16410E7 |
EL5# OAK,TRIM4# |
1 | ||
| 71518-16410B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16410B8 |
EL5# GRAY,TRIM1# |
1 | ||
| 71518-16170E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71518-16170B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1G280E0 |
EL5#..LHD OAK,TRIM4# |
1 | ||
| 71074-1G170B3 |
EL5# GRAY,TRIM1# |
1 | ||
| 71074-1G170B0 |
EL5#..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G170E0 |
EL5#..LHD OAK,TRIM4# |
1 | ||
| 71074-1G170E3 |
EL5# OAK,TRIM4# |
1 | ||
| 71073-1G280B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1G450B0 |
EL5#..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G450E3 |
EL5# OAK,TRIM4# |
1 | ||
| 71073-1G450E0 |
EL5#..LHD OAK,TRIM4# |
1 | ||
| 71074-1G080B0 |
EL5# BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G080E0 |
EL5# OAK,TRIM4# |
1 | ||
| 71073-1G450B3 |
EL5# GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1G250B0 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-1G370E0 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71410-1G370B7 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-1G370B0 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-1G370E7 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71410-1G250E0 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1G210B0 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-1G340E7 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71420-1G340E0 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71420-1G340B7 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-1G340B0 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-1G210E0 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1G370B0 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-1G370B0 |
EL5#..LHD ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-1G370E0 |
EL5#..LHD ***,OAK,TRIM4# |
1 | ||
| 71440-1G370E3 |
EL5#..LHD ***,OAK,TRIM4# |
1 | ||
| 71430-1G370E0 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71440-1G370B3 |
EL5#..LHD ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-1G490E0 |
EL5#..LHD ***,OAK,TRIM4# |
1 | ||
| 71430-1G490E3 |
EL5#..LHD ***,OAK,TRIM4# |
1 | ||
| 71440-1G320B0 |
EL5# ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-1G490B0 |
EL5#..LHD ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-1G320E0 |
EL5# ***,OAK,TRIM4# |
1 | ||
| 71430-1G490B3 |
EL5#..LHD ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-16120 |
EL5# |
1 | ||
| 71505-16130 |
EL5# |
1 | ||
| 71505-16120 |
EL5# |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-16050 |
EL5# |
1 | ||
| 71505-16120 |
EL5# |
1 | ||
| 71505-16120 |
EL5# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-16130 |
EL5# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71013-16130 |
EL5# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-16480B1 |
EL5#..GEN BLUISH GRAY,TRIM1# |
2 | ||
| 71910-16550B1 |
EL5#..GEN GRAY,TRIM1# |
2 | ||
| 71910-16550E2 |
EL5#..GEN OAK,TRIM4# |
2 | ||
| 71910-16550B2 |
EL5#..GEN GRAY,TRIM1# |
2 | ||
| 71910-16550E1 |
EL5#..GEN OAK,TRIM4# |
2 | ||
| 71910-16480E1 |
EL5#..GEN BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010E3 |
EL5# W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B0 |
EL5# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-10020B6 |
EL5# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10020E1 |
EL5# W/O(LOCK),ROSEWOOD,TRIM4# |
2 | ||
| 71930-10070E1 |
EL5# W(LOCK),ROSEWOOD,TRIM4# |
2 | ||
| 71931-32020E6 |
EL5# W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020B2 |
EL5# W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-10070B7 |
EL5# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010E3 |
EL5# W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B0 |
EL5# W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-10020B6 |
EL5# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-10020E1 |
EL5# W/O(LOCK),ROSEWOOD,TRIM4# |
2 | ||
| 71930-10070E1 |
EL5# W(LOCK),ROSEWOOD,TRIM4# |
2 | ||
| 71931-32020E6 |
EL5# W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020B2 |
EL5# W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-10070B7 |
EL5# W(LOCK),GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90468-18071 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
