EL53L-AEMDK (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )

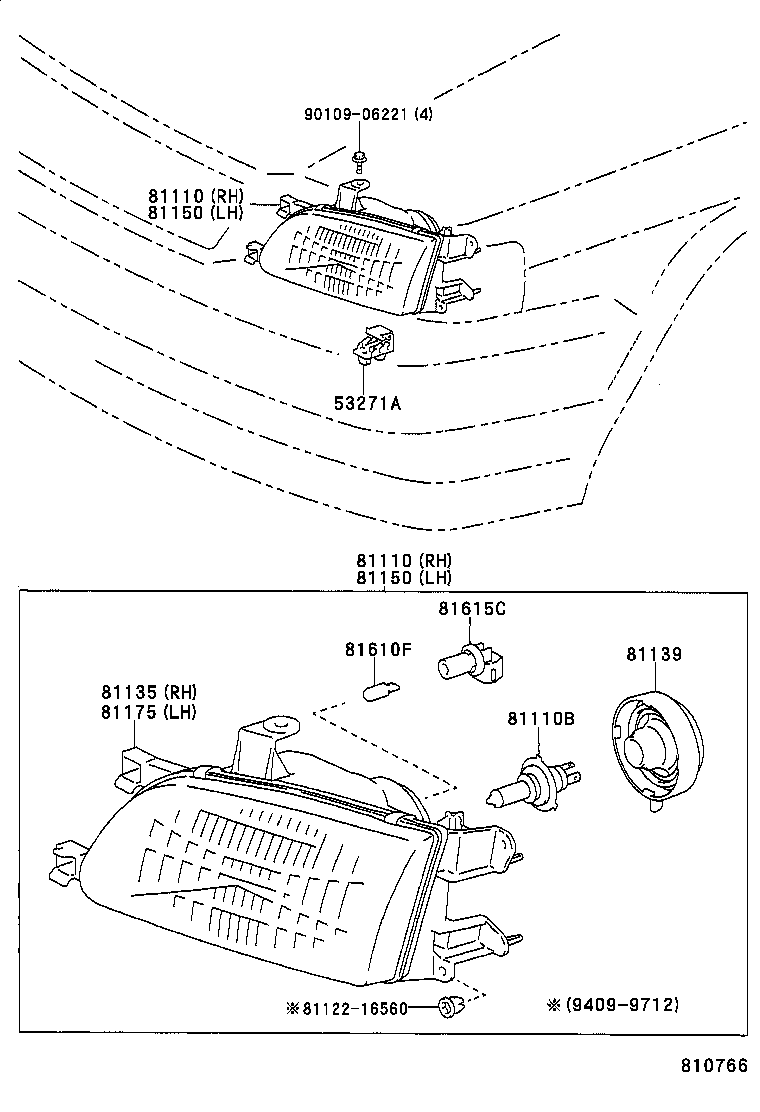

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-12060 |
EL5# |
2 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-16570 |
EL5#..LHD |
1 | ||
| 81110-16750 |
EL5#..LHD |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-16570 |
EL5#..LHD |
1 | ||
| 81110-16750 |
EL5#..LHD |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-22002 |
EL5# 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
EL5# 12V 60/55W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-16750 |
EL5#..LHD |
1 | ||
| 81130-16570 |
EL5#..LHD |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-16560 |
EL5# |
2 | ||
| 81139-1E340 |
EL5# |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-16570 |
EL5#..LHD |
1 | ||
| 81150-16750 |
EL5#..LHD |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-16570 |
EL5#..LHD |
1 | ||
| 81150-16750 |
EL5#..LHD |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-16750 |
EL5#..LHD |
1 | ||
| 81170-16570 |
EL5#..LHD |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
EL5# 12V 5W |
2 | ||
| 81615C - SOCKET & WIRE, CLEARANCE LAMP | ||||
| 81138-22680 |
EL5# |
2 | ||
| 90075-99044 |
EL5# |
2 | ||
| Common parts | ||||
| 81122-16560 | ||||
| 90109-06221 | ||||
