EL53L-AEMDK (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

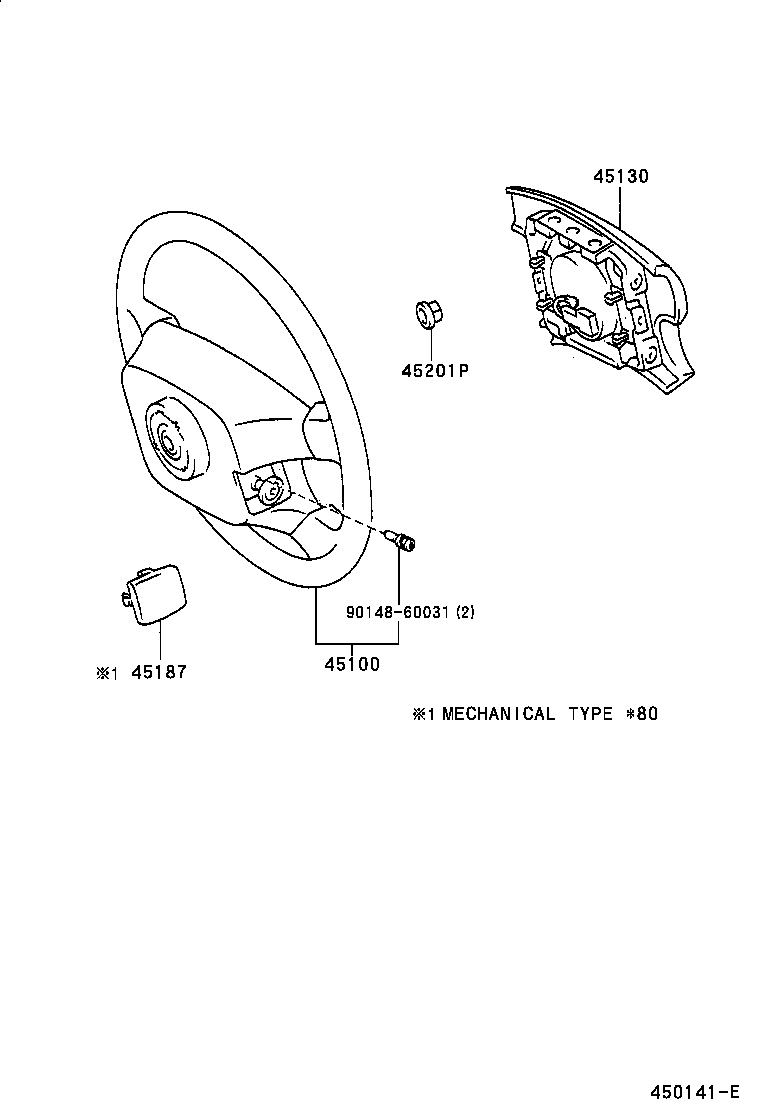

Click highlighted areas on diagram

4-SPOKE,W(*80)

diagram 45100 45130 45187 45201P 9014860031
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-16380E0

EL5#

4-SPOKE,URETHANE,OAK,TRIM4#

 1
45100-16370B0

EL5#

2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1#

 1
45100-16380B1

EL5#..GEN

4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#

 1
45100-16380B0

EL5#

4-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

 1
45100-16500E0

EL5#

4-SPOKE,URETHANE,W(*80),OAK,TRIM4#

 1
45100-16370B1

EL5#

2SPOKE,POLYPROPYLENE,SHADOW GRAY,TRIM1#

 1
45100-16380B1

EL5#

4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#

 1
45100-16380E0

EL5#..GEN

4-SPOKE,URETHANE,OAK,TRIM4#

 1
45100-16550E0

EL5#

4-SPOKE,URETHANE,W(*80),OAK,TRIM4#

 1
45100-16500B0

EL5#

4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1#

 1
45100-16550B0

EL5#

4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1#

 1
45100-16370E0

EL5#

2SPOKE,POLYPROPYLENE,OAK,TRIM4#

 1
45100-16370B1

EL5#..GEN

2SPOKE,POLYPROPYLENE,SHADOW GRAY,TRIM1#

 1
45100-16370E0

EL5#..GEN

2SPOKE,POLYPROPYLENE,OAK,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-16340E0

EL5#

W(4-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45130-16290B1

EL5#

W(2-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45130-16290E0

EL5#

W(2-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45130-16340B1

EL5#

W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45130-16390B0

EL5#

W(*80),SHADOW GRAY,TRIM1#

 1
45130-16340B1

EL5#..GEN

W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45130-16340E0

EL5#..GEN

W(4-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45130-16290E0

EL5#..GEN

W(2-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45130-16440E0

EL5#

W(*80),OAK,TRIM4#

 1
45130-16390E0

EL5#

W(*80),OAK,TRIM4#

 1
45130-16290B0

EL5#

BLUISH GRAY,TRIM1#

 1
45130-16440B0

EL5#

W(*80),SHADOW GRAY,TRIM1#

 1
45130-16290B1

EL5#..GEN

W(2-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-16020E0

EL5#

OAK,TRIM4#

 1
45187-16020B1

EL5#

SHADOW GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

EL5#

 1
Common parts
90148-60031

(9409- )

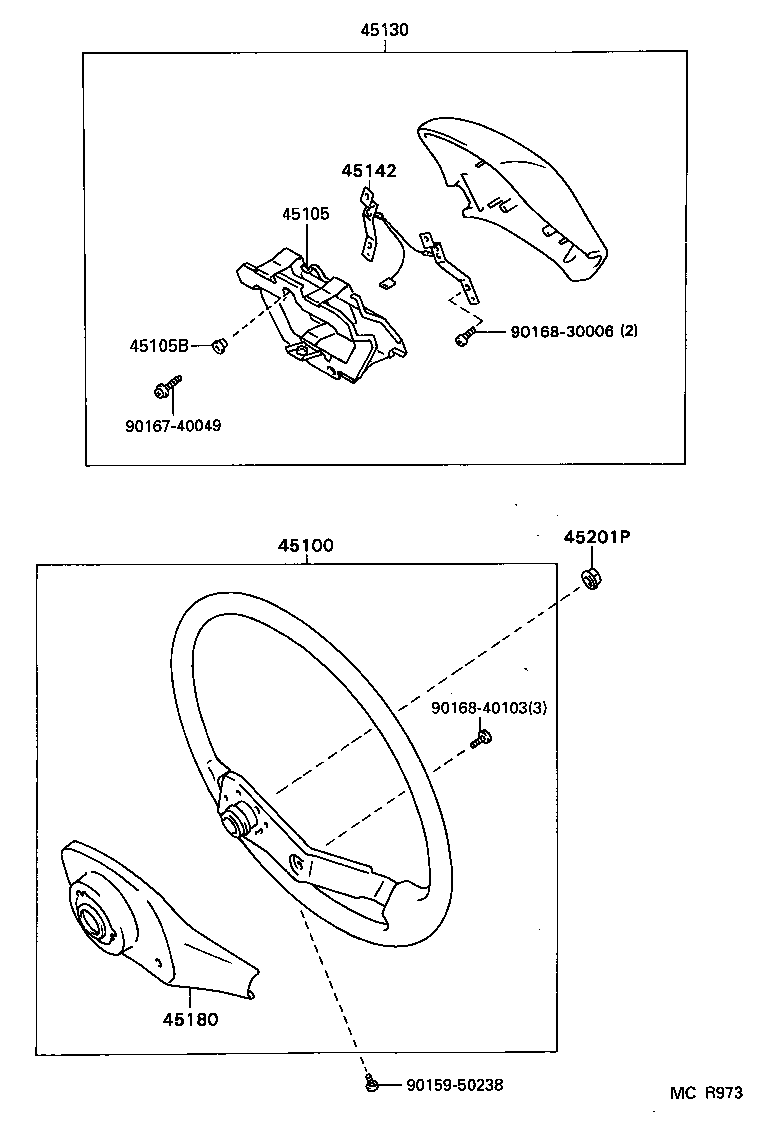

Click highlighted areas on diagram

2-SPOKE

diagram 45100 45105 45105B 45130 45142 45180 45201P 9015950238 9016740049 9016830006 9016840103
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-16380E0

EL5#

4-SPOKE,URETHANE,OAK,TRIM4#

 1
45100-16370B0

EL5#

2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1#

 1
45100-16380B1

EL5#..GEN

4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#

 1
45100-16380B0

EL5#

4-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

 1
45100-16500E0

EL5#

4-SPOKE,URETHANE,W(*80),OAK,TRIM4#

 1
45100-16370B1

EL5#

2SPOKE,POLYPROPYLENE,SHADOW GRAY,TRIM1#

 1
45100-16380B1

EL5#

4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#

 1
45100-16380E0

EL5#..GEN

4-SPOKE,URETHANE,OAK,TRIM4#

 1
45100-16550E0

EL5#

4-SPOKE,URETHANE,W(*80),OAK,TRIM4#

 1
45100-16500B0

EL5#

4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1#

 1
45100-16550B0

EL5#

4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1#

 1
45100-16370E0

EL5#

2SPOKE,POLYPROPYLENE,OAK,TRIM4#

 1
45100-16370B1

EL5#..GEN

2SPOKE,POLYPROPYLENE,SHADOW GRAY,TRIM1#

 1
45100-16370E0

EL5#..GEN

2SPOKE,POLYPROPYLENE,OAK,TRIM4#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-20480

EL5#

W(4-SPOKE STEERING WHEEL)

 1
45105-10070

EL5#

W(2-SPOKE STEERING WHEEL)

 1
45105-20480

EL5#..GEN

W(4-SPOKE STEERING WHEEL)

 1
45105-10070

EL5#..GEN

W(2-SPOKE STEERING WHEEL)

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-04014

EL5#

 1
90561-04014

EL5#..GEN

 1
45130 - BUTTON ASSY, HORN
45130-16340E0

EL5#

W(4-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45130-16290B1

EL5#

W(2-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45130-16290E0

EL5#

W(2-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45130-16340B1

EL5#

W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45130-16390B0

EL5#

W(*80),SHADOW GRAY,TRIM1#

 1
45130-16340B1

EL5#..GEN

W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45130-16340E0

EL5#..GEN

W(4-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45130-16290E0

EL5#..GEN

W(2-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45130-16440E0

EL5#

W(*80),OAK,TRIM4#

 1
45130-16390E0

EL5#

W(*80),OAK,TRIM4#

 1
45130-16290B0

EL5#

BLUISH GRAY,TRIM1#

 1
45130-16440B0

EL5#

W(*80),SHADOW GRAY,TRIM1#

 1
45130-16290B1

EL5#..GEN

W(2-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-12100

EL5#

 1
45142-12100

EL5#..GEN

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-16150B1

EL5#

W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45180-16150B1

EL5#..GEN

W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45180-16140E0

EL5#

W(2-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45180-16150E0

EL5#..GEN

W(4-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45180-16140B1

EL5#

W(2-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45180-16150B0

EL5#

W(4-SPOKE STEERING WHEEL),BLUISH GRAY,TRIM1#

 1
45180-16140E0

EL5#..GEN

W(2-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45180-16140B0

EL5#

BLUISH GRAY,TRIM1#

 1
45180-16140B1

EL5#..GEN

W(2-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45180-16150E0

EL5#

W(4-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

EL5#

 1
Common parts
90159-50238
90167-40049
90168-30006
90168-40103

(9409- )

Click highlighted areas on diagram

4-SPOKE,W/O(*80)

diagram 45100 45105 45105A 45130 45155 45180 45201P 9015950238 9016840103 9016840103
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-16380E0

EL5#

4-SPOKE,URETHANE,OAK,TRIM4#

 1
45100-16370B0

EL5#

2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1#

 1
45100-16380B1

EL5#..GEN

4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#

 1
45100-16380B0

EL5#

4-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

 1
45100-16500E0

EL5#

4-SPOKE,URETHANE,W(*80),OAK,TRIM4#

 1
45100-16370B1

EL5#

2SPOKE,POLYPROPYLENE,SHADOW GRAY,TRIM1#

 1
45100-16380B1

EL5#

4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#

 1
45100-16380E0

EL5#..GEN

4-SPOKE,URETHANE,OAK,TRIM4#

 1
45100-16550E0

EL5#

4-SPOKE,URETHANE,W(*80),OAK,TRIM4#

 1
45100-16500B0

EL5#

4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1#

 1
45100-16550B0

EL5#

4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1#

 1
45100-16370E0

EL5#

2SPOKE,POLYPROPYLENE,OAK,TRIM4#

 1
45100-16370B1

EL5#..GEN

2SPOKE,POLYPROPYLENE,SHADOW GRAY,TRIM1#

 1
45100-16370E0

EL5#..GEN

2SPOKE,POLYPROPYLENE,OAK,TRIM4#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-20480

EL5#

W(4-SPOKE STEERING WHEEL)

 1
45105-10070

EL5#

W(2-SPOKE STEERING WHEEL)

 1
45105-20480

EL5#..GEN

W(4-SPOKE STEERING WHEEL)

 1
45105-10070

EL5#..GEN

W(2-SPOKE STEERING WHEEL)

 1
45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE)
90540-08014

EL5#..GEN

 4
90540-08014

EL5#

 4
45130 - BUTTON ASSY, HORN
45130-16340E0

EL5#

W(4-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45130-16290B1

EL5#

W(2-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45130-16290E0

EL5#

W(2-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45130-16340B1

EL5#

W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45130-16390B0

EL5#

W(*80),SHADOW GRAY,TRIM1#

 1
45130-16340B1

EL5#..GEN

W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45130-16340E0

EL5#..GEN

W(4-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45130-16290E0

EL5#..GEN

W(2-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45130-16440E0

EL5#

W(*80),OAK,TRIM4#

 1
45130-16390E0

EL5#

W(*80),OAK,TRIM4#

 1
45130-16290B0

EL5#

BLUISH GRAY,TRIM1#

 1
45130-16440B0

EL5#

W(*80),SHADOW GRAY,TRIM1#

 1
45130-16290B1

EL5#..GEN

W(2-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45155 - SPACER, HORN BUTTON CONTACT PLATE
45155-22040

EL5#..GEN

 4
45155-22040

EL5#

 4
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-16150B1

EL5#

W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45180-16150B1

EL5#..GEN

W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45180-16140E0

EL5#

W(2-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45180-16150E0

EL5#..GEN

W(4-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45180-16140B1

EL5#

W(2-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45180-16150B0

EL5#

W(4-SPOKE STEERING WHEEL),BLUISH GRAY,TRIM1#

 1
45180-16140E0

EL5#..GEN

W(2-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45180-16140B0

EL5#

BLUISH GRAY,TRIM1#

 1
45180-16140B1

EL5#..GEN

W(2-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#

 1
45180-16150E0

EL5#

W(4-SPOKE STEERING WHEEL),OAK,TRIM4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

EL5#

 1
Common parts
90159-50238
90168-40103
