EL50R-AEMDS (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

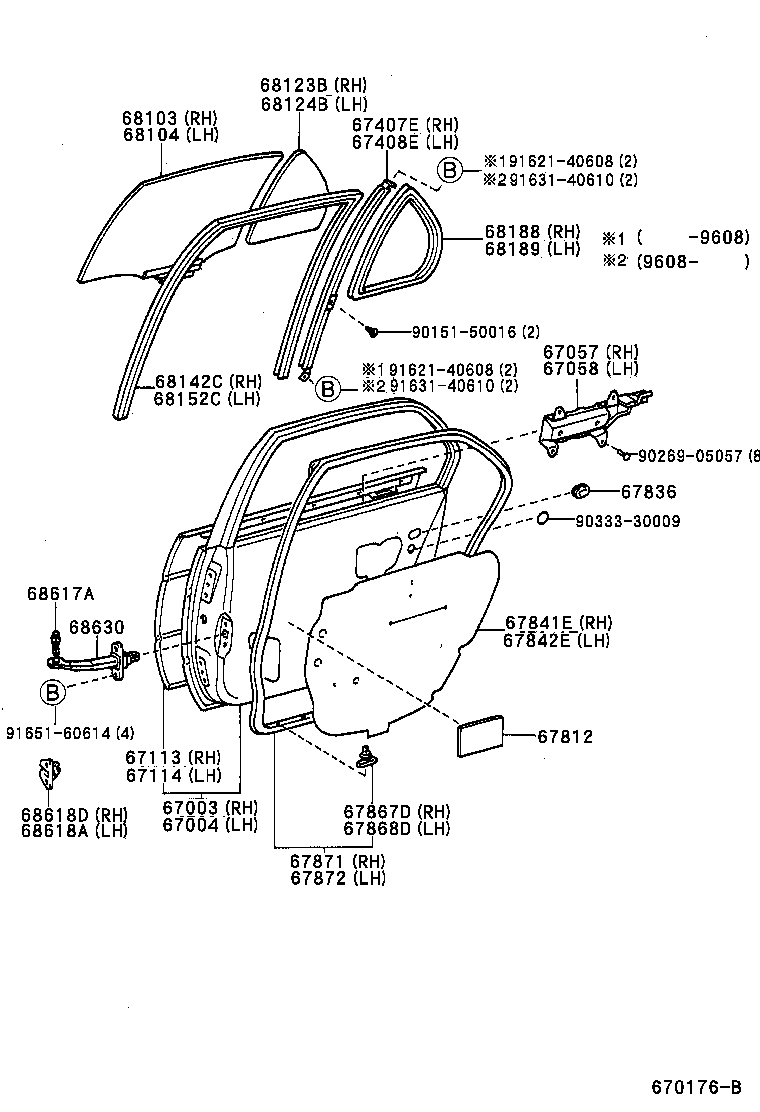

ILLUST NO. 2 OF 2(9409- )

Click highlighted areas on diagram

diagram 67003 67004 67057 67058 67113 67114 67407E 67408E 67812 67836 67841E 67842E 67867D 67868D 67871 67872 68103 68104 68123B 68124B 68142C 68152C 68188 68189 68617A 68618A 68618D 68630 9015150016 9026905057 9033330009 9162140608 9162140608 9163140610 9163140610 9165160614
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-16260

EL5#

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-16260

EL5#

 1
67057 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH
67057-16010

EL5#

 1
67058 - REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH
67058-16010

EL5#

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-16100

EL5#

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-16100

EL5#

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-16070

EL5#

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-16070

EL5#

 1
67812 - PAD, REAR DOOR SILENCER
67812-16060

EL5#

 2
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-20060

EL5#

 2
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-16150

EL5#

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67841-16150

EL5#

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

EL5#

 16
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

EL5#

 16
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-16210

EL5#

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-16210

EL5#

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-16050

EL5#

*TT,T=3.5,BLUE

 1
68103-16060

EL5#

*TT,T=3.5,GREEN

 1
68103-16040

EL5#

*TEM,T=3.5,CLEAR

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-16050

EL5#

*TT,T=3.5,BLUE

 1
68104-16060

EL5#

*TT,T=3.5,GREEN

 1
68104-16040

EL5#

*TEM,T=3.5,CLEAR

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-16150

EL5#

*TEM,T=3.5,CLEAR

 1
68123-16160

EL5#

*TT,T=3.5,BLUE

 1
68123-16170

EL5#

*TT,T=3.5,GREEN

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-16150

EL5#

*TEM,T=3.5,CLEAR

 1
68124-16170

EL5#

*TT,T=3.5,GREEN

 1
68124-16160

EL5#

*TT,T=3.5,BLUE

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-16100

EL5#

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-16020

EL5#

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-16080

EL5#

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-16080

EL5#

 1
68617A - PIN, REAR DOOR CHECK
68617-20011

EL5#

 2
68617-12030

EL5#

 2
68618A - BRACKET, REAR DOOR CHECK ARM, LH
61377-16030

EL5#

 1
68618D - BRACKET, REAR DOOR CHECK ARM, RH
61377-16030

EL5#

 1
68630 - CHECK ASSY, REAR DOOR
68630-16090

EL5#

 2
Common parts
90151-50016
90269-05057
90333-30009
91621-40608
91631-40610
91651-60614

ILLUST NO. 1 OF 2(9409- )

Click highlighted areas on diagram

diagram 67603 67603D 67604 67604D 67785G 67785H 68190 9016460008 9018906018 9018906205
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-16540B1

EL5#

BLUISH GRAY,TRIM1#

 1
67630-16580B0

EL5#

FABRIC,BLUISH GRAY,TRIM1#

 1
67630-16580E0

EL5#

FABRIC,OAK,TRIM4#

 1
67630-16650E0

EL5#

OAK,TRIM4#

 1
67630-16650B0

EL5#

SHADOW GRAY,TRIM1#

 1
67630-16660E0

EL5#

FABRIC,OAK,TRIM4#

 1
67630-16660B0

EL5#

FABRIC,SHADOW GRAY,TRIM1#

 1
67630-16540E1

EL5#

OAK,TRIM4#

 1
67630-16661B1

EL5#

FABRIC,SHADOW GRAY,TRIM1#

 1
67630-16661E1

EL5#

FABRIC,OAK,TRIM4#

 1
67630-16651E1

EL5#

OAK,TRIM4#

 1
67630-16651B1

EL5#

SHADOW GRAY,TRIM1#

 1
67603D - RETAINER, REAR DOOR TRIM, RH
67771-16120

EL5#

LIGHT GRAY

 6
67771-12050

EL5#

RED

 2
67771-16120

EL5#

 8
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-16590B0

EL5#

FABRIC,BLUISH GRAY,TRIM1#

 1
67640-16590E0

EL5#

FABRIC,OAK,TRIM4#

 1
67640-16660B0

EL5#

SHADOW GRAY,TRIM1#

 1
67640-16550B1

EL5#

BLUISH GRAY,TRIM1#

 1
67640-16660E0

EL5#

OAK,TRIM4#

 1
67640-16550E1

EL5#

OAK,TRIM4#

 1
67640-16670E0

EL5#

FABRIC,OAK,TRIM4#

 1
67640-16661B1

EL5#

SHADOW GRAY,TRIM1#

 1
67640-16670B0

EL5#

FABRIC,SHADOW GRAY,TRIM1#

 1
67640-16661E1

EL5#

OAK,TRIM4#

 1
67640-16671B1

EL5#

FABRIC,SHADOW GRAY,TRIM1#

 1
67640-16671E1

EL5#

FABRIC,OAK,TRIM4#

 1
67604D - RETAINER, REAR DOOR TRIM, LH
67771-16120

EL5#

LIGHT GRAY

 6
67771-12050

EL5#

RED

 2
67771-16120

EL5#

 8
67785G - HOLDER, REAR DOOR LOCK CONTROL KNOB, RH
69751-12050E0

EL5#

OAK,TRIM4#

 1
69751-12050B0

EL5#

SHADOW GRAY,TRIM1#

 1
67785H - HOLDER, REAR DOOR LOCK CONTROL KNOB, LH
69751-12050E0

EL5#

OAK,TRIM4#

 1
69751-12050B0

EL5#

SHADOW GRAY,TRIM1#

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68173-16090

EL5#

RH

 1
68174-16080

EL5#

LH

 1
68174-16070

EL5#

LH

 1
68174-16090

EL5#

LH

 1
68173-16070

EL5#

RH

 1
68173-16080

EL5#

RH

 1
Common parts
90164-60008
90189-06018
90189-06205
