EL50R-AEHDS (1994)
Toyota Tercel

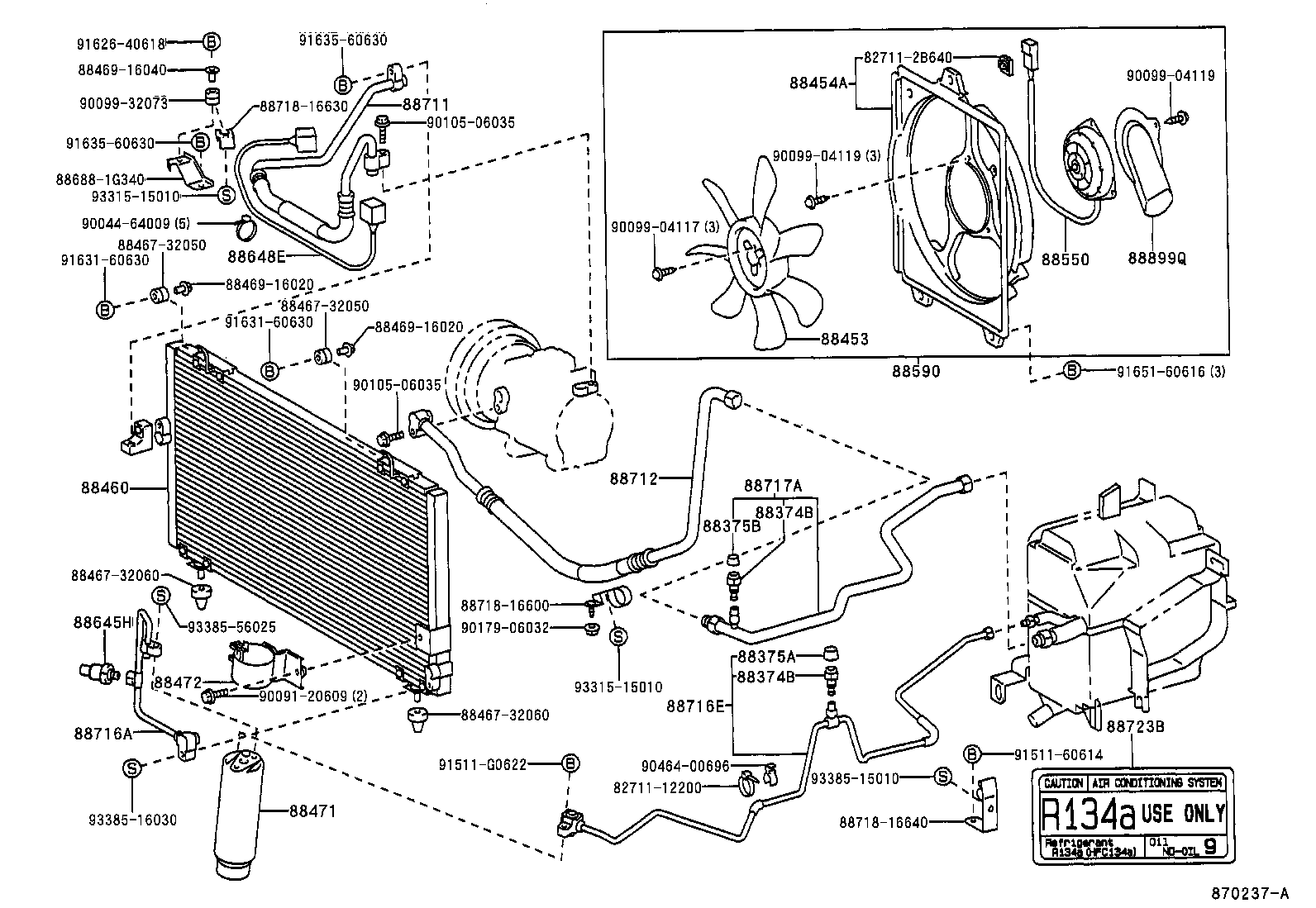

ILLUST NO. 1 OF 2(9409-9608)RHD
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL5#..GEN |
2 | ||
| 88374-30010 |
EL5# |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL5#..GEN |
2 | ||
| 88374-30010 |
EL5# |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
EL5# |
1 | ||
| 88375-30280 |
EL5#..GEN |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
EL5# |
1 | ||
| 88375-30290 |
EL5#..GEN |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
EL5# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-16140 |
EL5# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16420 |
EL50..RHD DEALER OPTION |
1 | ||
| 88460-16420 |
EL50..RHD..3FC DEALER OPTION |
1 | ||
| 88460-16421 |
EL50..RHD MAKER OPTION |
1 | ||
| 88460-16480 |
EL50..RHD |
1 | ||
| 88460-16330 |
EL50..RHD |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
EL5# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-16130 |
EL50..RHD |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-74180 |
EL5# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16070 |
EL5# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
EL5# |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-16280 |
EL50..RHD |
1 | ||
| 88648-16220 |
EL5# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16260 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16321 |
EL50..RHD DEALER OPTION |
1 | ||
| 88711-16261 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16400 |
EL50..RHD DEALER OPTION |
1 | ||
| 88711-16370 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16430 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16460 |
EL50..RHD DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16390 |
EL50..RHD |
1 | ||
| 88712-16520 |
EL50..RHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-1G030 |
EL50..RHD |
1 | ||
| 88716-1G410 |
EL50..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-16880 |
EL50..RHD MAKER OPTION |
1 | ||
| 88716-1G080 |
EL50..RHD DEALER OPTION |
1 | ||
| 88716-16881 |
EL50..RHD MAKER OPTION |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16230 |
EL50..RHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-16050 |
EL5# |
1 | ||
| 88723-20040 |
EL5# |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-16020 |
EL5# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-2B640 | ||||
| 88467-32050 | ||||
| 88467-32060 | ||||
| 88469-16020 | ||||
| 88469-16040 | ||||
| 88688-1G340 | ||||
| 88718-16600 | ||||
| 88718-16630 | ||||
| 88718-16640 | ||||
| 90044-64009 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-32073 | ||||
| 90105-06035 | ||||
| 90179-06032 | ||||
| 90464-00696 | ||||
| 91511-60614 | ||||
| 91511-G0622 | ||||
| 91626-40618 | ||||
| 91631-60630 | ||||
| 91635-60630 | ||||
| 91651-60616 | ||||
| 93315-15010 | ||||
| 93385-15010 | ||||
| 93385-16030 | ||||
| 93385-56025 | ||||

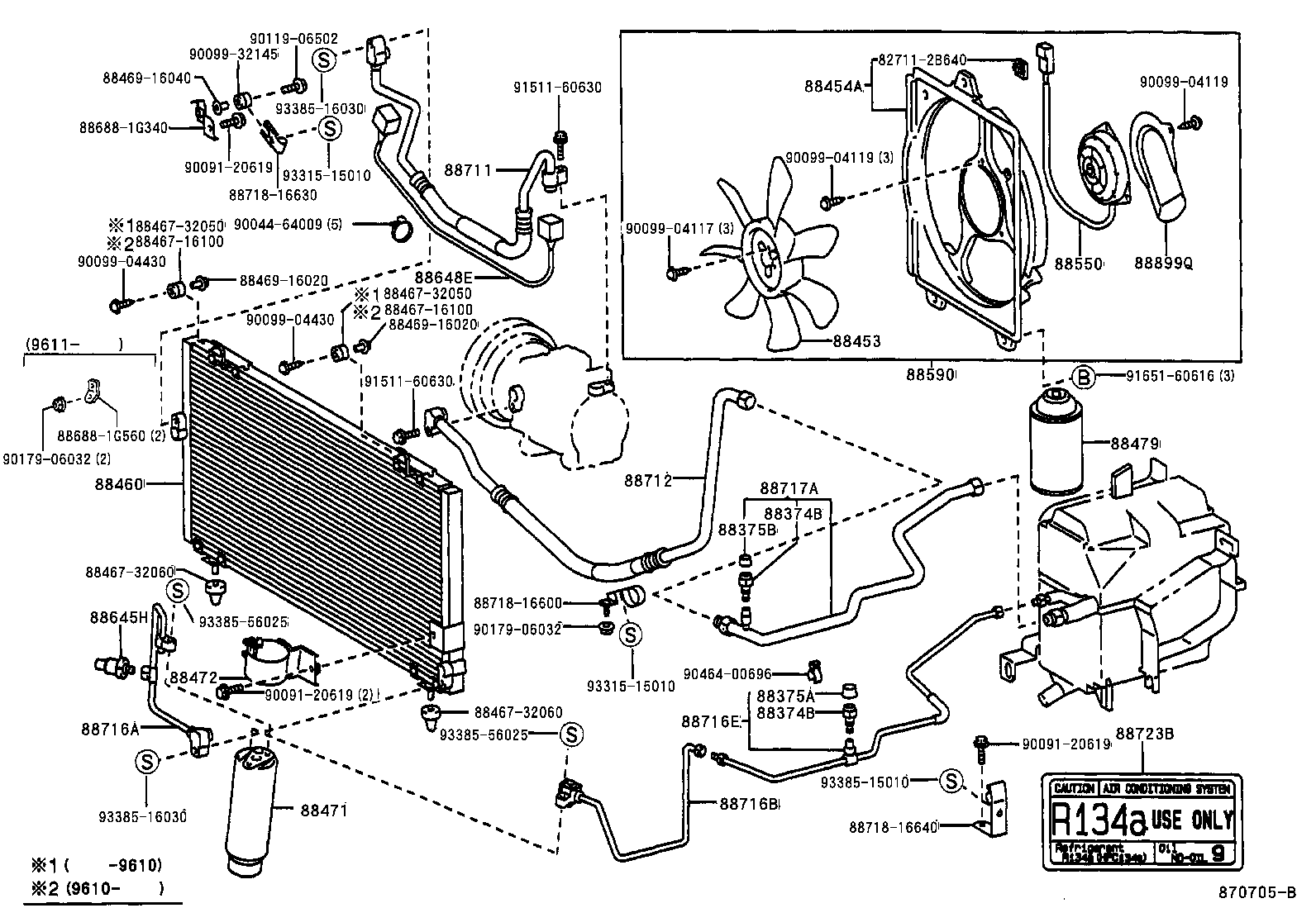

ILLUST NO. 1 OF 2(9409-9608)RHD
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL5#..GEN |
2 | ||
| 88374-30010 |
EL5# |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL5#..GEN |
2 | ||
| 88374-30010 |
EL5# |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
EL5# |
1 | ||
| 88375-30280 |
EL5#..GEN |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
EL5# |
1 | ||
| 88375-30290 |
EL5#..GEN |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
EL5# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-16140 |
EL5# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16420 |
EL50..RHD DEALER OPTION |
1 | ||
| 88460-16420 |
EL50..RHD..3FC DEALER OPTION |
1 | ||
| 88460-16421 |
EL50..RHD MAKER OPTION |
1 | ||
| 88460-16480 |
EL50..RHD |
1 | ||
| 88460-16330 |
EL50..RHD |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
EL5# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-16130 |
EL50..RHD |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
EL5#..GEN 200G |
2 | ||
| 90986-02007 |
EL5#..GEN 250G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-74180 |
EL5# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16070 |
EL5# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
EL5# |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-16280 |
EL50..RHD |
1 | ||
| 88648-16220 |
EL5# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16260 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16321 |
EL50..RHD DEALER OPTION |
1 | ||
| 88711-16261 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16400 |
EL50..RHD DEALER OPTION |
1 | ||
| 88711-16370 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16430 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16460 |
EL50..RHD DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16390 |
EL50..RHD |
1 | ||
| 88712-16520 |
EL50..RHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-1G030 |
EL50..RHD |
1 | ||
| 88716-1G410 |
EL50..RHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-1G090 |
EL50..RHD..3FC DEALER OPTION |
1 | ||
| 88716-1G091 |
EL50..RHD |
1 | ||
| 88716-1G090 |
EL50..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-16880 |
EL50..RHD MAKER OPTION |
1 | ||
| 88716-1G080 |
EL50..RHD DEALER OPTION |
1 | ||
| 88716-16881 |
EL50..RHD MAKER OPTION |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16230 |
EL50..RHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-16050 |
EL5# |
1 | ||
| 88723-20040 |
EL5# |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-16020 |
EL5# |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88467-32050 | ||||
| 88467-32060 | ||||
| 88469-16020 | ||||
| 88469-28010 | ||||
| 88688-1G340 | ||||
| 88718-16600 | ||||
| 88718-16630 | ||||
| 88718-16640 | ||||
| 90044-64009 | ||||
| 90091-20619 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-04430 | ||||
| 90099-32130 | ||||
| 90119-06502 | ||||
| 90119-06730 | ||||
| 90179-06032 | ||||
| 90464-00696 | ||||
| 91651-60616 | ||||
| 93315-15010 | ||||
| 93385-15010 | ||||
| 93385-16030 | ||||
| 93385-56025 | ||||

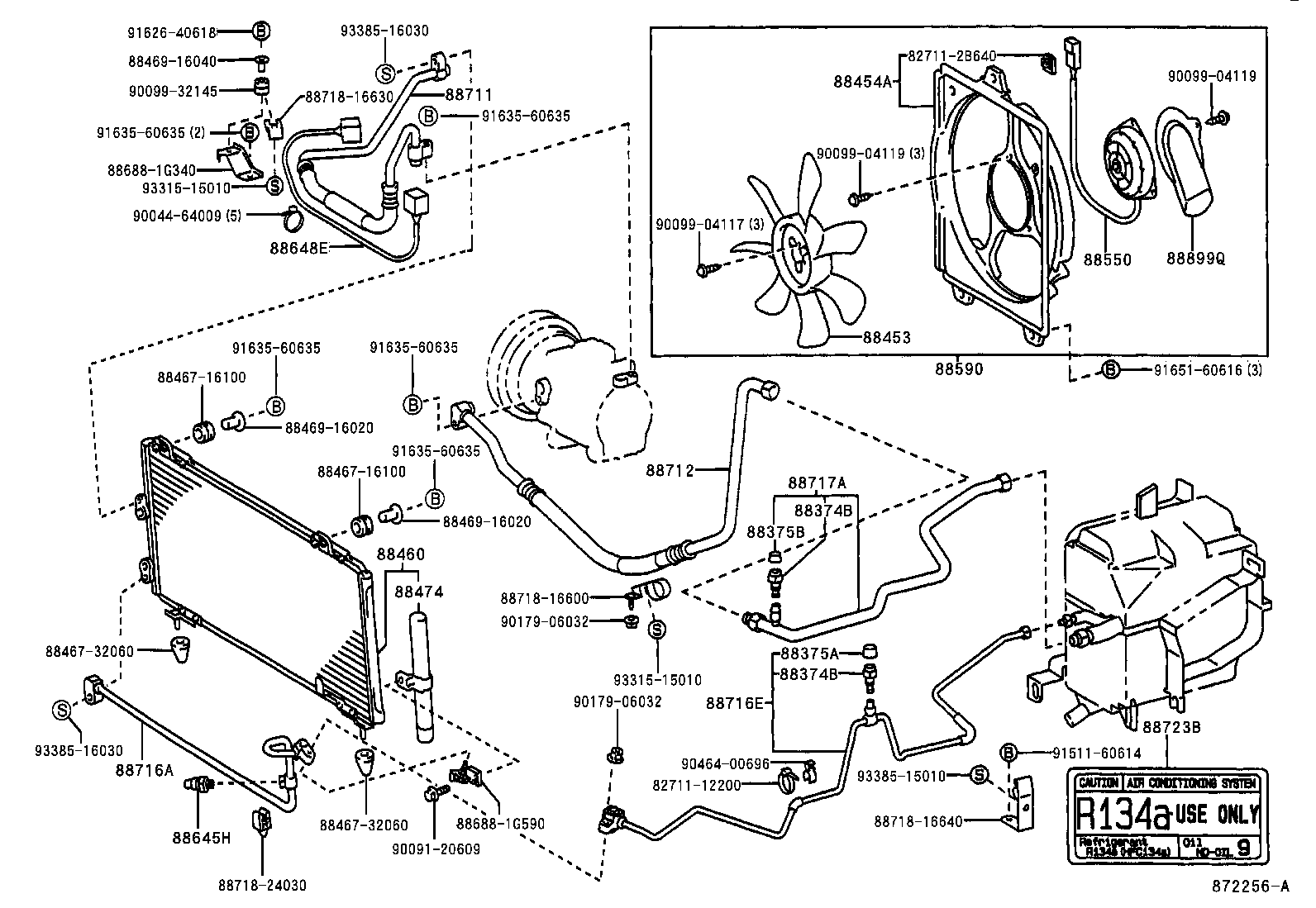

ILLUST NO. 1 OF 2(9608-9712)RHD
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL5#..GEN |
2 | ||
| 88374-30010 |
EL5# |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL5#..GEN |
2 | ||
| 88374-30010 |
EL5# |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
EL5# |
1 | ||
| 88375-30280 |
EL5#..GEN |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
EL5# |
1 | ||
| 88375-30290 |
EL5#..GEN |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
EL5# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-16140 |
EL5# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16420 |
EL50..RHD DEALER OPTION |
1 | ||
| 88460-16420 |
EL50..RHD..3FC DEALER OPTION |
1 | ||
| 88460-16421 |
EL50..RHD MAKER OPTION |
1 | ||
| 88460-16480 |
EL50..RHD |
1 | ||
| 88460-16330 |
EL50..RHD |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
EL5# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-16130 |
EL50..RHD |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-74180 |
EL5# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16070 |
EL5# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
EL5# |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-16280 |
EL50..RHD |
1 | ||
| 88648-16220 |
EL5# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16260 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16321 |
EL50..RHD DEALER OPTION |
1 | ||
| 88711-16261 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16400 |
EL50..RHD DEALER OPTION |
1 | ||
| 88711-16370 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16430 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16460 |
EL50..RHD DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16390 |
EL50..RHD |
1 | ||
| 88712-16520 |
EL50..RHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-1G030 |
EL50..RHD |
1 | ||
| 88716-1G410 |
EL50..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-16880 |
EL50..RHD MAKER OPTION |
1 | ||
| 88716-1G080 |
EL50..RHD DEALER OPTION |
1 | ||
| 88716-16881 |
EL50..RHD MAKER OPTION |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16230 |
EL50..RHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-16050 |
EL5# |
1 | ||
| 88723-20040 |
EL5# |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-16020 |
EL5# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-2B640 | ||||
| 88467-16100 | ||||
| 88467-32060 | ||||
| 88469-16020 | ||||
| 88469-16040 | ||||
| 88688-1G340 | ||||
| 88688-1G560 | ||||
| 88718-16600 | ||||
| 88718-16630 | ||||
| 88718-16640 | ||||
| 90044-64009 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-04441 | ||||
| 90099-32145 | ||||
| 90179-06032 | ||||
| 90464-00696 | ||||
| 91511-60614 | ||||
| 91511-G0622 | ||||
| 91626-40618 | ||||
| 91631-60630 | ||||
| 91635-60618 | ||||
| 91635-60635 | ||||
| 91651-60616 | ||||
| 93315-15010 | ||||
| 93385-15010 | ||||
| 93385-16030 | ||||
| 93385-56025 | ||||

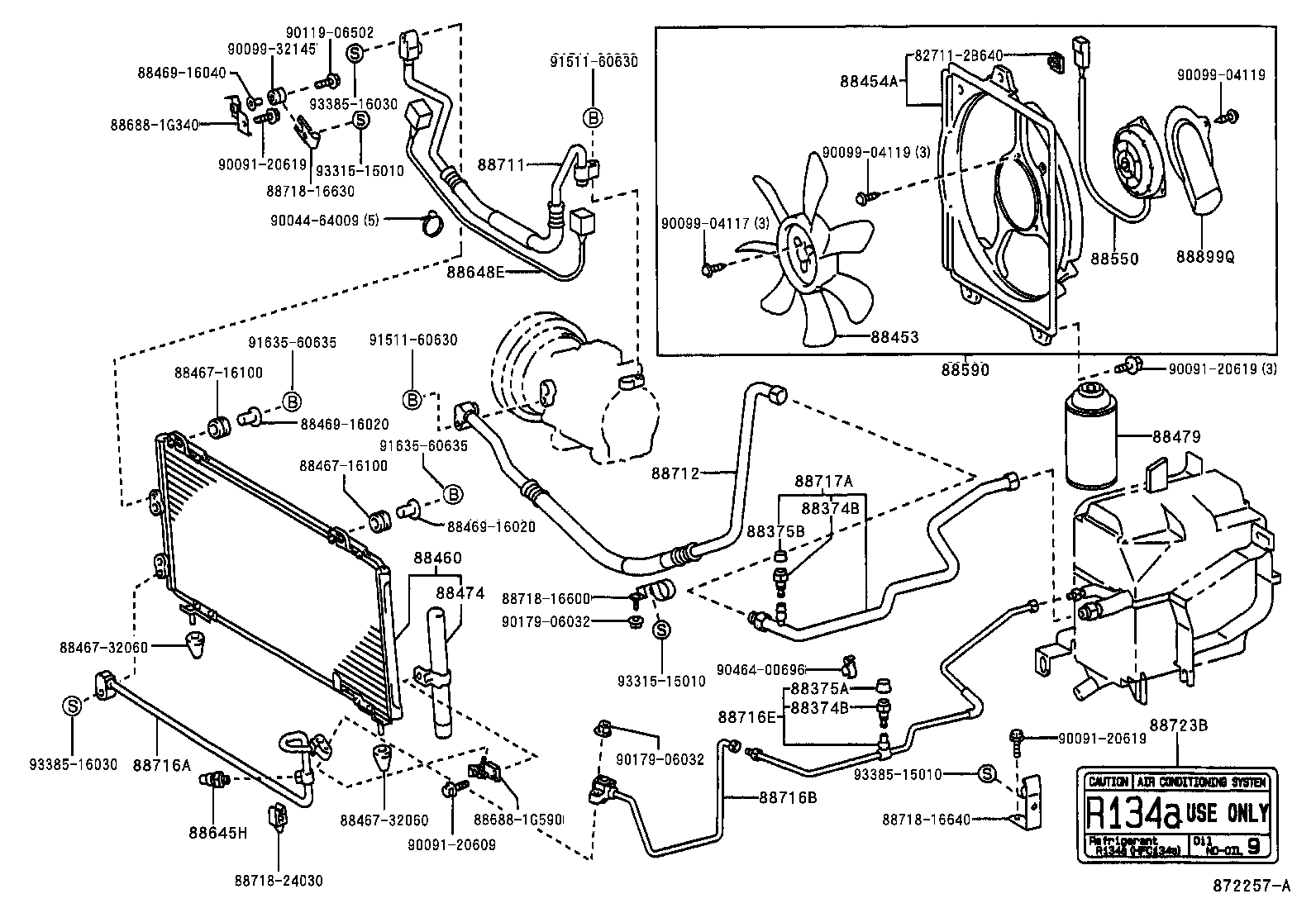

ILLUST NO. 1 OF 2(9608-9712)RHD
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL5#..GEN |
2 | ||
| 88374-30010 |
EL5# |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL5#..GEN |
2 | ||
| 88374-30010 |
EL5# |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
EL5# |
1 | ||
| 88375-30280 |
EL5#..GEN |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
EL5# |
1 | ||
| 88375-30290 |
EL5#..GEN |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
EL5# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-16140 |
EL5# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16420 |
EL50..RHD DEALER OPTION |
1 | ||
| 88460-16420 |
EL50..RHD..3FC DEALER OPTION |
1 | ||
| 88460-16421 |
EL50..RHD MAKER OPTION |
1 | ||
| 88460-16480 |
EL50..RHD |
1 | ||
| 88460-16330 |
EL50..RHD |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
EL5# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-16130 |
EL50..RHD |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
EL5#..GEN 200G |
2 | ||
| 90986-02007 |
EL5#..GEN 250G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-74180 |
EL5# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16070 |
EL5# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
EL5# |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-16280 |
EL50..RHD |
1 | ||
| 88648-16220 |
EL5# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16260 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16321 |
EL50..RHD DEALER OPTION |
1 | ||
| 88711-16261 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16400 |
EL50..RHD DEALER OPTION |
1 | ||
| 88711-16370 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16430 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16460 |
EL50..RHD DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16390 |
EL50..RHD |
1 | ||
| 88712-16520 |
EL50..RHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-1G030 |
EL50..RHD |
1 | ||
| 88716-1G410 |
EL50..RHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-1G090 |
EL50..RHD..3FC DEALER OPTION |
1 | ||
| 88716-1G091 |
EL50..RHD |
1 | ||
| 88716-1G090 |
EL50..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-16880 |
EL50..RHD MAKER OPTION |
1 | ||
| 88716-1G080 |
EL50..RHD DEALER OPTION |
1 | ||
| 88716-16881 |
EL50..RHD MAKER OPTION |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16230 |
EL50..RHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-16050 |
EL5# |
1 | ||
| 88723-20040 |
EL5# |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-16020 |
EL5# |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88467-16100 | ||||
| 88467-32050 | ||||
| 88467-32060 | ||||
| 88469-16020 | ||||
| 88469-16040 | ||||
| 88688-1G340 | ||||
| 88688-1G560 | ||||
| 88718-16600 | ||||
| 88718-16630 | ||||
| 88718-16640 | ||||
| 90044-64009 | ||||
| 90091-20619 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-04430 | ||||
| 90099-32145 | ||||
| 90119-06502 | ||||
| 90179-06032 | ||||
| 90464-00696 | ||||
| 91511-60630 | ||||
| 91651-60616 | ||||
| 93315-15010 | ||||
| 93385-15010 | ||||
| 93385-16030 | ||||
| 93385-56025 | ||||
ILLUST NO. 1 OF 2(9712- )RHD
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL5#..GEN |
2 | ||
| 88374-30010 |
EL5# |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL5#..GEN |
2 | ||
| 88374-30010 |
EL5# |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
EL5# |
1 | ||
| 88375-30280 |
EL5#..GEN |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
EL5# |
1 | ||
| 88375-30290 |
EL5#..GEN |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
EL5# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-16140 |
EL5# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16420 |
EL50..RHD DEALER OPTION |
1 | ||
| 88460-16420 |
EL50..RHD..3FC DEALER OPTION |
1 | ||
| 88460-16421 |
EL50..RHD MAKER OPTION |
1 | ||
| 88460-16480 |
EL50..RHD |
1 | ||
| 88460-16330 |
EL50..RHD |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
EL50..GCC;EL50..RHD |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-74180 |
EL5# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16070 |
EL5# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
EL5# |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-16280 |
EL50..RHD |
1 | ||
| 88648-16220 |
EL5# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16260 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16321 |
EL50..RHD DEALER OPTION |
1 | ||
| 88711-16261 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16400 |
EL50..RHD DEALER OPTION |
1 | ||
| 88711-16370 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16430 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16460 |
EL50..RHD DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16390 |
EL50..RHD |
1 | ||
| 88712-16520 |
EL50..RHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-1G030 |
EL50..RHD |
1 | ||
| 88716-1G410 |
EL50..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-16880 |
EL50..RHD MAKER OPTION |
1 | ||
| 88716-1G080 |
EL50..RHD DEALER OPTION |
1 | ||
| 88716-16881 |
EL50..RHD MAKER OPTION |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16230 |
EL50..RHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-16050 |
EL5# |
1 | ||
| 88723-20040 |
EL5# |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-16020 |
EL5# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-2B640 | ||||
| 88467-16100 | ||||
| 88467-32060 | ||||
| 88469-16020 | ||||
| 88469-16040 | ||||
| 88688-1G340 | ||||
| 88688-1G590 | ||||
| 88718-16600 | ||||
| 88718-16630 | ||||
| 88718-16640 | ||||
| 88718-24030 | ||||
| 90044-64009 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-32145 | ||||
| 90179-06032 | ||||
| 90464-00696 | ||||
| 91511-60614 | ||||
| 91626-40618 | ||||
| 91635-60635 | ||||
| 91651-60616 | ||||
| 93315-15010 | ||||
| 93385-15010 | ||||
| 93385-16030 | ||||
ILLUST NO. 1 OF 2(9712- )RHD
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL5#..GEN |
2 | ||
| 88374-30010 |
EL5# |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
EL5#..GEN |
2 | ||
| 88374-30010 |
EL5# |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
EL5# |
1 | ||
| 88375-30280 |
EL5#..GEN |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
EL5# |
1 | ||
| 88375-30290 |
EL5#..GEN |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20080 |
EL5# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-16140 |
EL5# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16420 |
EL50..RHD DEALER OPTION |
1 | ||
| 88460-16420 |
EL50..RHD..3FC DEALER OPTION |
1 | ||
| 88460-16421 |
EL50..RHD MAKER OPTION |
1 | ||
| 88460-16480 |
EL50..RHD |
1 | ||
| 88460-16330 |
EL50..RHD |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
EL50..GCC;EL50..RHD |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
EL5#..GEN 200G |
2 | ||
| 90986-02007 |
EL5#..GEN 250G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-74180 |
EL5# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16070 |
EL5# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
EL5# |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-16280 |
EL50..RHD |
1 | ||
| 88648-16220 |
EL5# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16260 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16321 |
EL50..RHD DEALER OPTION |
1 | ||
| 88711-16261 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16400 |
EL50..RHD DEALER OPTION |
1 | ||
| 88711-16370 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16430 |
EL50..RHD MAKER OPTION |
1 | ||
| 88711-16460 |
EL50..RHD DEALER OPTION |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16390 |
EL50..RHD |
1 | ||
| 88712-16520 |
EL50..RHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-1G030 |
EL50..RHD |
1 | ||
| 88716-1G410 |
EL50..RHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-1G090 |
EL50..RHD..3FC DEALER OPTION |
1 | ||
| 88716-1G091 |
EL50..RHD |
1 | ||
| 88716-1G090 |
EL50..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-16880 |
EL50..RHD MAKER OPTION |
1 | ||
| 88716-1G080 |
EL50..RHD DEALER OPTION |
1 | ||
| 88716-16881 |
EL50..RHD MAKER OPTION |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16230 |
EL50..RHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-16050 |
EL5# |
1 | ||
| 88723-20040 |
EL5# |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-16020 |
EL5# |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88467-16100 | ||||
| 88467-32060 | ||||
| 88469-16020 | ||||
| 88469-16040 | ||||
| 88688-1G340 | ||||
| 88688-1G590 | ||||
| 88718-16600 | ||||
| 88718-16630 | ||||
| 88718-16640 | ||||
| 88718-24030 | ||||
| 90044-64009 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-32145 | ||||
| 90119-06502 | ||||
| 90179-06032 | ||||
| 90464-00696 | ||||
| 91511-60630 | ||||
| 91635-60635 | ||||
| 93315-15010 | ||||
| 93385-15010 | ||||
| 93385-16030 | ||||
ILLUST NO. 2 OF 2(9409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-14125 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
