EL50R-AEHDS (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )

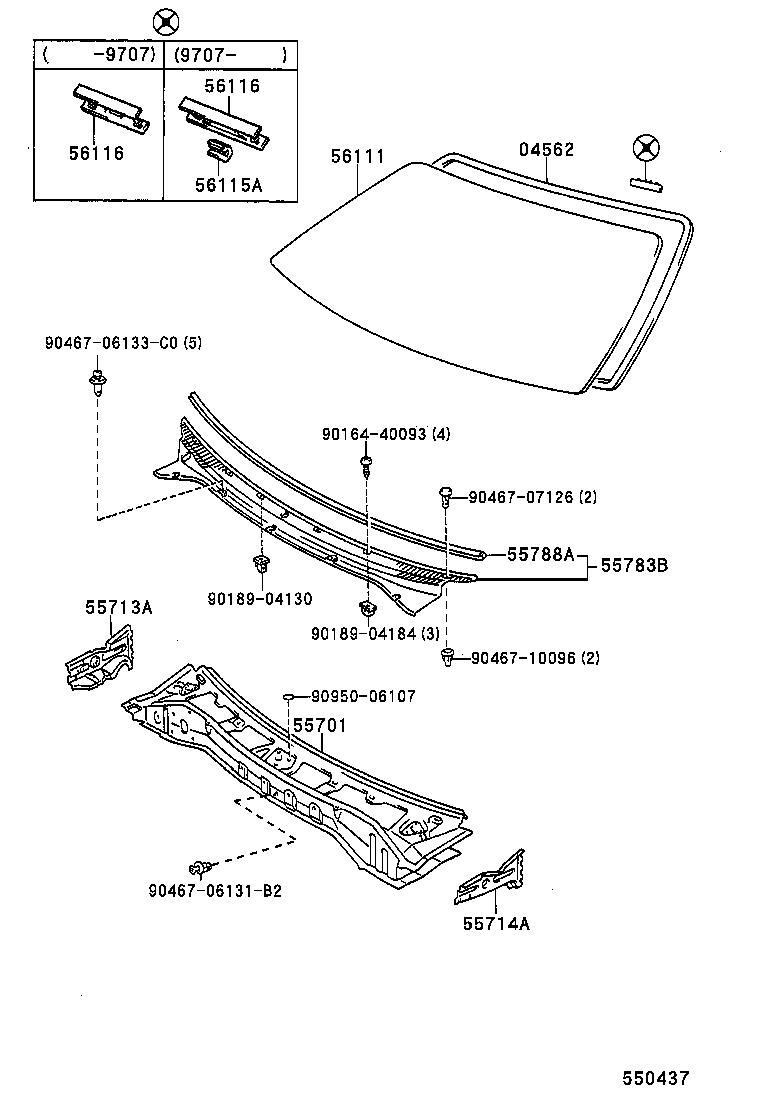

Click highlighted areas on diagram

diagram 04562 55701 55713A 55714A 55783B 55788A 56111 56115A 56116 56116 9016440093 9018904130 9018904184 9046706131B2 9046706133C0 9046707126 9046710096 9095006107
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

EL5#

 1
55701 - PANEL SUB-ASSY, COWL
55700-16270

EL50..RHD

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-16060

EL5#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-16060

EL5#

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55708-16100

EL50..RHD

 1
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-16090

EL5#

 1
55788-16091

EL5#

 1
56111 - GLASS, WINDSHIELD
56111-16310

EL5#

*LAM,T=4.7,CLEAR

 1
56111-16320

EL5#

*LAM,T=4.7,BLUE

 1
56111-16430

EL5#..GEN

*LAM,T=4.7,GREEN

 1
56111-16430

EL5#

*LAM,T=4.7,GREEN

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-12050

EL5#

 2
56116 - SPACER, WINDSHIELD GLASS
56116-22050

EL5#

 2
56116-16050

EL5#

 2
56116 - SPACER, WINDSHIELD GLASS
56116-22050

EL5#

 2
56116-16050

EL5#

 2
Common parts
90164-40093
90189-04130
90189-04184
90467-06131B2
90467-06133C0
90467-07126
90467-10096
90950-06107
