EL50L-AEMDSV (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )

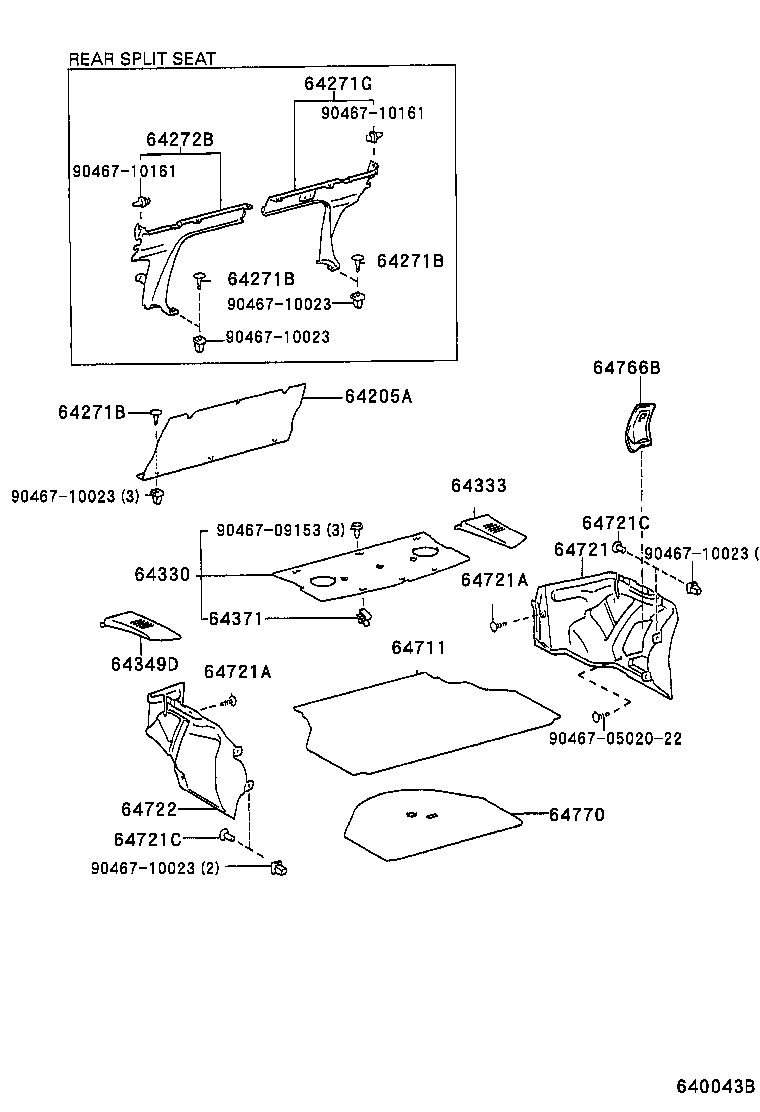

Click highlighted areas on diagram

diagram 64205A 64271B 64271B 64271B 64271G 64272B 64330 64333 64349D 64371 64711 64721 64721A 64721A 64721C 64721C 64722 64766B 64770 904670502022 9046709153 9046710023 9046710023 9046710023 9046710023 9046710023 9046710161 9046710161
Part # Description Qty Price
64205A - COVER SUB-ASSY, ROOM PARTITION
64275-16030C0

EL5#

BLACK,TRIM1#,4#

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07115C0

EL5#

BLACK,TRIM1#,4#

 3
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07115C0

EL5#

BLACK,TRIM1#,4#

 3
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07115C0

EL5#

BLACK,TRIM1#,4#

 3
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-16560E0

EL5#

OAK,TRIM4#

 1
64330-16560B0

EL5#

BLUISH GRAY,TRIM1#

 1
64330-16830B0

EL5#..LHD

W(HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#

 1
64330-16830E0

EL5#..LHD

W(HIGH MOUNT STOP LAMP),OAK,TRIM4#

 1
64330-16810E0

EL5#

OAK,TRIM4#

 1
64330-16810B0

EL5#

SHADOW GRAY,TRIM1#

 1
64333 - COVER, PACKAGE TRAY TRIM, SIDE
64333-16070E0

EL5#

OAK,TRIM4#

 1
64333-16070B1

EL5#

SHADOW GRAY,TRIM1#

 1
64349D - COVER, PACKAGE TRAY TRIM SIDE, LH
64349-16050E0

EL5#

OAK,TRIM4#

 1
64349-16050B1

EL5#

SHADOW GRAY,TRIM1#

 1
64371 - RETAINER, PACKAGE TRAY TRIM
64371-16010

EL5#

 3
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-16190C0

EL5#

BLACK,TRIM1#,4#

 1
64711-16130C0

EL5#

BLACK,TRIM1#,4#

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-16070C0

EL5#

BLACK,TRIM1#,4#

 1
64721-16100C0

EL5#

BLACK,TRIM1#,4#

 1
64721-16071C0

EL5#

BLACK,TRIM1#,4#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0509622

EL5#

BLACK,TRIM1#,4#

 7
90467-0509622

EL5#

BLACK,TRIM1#,4#

 8
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0509622

EL5#

BLACK,TRIM1#,4#

 7
90467-0509622

EL5#

BLACK,TRIM1#,4#

 8
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-14041C0

EL5#

BLACK,TRIM1#,4#

 4
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-14041C0

EL5#

BLACK,TRIM1#,4#

 4
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-16070C0

EL5#

BLACK,TRIM1#,4#

 1
64722-16120C0

EL5#

BLACK,TRIM1#,4#

 1
64722-16071C0

EL5#

BLACK,TRIM1#,4#

 1
64766B - COVER, QUARTER TRIM JACK
64766-16050C0

EL5#

BLACK,TRIM1#,4#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-16240

EL5#

 1
Common parts
90467-0502022
90467-09153
90467-10023
90467-10161
