EL50L-AEMDSV (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )2E

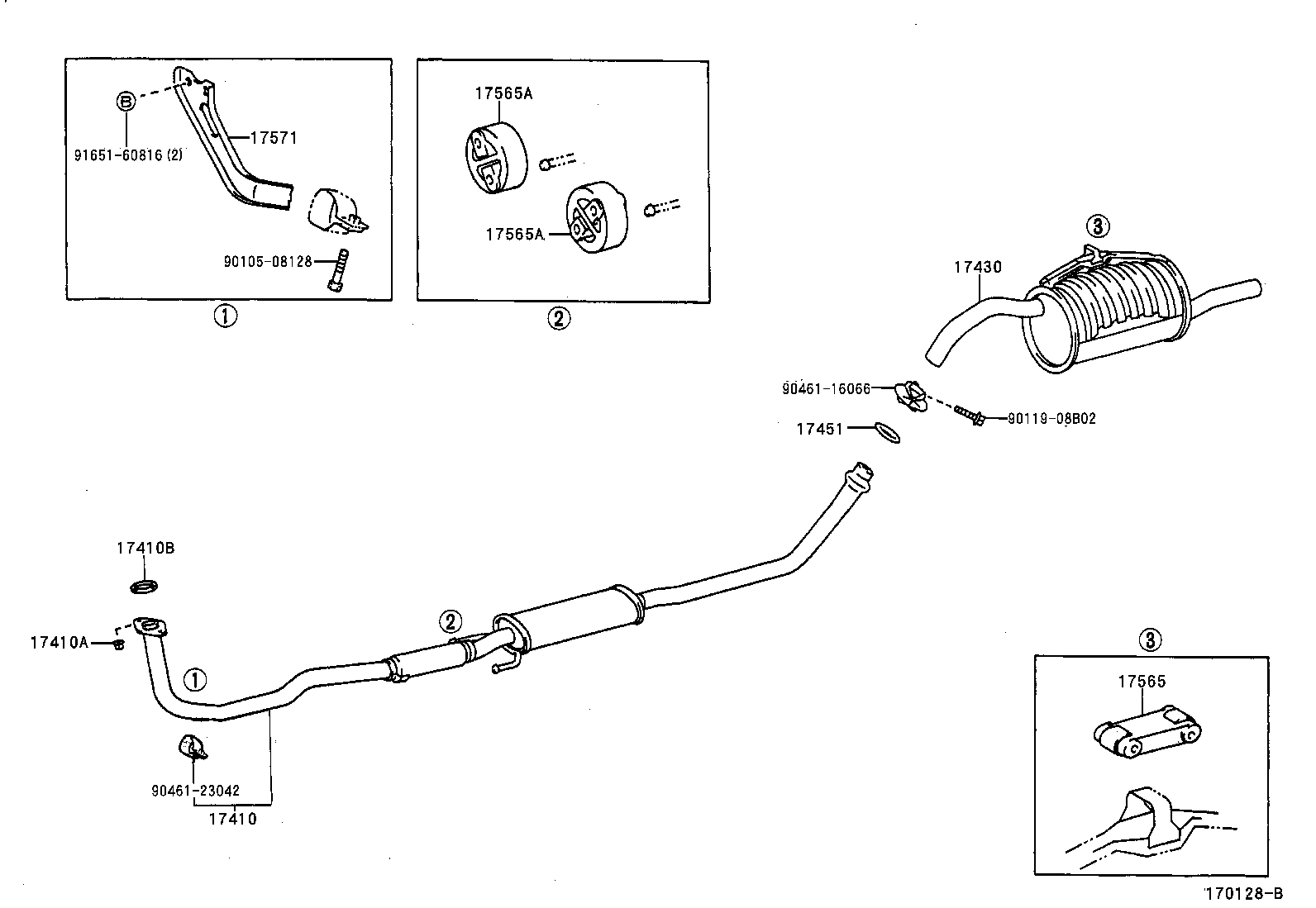

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17430 17451 17565 17565A 17565A 17565A 17571 9010508128 9011908B02 9046116066 9046123042 9165160816
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-11760

2E..EL50

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2E..EL50

 2
90179-10070

2E,5EFE..EL5#

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

2E,5EFE..EL5#

 1
90917-06061

2E..EL50

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-11780

2E..EL50

 1
17451 - GASKET, EXHAUST PIPE
90917-06081

2E..EL50

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17566-11150

2E,5EFE..EL5#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

2E,5EFE..EL5#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

2E,5EFE..EL5#

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

2E,5EFE..EL5#

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-11020

2E..EL50

 1
Common parts
90105-08128
90119-08B02
90461-16066
90461-23042
91651-60816
