EL50L-AEMDS (1994)
Toyota Tercel
Production
Sep 1994
-
Jul 1999
Engine
2E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

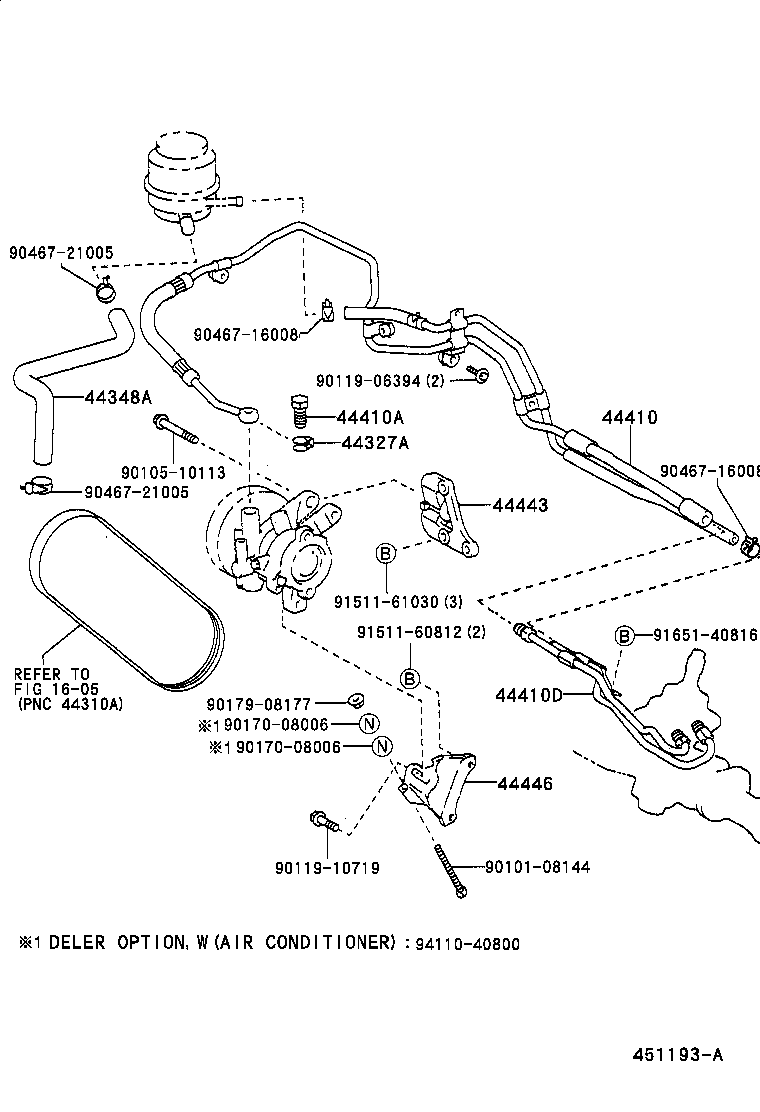

(9610-9712)EL50..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
EL5# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-16160 |
EL50..LHD |
1 | ||
| 44348-16180 |
EL50..LHD |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-16370 |
EL50..LHD |
1 | ||
| 44410-16430 |
EL50..LHD |
1 | ||
| 44410-16203 |
EL50..LHD |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16012 |
EL5# |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-17007 |
EL5#..LHD |
2 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-17007 |
EL5#..LHD |
2 | ||
| 44410D - TUBE ASSY, PRESSURE FEED, NO.2 | ||||
| 44410-10190 |
EL5#..LHD |
1 | ||
| 44410-16340 |
EL5#..LHD |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 44235-16010 |
EL5#..LHD..GEN |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-12070 |
EL50 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-16061 |
EL50 |
1 | ||
| Common parts | ||||
| 90101-08144 | ||||
| 90105-10113 | ||||
| 90119-06394 | ||||
| 90119-10719 | ||||
| 90170-08006 | ||||
| 90179-08177 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91511-60812 | ||||
| 91512-61030 | ||||
| 91651-40816 | ||||
| 94110-40800 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(9712- )EL50..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
EL5# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-16160 |
EL50..LHD |
1 | ||
| 44348-16180 |
EL50..LHD |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-16370 |
EL50..LHD |
1 | ||
| 44410-16430 |
EL50..LHD |
1 | ||
| 44410-16203 |
EL50..LHD |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16012 |
EL5# |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-17007 |
EL5#..LHD |
2 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-17007 |
EL5#..LHD |
2 | ||
| 44410D - TUBE ASSY, PRESSURE FEED, NO.2 | ||||
| 44410-10190 |
EL5#..LHD |
1 | ||
| 44410-16340 |
EL5#..LHD |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 44235-16010 |
EL5#..LHD..GEN |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-12070 |
EL50 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-16061 |
EL50 |
1 | ||
| Common parts | ||||
| 90101-08144 | ||||
| 90105-10113 | ||||
| 90119-06394 | ||||
| 90119-10719 | ||||
| 90170-08006 | ||||
| 90179-08177 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91511-60812 | ||||
| 91512-61030 | ||||
| 91651-40816 | ||||
| 94130-60800 | ||||
| Linked diagrams | ||||
| 1605 | ||||
(9409-9508)LHD ; (9508-9610)EL50..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
EL5# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-16160 |
EL50..LHD |
1 | ||
| 44348-16180 |
EL50..LHD |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-16370 |
EL50..LHD |
1 | ||
| 44410-16430 |
EL50..LHD |
1 | ||
| 44410-16203 |
EL50..LHD |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16012 |
EL5# |
1 | ||
| 44410D - TUBE ASSY, PRESSURE FEED, NO.2 | ||||
| 44410-10190 |
EL5#..LHD |
1 | ||
| 44410-16340 |
EL5#..LHD |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-12070 |
EL50 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-16061 |
EL50 |
1 | ||
| Common parts | ||||
| 90101-08144 | ||||
| 90105-10113 | ||||
| 90119-06394 | ||||
| 90119-10719 | ||||
| 90170-08006 | ||||
| 90179-08177 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91511-60812 | ||||
| 91511-61030 | ||||
| 91651-40816 | ||||
| 94110-40800 | ||||
| Linked diagrams | ||||
| 1605 | ||||
