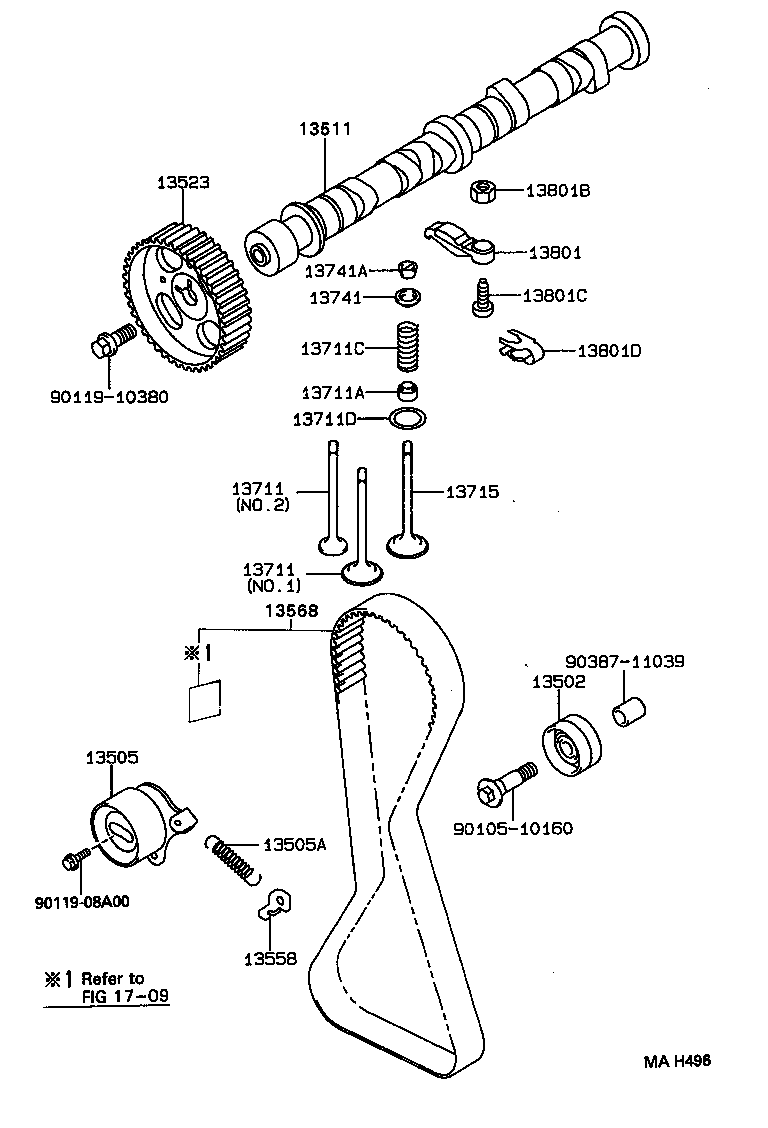

Toyota Tercel EL50 CAMSHAFT & VALVE

Part #	Description	Period	Qty
13502 - IDLER SUB-ASSY, TIMING BELT, NO.2
13503-10011	2E..EL50	09/1994 - 12/2999	1
13505 - IDLER SUB-ASSY, TIMING BELT, NO.1
13505-11010	2E..EL50	09/1994 - 03/1995	1
13505-11011	2E..EL50	03/1995 - 12/2999	1
13505A - SPRING, TENSION(FOR IDLER)
90506-16050	2E..EL50	09/1994 - 12/2999	1
13511 - CAMSHAFT
13501-11010	2E..EL50	09/1994 - 12/2999	1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-10040	2E..EL50	09/1994 - 12/2999	1
13558 - BRACKET, SPRING(FOR IDLER)
13558-11010	2E..EL50	09/1994 - 12/2999	1
13568 - BELT, TIMING
13568-19025	2E..EL50	09/1994 - 12/2999	1
13711 - VALVE, INTAKE
13711-10020	2E..EL50 NO.1	09/1994 - 12/2999	4
13712-10010	2E..EL50 NO.2	09/1994 - 12/2999	4
13711 - VALVE, INTAKE
13711-10020	2E..EL50 NO.1	09/1994 - 12/2999	4
13712-10010	2E..EL50 NO.2	09/1994 - 12/2999	4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02081	2E..EL50 EXHAUST SIDE	09/1994 - 12/2999	4
90913-02089	2E..EL50 INTAKE SIDE	09/1994 - 12/2999	8
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-35011	2E..EL50	09/1994 - 12/2999	12
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-19008	2E..EL50	09/1994 - 12/2999	12
13715 - VALVE, EXHAUST
13715-10030	2E..EL50	09/1994 - 12/2999	4
13741 - RETAINER, VALVE SPRING
13741-10020	2E..EL50	09/1994 - 12/2999	12
13741A - LOCK, VALVE SPRING RETAINER
90913-03021	2E..EL50	09/1994 - 12/2999	24
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-10021	2E..EL50	09/1994 - 12/2999	12
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-07004	2E..EL50	09/1994 - 12/2999	12
13801C - SCREW, VALVE ADJUSTING
13788-10013	2E..EL50	09/1994 - 12/2999	12
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
13935-10010	2E..EL50	09/1994 - 12/2999	12
Common parts
90105-10160
90119-08A00
90119-10380
90387-11039
Linked diagrams
1709

EL50L-AEMDS (1994)

(9409- )2E
