Toyota Tercel EL50 WIRING & CLAMP

EL50L-AEHDS (1994)

Toyota Tercel

Production Sep 1994 - Jul 1999

Engine 2E

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 8 OF 8(9409- )

Click highlighted areas on diagram

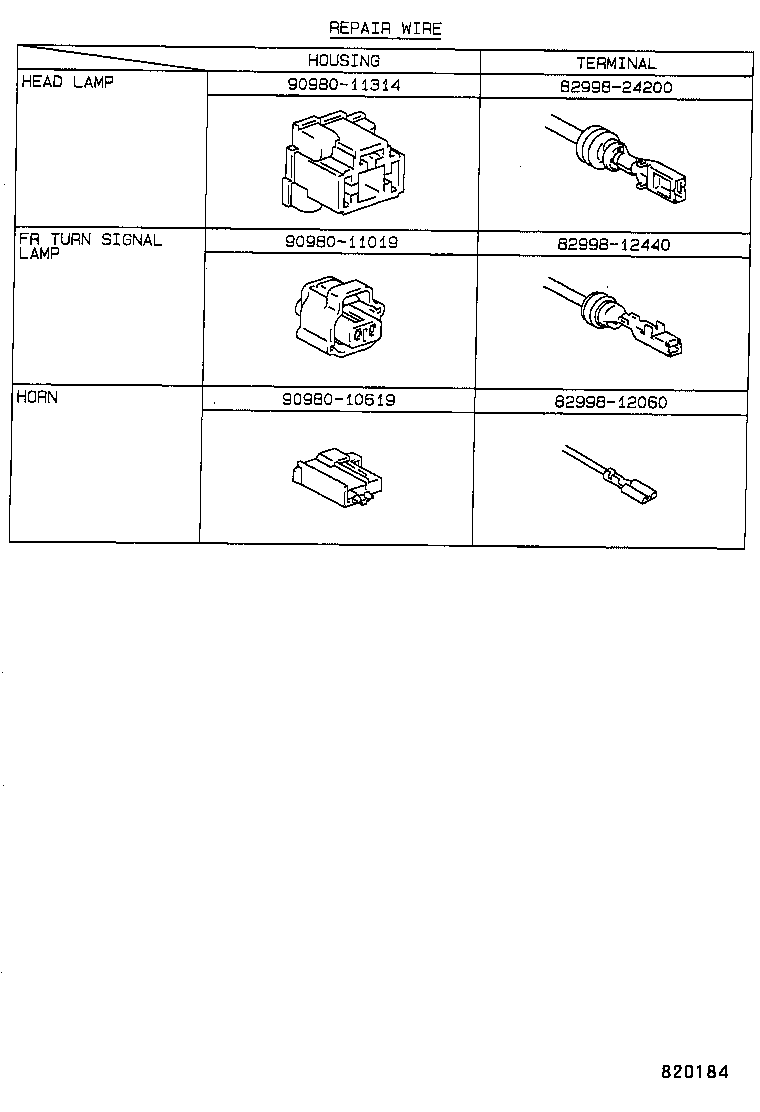

REPAIR WIRE

Part #	Description	Period	Qty	Price

ILLUST NO. 7 OF 8(9409- )

Click highlighted areas on diagram

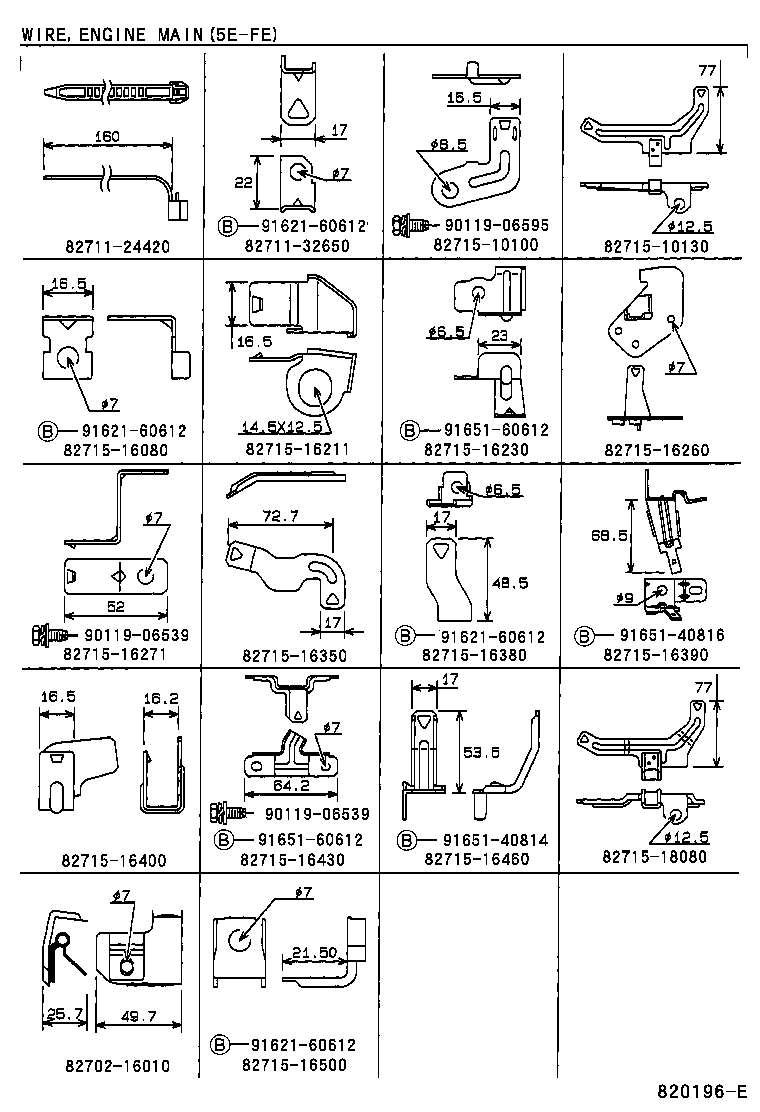

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82702-16010
82711-24420
82711-32650
82715-10100
82715-10130
82715-16080
82715-16211
82715-16230
82715-16260
82715-16271
82715-16350
82715-16380
82715-16390
82715-16400
82715-16430
82715-16460
82715-16500
82715-18080
90119-06539
90119-06595
91621-60612
91651-40814
91651-40816
91651-60612

ILLUST NO. 3 OF 8(9409- )LHD

Click highlighted areas on diagram

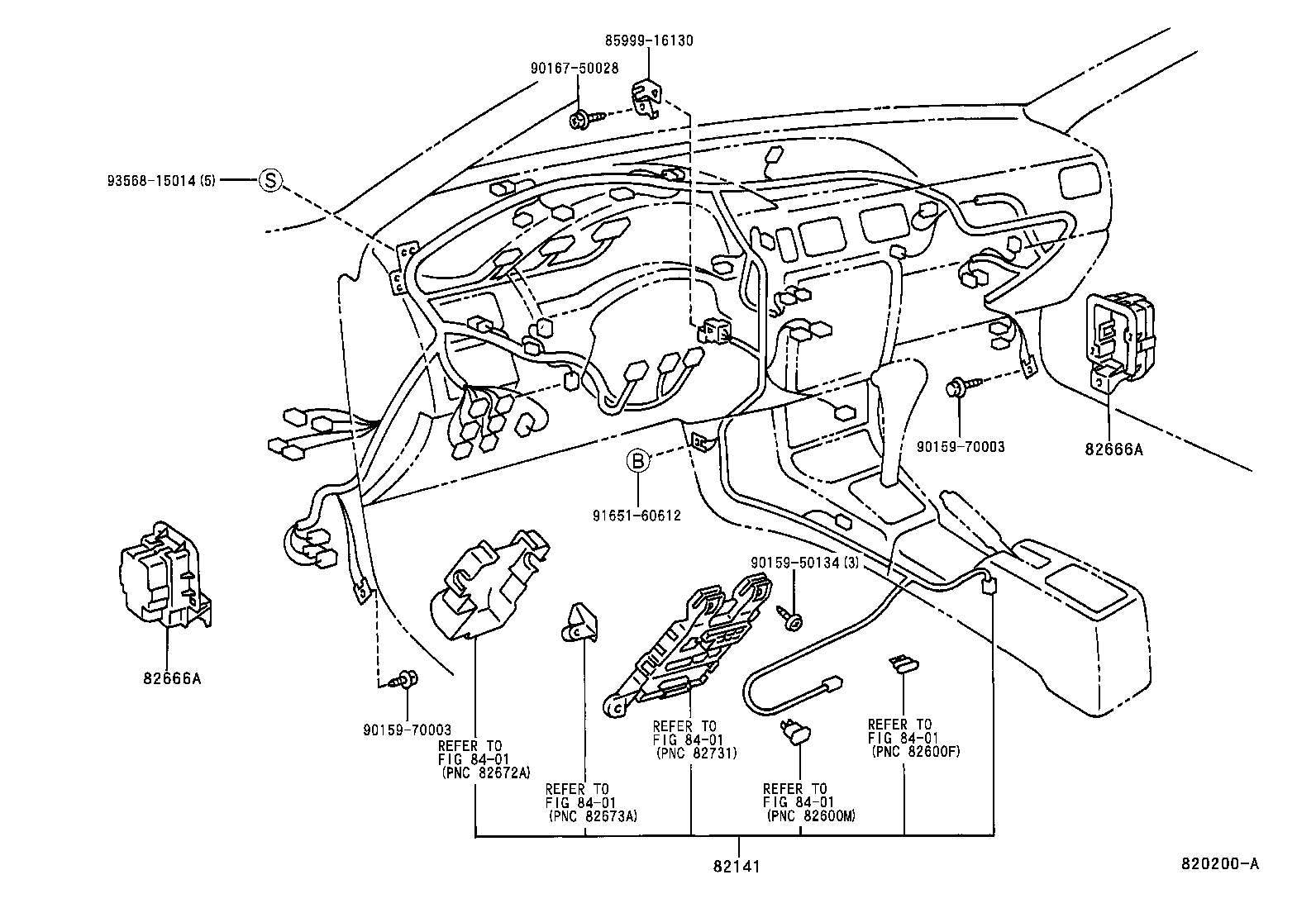

INSTRUMENT WIRE

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-16100	EL50..LHD	09/1994 - 08/1996	1
82141-16250	EL50..LHD..GEN W(POWER WINDOW)	09/1994 - 08/1995	1
82141-16252	EL50..LHD W(POWER WINDOW)	08/1996 - 12/1997	1
82141-16102	EL50..LHD..GEN	12/1997 - 12/2999	1
82141-16251	EL50..LHD W(POWER WINDOW)	08/1995 - 08/1996	1
82141-16101	EL50..LHD	08/1996 - 12/1997	1
82141-1G070	EL50..LHD W(*80,DRIVER SIDE)	12/1997 - 12/2999	1
82141-16253	EL50..LHD..GEN W(POWER WINDOW)	12/1997 - 12/2999	1
82141-1G090	EL50..LHD..GEN W(*80,DRIVER SIDE & POWER WINDOW)	12/1997 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-16020	EL5#	09/1994 - 12/2999	2
82666A - HOLDER, CONNECTOR NO.2
82666-16020	EL5#	09/1994 - 12/2999	2
Common parts
85999-16130
90159-50134
90159-70003
90167-50028
91651-60612
93568-15014
Linked diagrams
8401

ILLUST NO. 4 OF 8(9409- )

Click highlighted areas on diagram

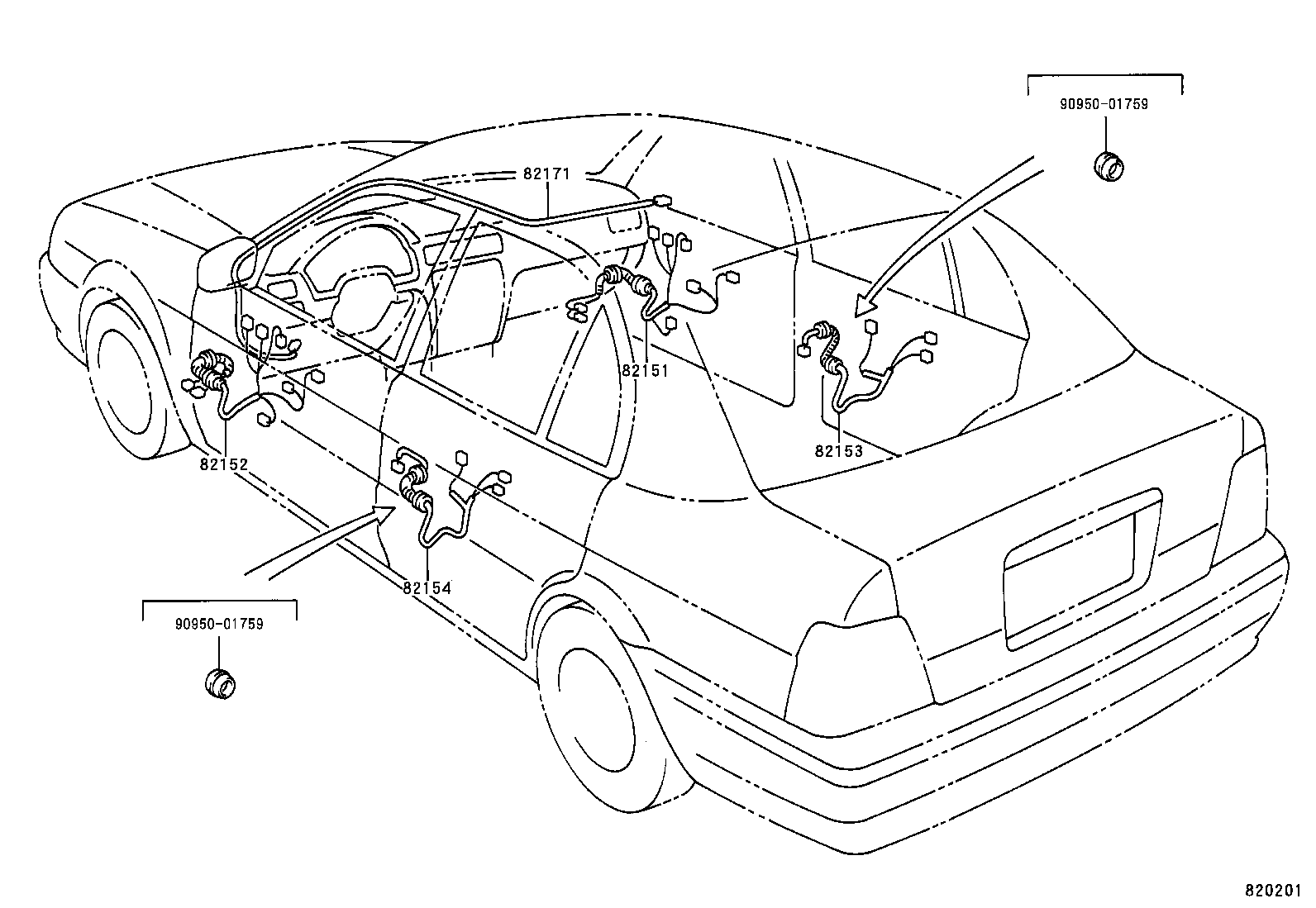

DOOR, ROOF WIRE

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-16480	EL5#..LHD W(POWER WINDOW)	08/1995 - 12/1997	1
82151-16420	EL5#	09/1994 - 12/2999	1
82151-16480	EL5#..LHD..GEN W(POWER WINDOW)	09/1994 - 08/1995	1
82151-16481	EL5#..LHD W(POWER WINDOW)	12/1997 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-16411	EL5#..LHD W(POWER WINDOW)	12/1997 - 12/2999	1
82152-16410	EL5#..LHD..GEN W(POWER WINDOW)	09/1994 - 08/1995	1
82152-16330	EL5#	09/1994 - 12/2999	1
82152-16410	EL5#..LHD W(POWER WINDOW)	08/1995 - 12/1997	1
82153 - WIRE, REAR DOOR, NO.1
82153-16100	EL5#..LHD	08/1995 - 12/2999	1
82153-16100	EL5#..LHD..GEN	09/1994 - 08/1995	1
82154 - WIRE, REAR DOOR, NO.2
82154-16100	EL5#..LHD	08/1995 - 12/2999	1
82154-16100	EL5#..LHD..GEN	09/1994 - 08/1995	1
82171 - WIRE, ROOF, NO.1
82171-16300	EL5#..LHD	09/1994 - 12/1997	1
82171-16301	EL5#..LHD	12/1997 - 12/2999	1
Common parts
90950-01759

ILLUST NO. 7 OF 8(9409- )

Click highlighted areas on diagram

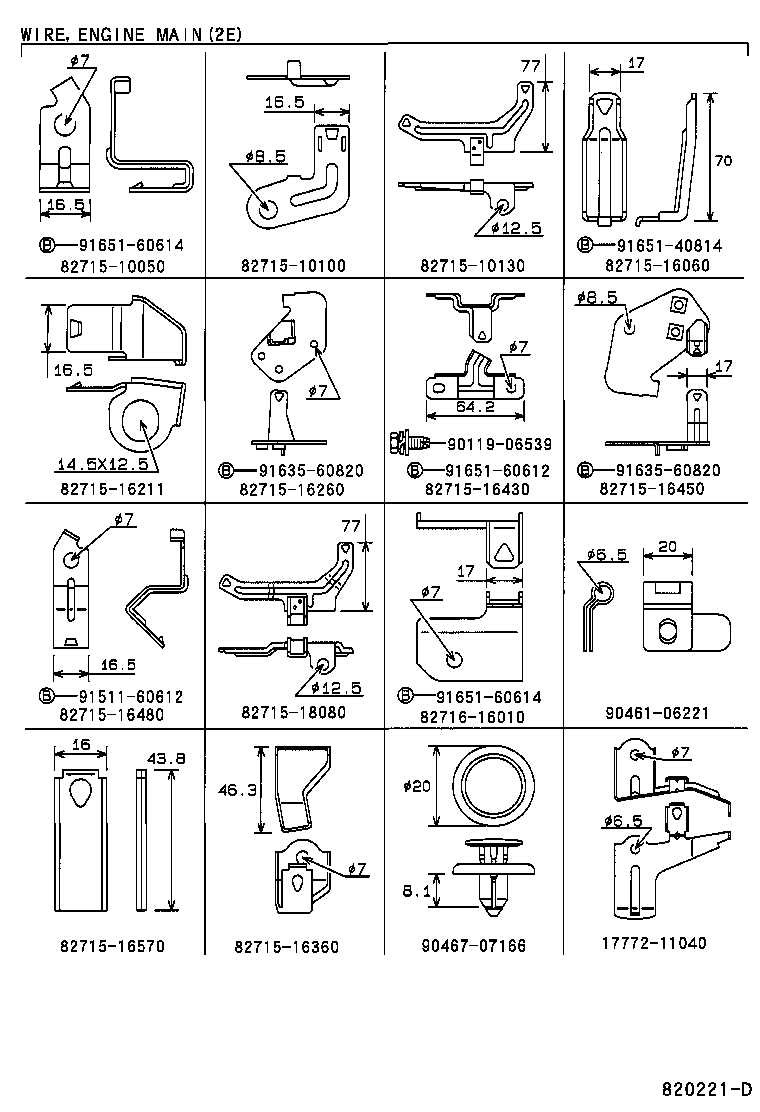

CLAMP & PROTECTOR

Part #	Description	Period	Qty	Price
Common parts
17772-11040
82715-10050
82715-10100
82715-10130
82715-16060
82715-16211
82715-16260
82715-16360
82715-16430
82715-16450
82715-16480
82715-16570
82715-18080
82716-16010
90119-06539
90461-06221
90467-07166
91511-60612
91635-60820
91651-40814
91651-60612
91651-60614

ILLUST NO. 7 OF 8(9409- )

Click highlighted areas on diagram

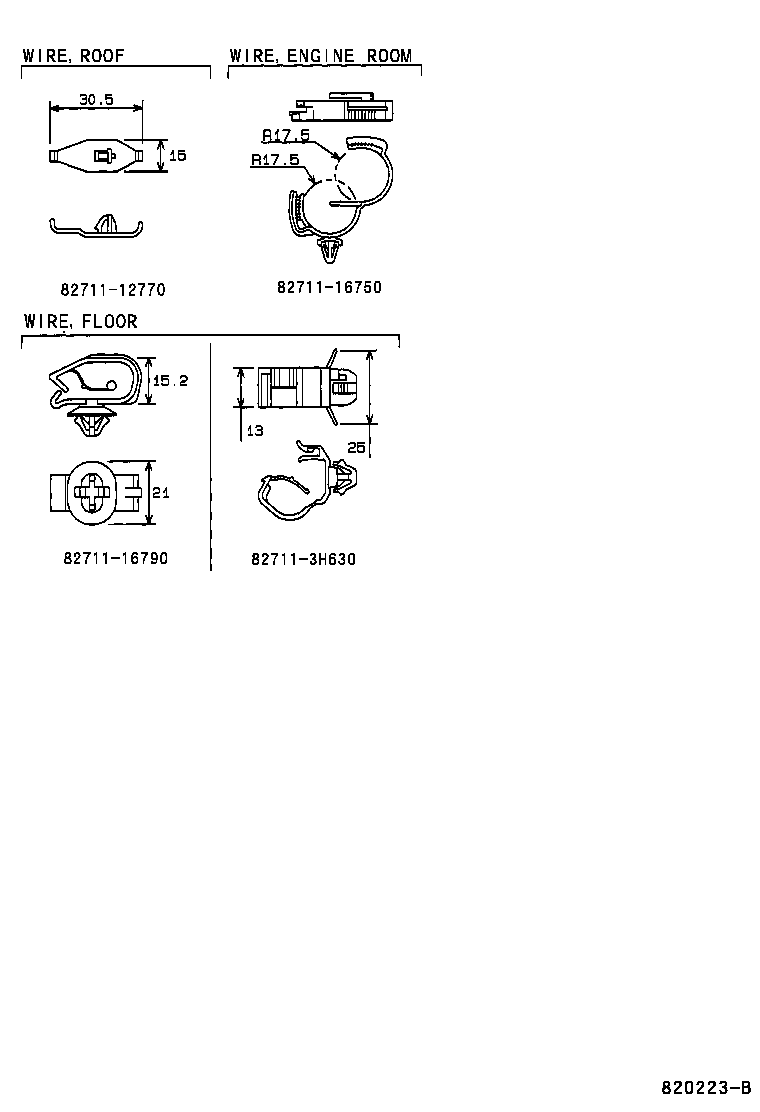

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-12770
82711-16750
82711-16790
82711-3H630

ILLUST NO. 1 OF 8(9409- )EL50

Click highlighted areas on diagram

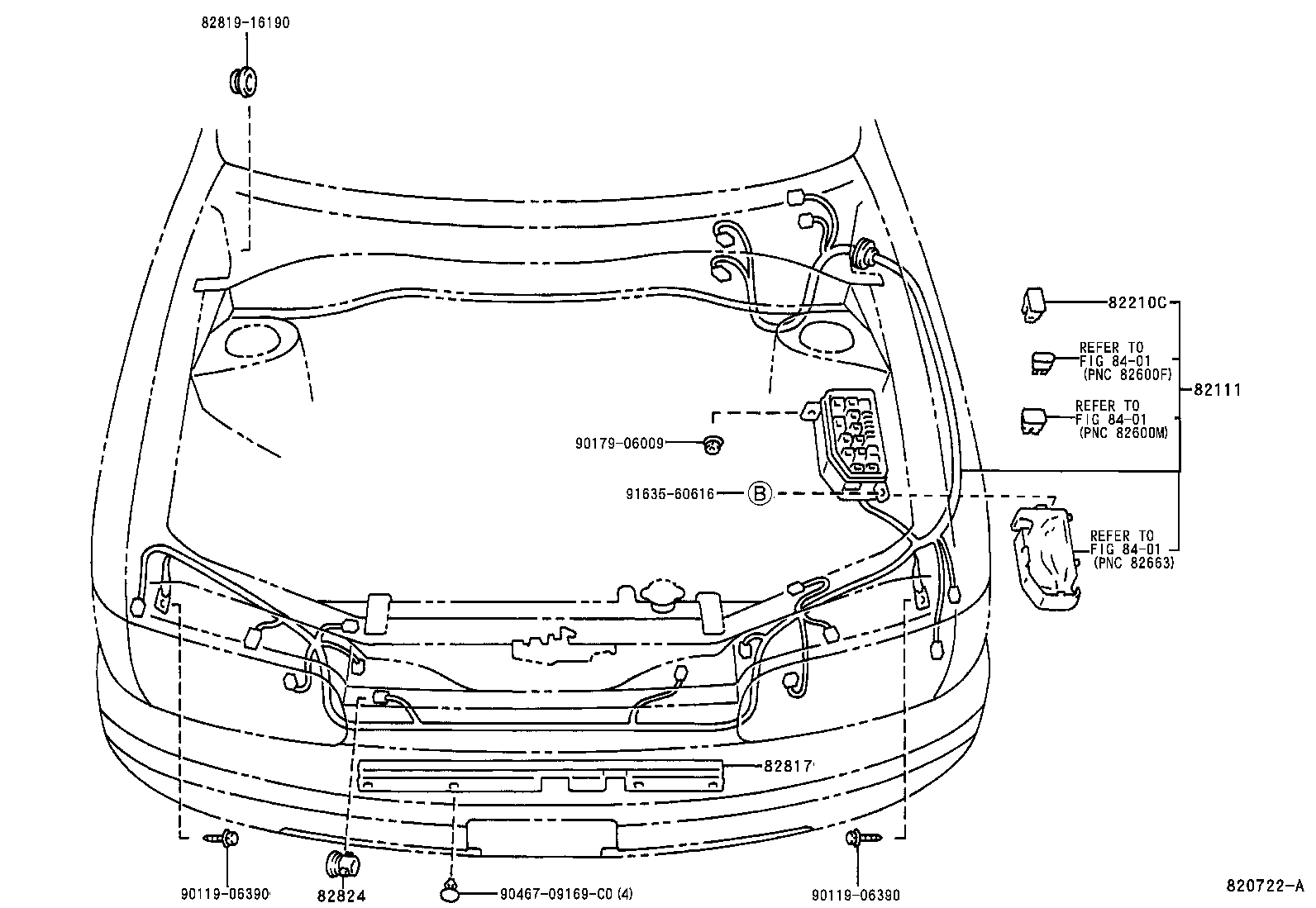

ENGINE ROOM WIRE

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1G531	EL50..LHD	08/1995 - 08/1996	1
82111-1G530	EL50..LHD	09/1994 - 08/1995	1
82111-1S080	EL50..LHD W(*80)	12/1997 - 12/2999	1
82111-1G532	EL50..LHD	08/1996 - 12/1997	1
82210C - FUSIBLE LINK
90982-08280	EL5# 30A,TERM.:FEMALE,PNK,YAZAKI	08/1996 - 12/2999	3
90982-08281	EL5#..LHD 40A,TERM.:FEMALE,GRN	08/1996 - 12/2999	1
90982-08202	EL50 60A,TERM.:MALE,YEL	08/1995 - 12/2999	1
90982-08277	EL5# 50A,TERM.:FEMALE,RED	12/1997 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-16480	EL5#..LHD	12/1997 - 02/1998	1
82817-16480	EL5#	09/1994 - 12/1997	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	EL5#	09/1994 - 12/2999	1
Common parts
82819-16190
90119-06390
90179-06009
90467-09169C0
91635-60616
Linked diagrams
8401

ILLUST NO. 2 OF 8(9409- )EL50

Click highlighted areas on diagram

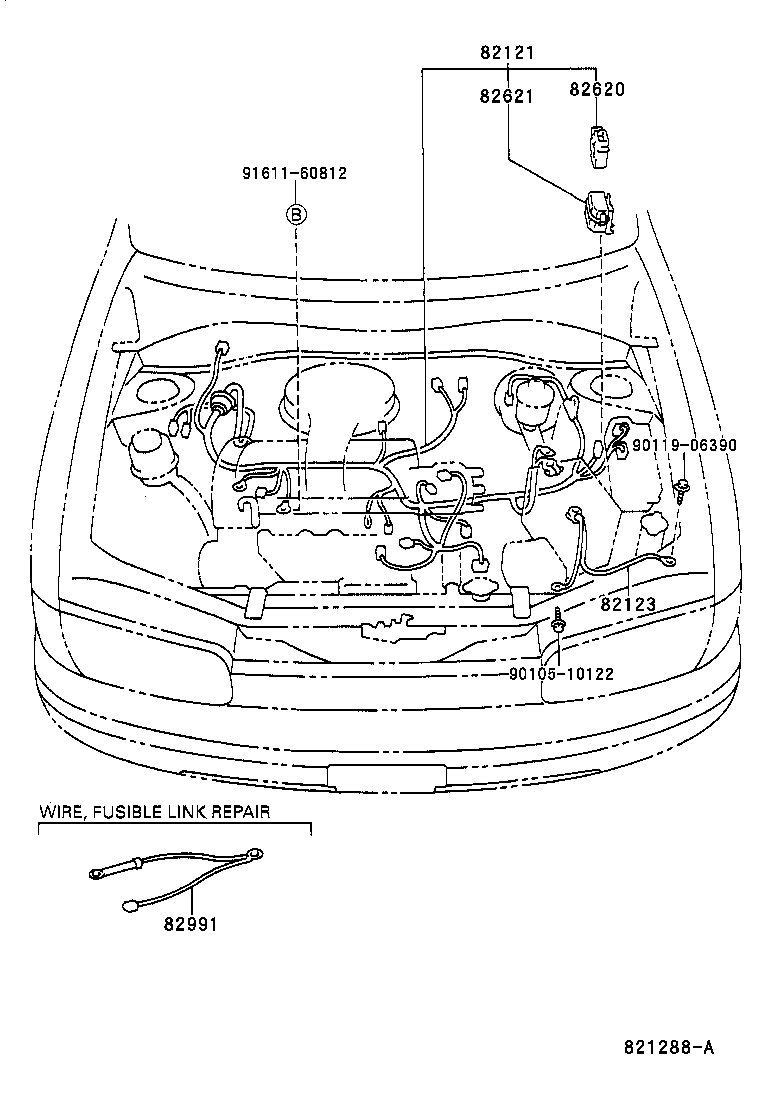

ENGINE WIRE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1G160	EL50..LHD..3FC	09/1994 - 08/1996	1
82121-1G161	EL50..LHD..3FC	08/1996 - 12/1997	1
82121-1G162	EL50..LHD..3FC	12/1997 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-16140	EL50..3FC W(BATTERY=32C24R)	09/1994 - 12/2999	1
82123-16110	EL50..3FC	09/1994 - 12/2999	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-16080	EL5#	09/1994 - 12/2999	1
82621 - COVER, FUSIBLE LINK
82621-16010	EL5#	09/1994 - 12/2999	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-16060	EL50..LHD..GEN	09/1994 - 12/2999	1
Common parts
90105-10122
90119-06390
91611-60812

ILLUST NO. 6 OF 8(9409- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07341	EL5# RH	09/1994 - 12/2999	1
90980-07375	EL5# LH	09/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EL5# RH	09/1994 - 12/2999	1
90980-07375	EL5# LH	09/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EL5# RH	09/1994 - 12/2999	1
90980-07375	EL5# LH	09/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EL5# RH	09/1994 - 12/2999	1
90980-07375	EL5# LH	09/1994 - 12/2999	1
Common parts
90105-10122
90119-06390
91651-60816

ILLUST NO. 5 OF 8(9409- )

Click highlighted areas on diagram

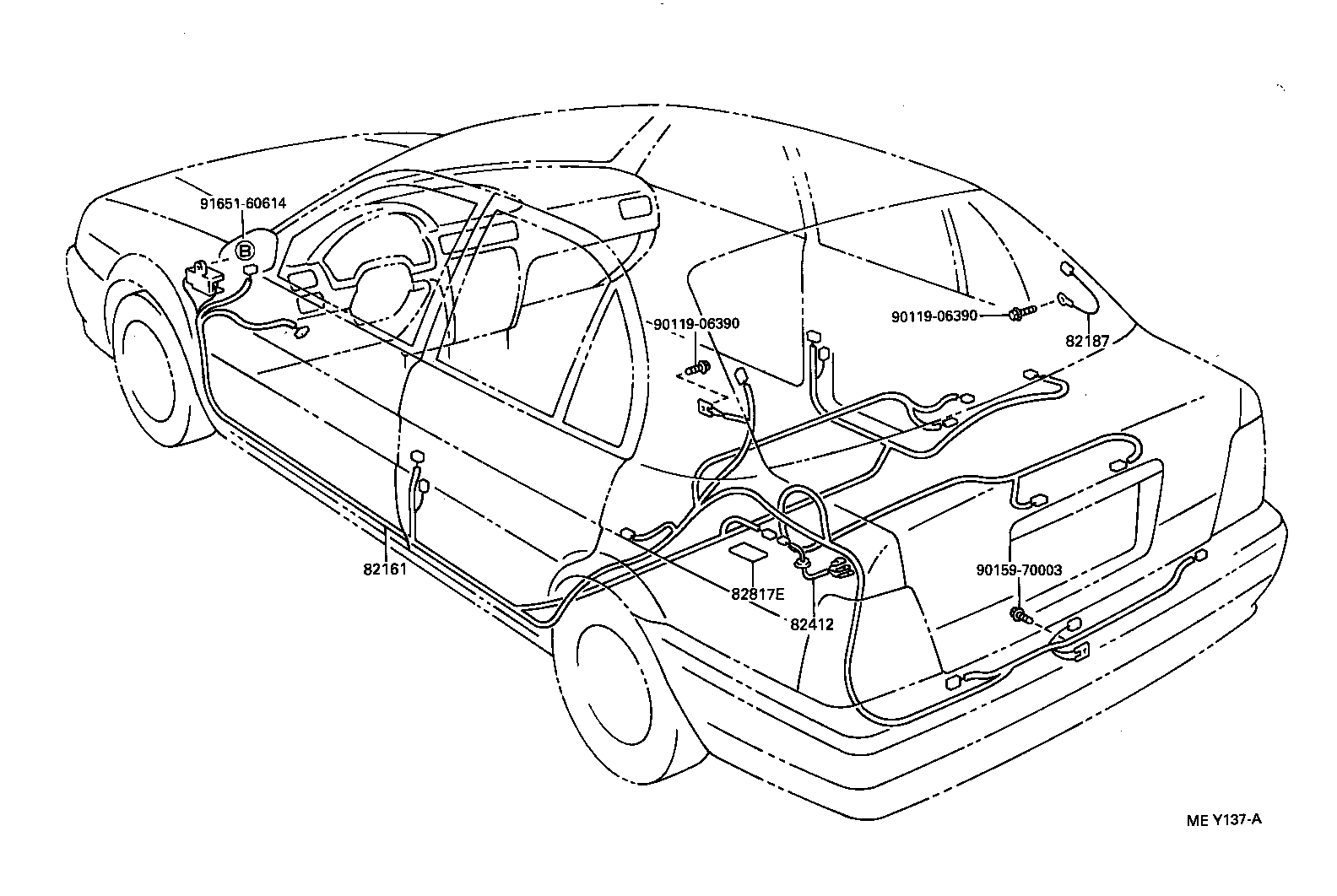

FLOOR, LUGGAGE WIRE

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-1G251	EL5#..LHD..GEN W(POWER WINDOW)	08/1996 - 12/1997	1
82161-1G240	EL5#..LHD..GEN	09/1994 - 08/1996	1
82161-1G250	EL5#..LHD..GEN W(POWER WINDOW)	09/1994 - 08/1996	1
82161-1G241	EL5#..LHD..GEN	08/1996 - 12/1997	1
82161-1G710	EL5#..LHD..GEN W(*80)	12/1997 - 12/2999	1
82161-1G720	EL5#..LHD..GEN W(*80,DRIVER SIDE & POWER WINDOW)	12/1997 - 12/2999	1
82161-1G252	EL5#..LHD..GEN W(POWER WINDOW)	12/1997 - 12/2999	1
82161-1G242	EL5#..LHD..GEN	12/1997 - 12/2999	1
82187 - WIRE, REAR WINDOW, NO.2
82187-16090	EL5#	09/1994 - 12/2999	1
82412 - WIRE, FUEL GAGE
82412-10070	EL50	09/1994 - 08/1996	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
61824-50020	EL5# 75 X 90	08/1995 - 08/1996	1
82817-16410	EL5#	09/1994 - 08/1995	1
61824-50020	EL5#	08/1996 - 12/1997	1
Common parts
90119-06390
90159-70003
91651-60614
