EL40R-AEMDS (1990)

Toyota Tercel

Production Sep 1990 - Sep 1994

Engine 2E

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

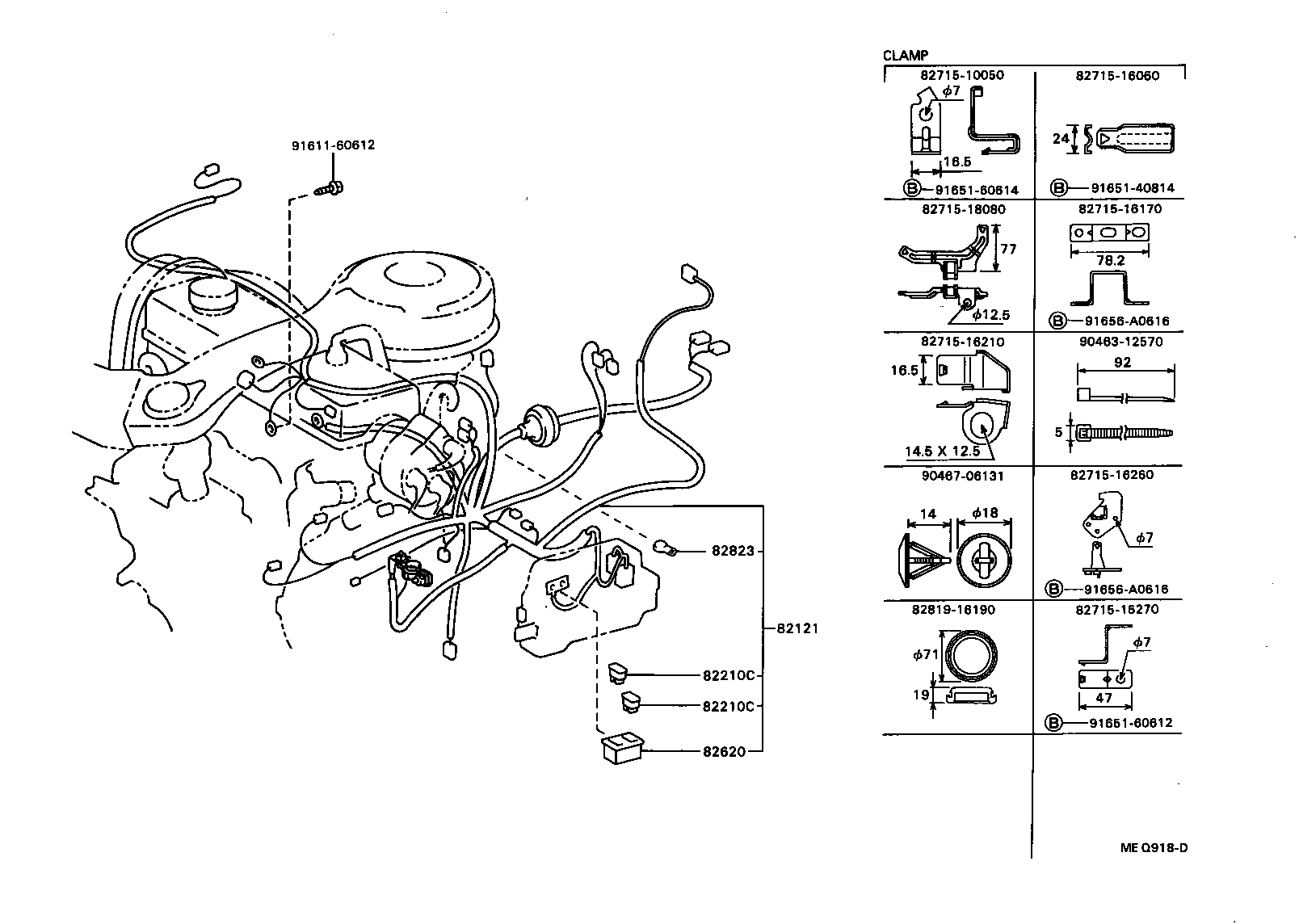

ILLUST NO. 1 OF 6(9009- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
82121 - WIRE, ENGINE
82121-16870	EL40..RHD..MTM	09/1990 - 08/1992	1
82121-1G070	EL40..RHD..MTM	08/1992 - 09/1994	1
82210C - FUSIBLE LINK
90982-08202	EL40 60A,TERM.:MALE,YEL	09/1990 - 09/1994	1
82210C - FUSIBLE LINK
90982-08202	EL40 60A,TERM.:MALE,YEL	09/1990 - 09/1994	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-30030	EL40	09/1990 - 09/1994	1
82823 - CAP, TERMINAL, NO.1
82823-22060	EL40	09/1990 - 08/1992	1
82823-22060	EL40..RHD	08/1992 - 09/1994	1
Common parts
82715-10050
82715-16060
82715-16170
82715-16210
82715-16260
82715-16270
82715-18080
82819-16190
90463-12570
90467-06131
91611-60612
91651-40814
91651-60612
91651-60614
91656-A0616

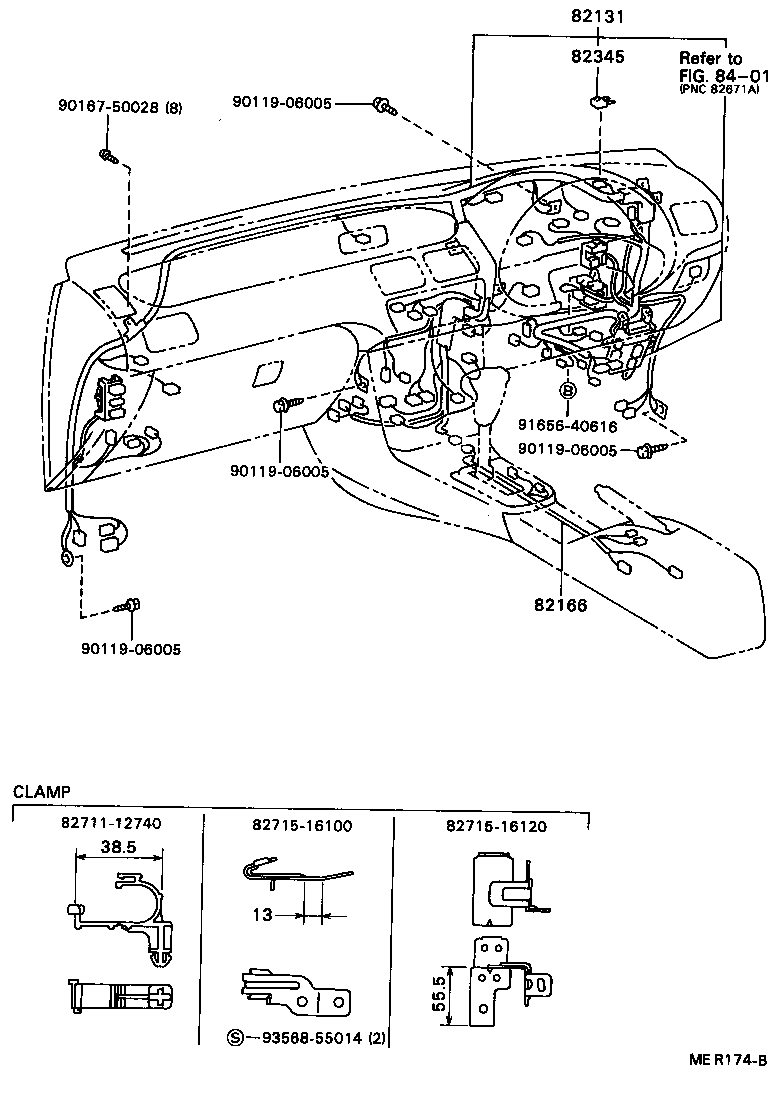

ILLUST NO. 3 OF 6(9009- )RHD

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
82131 - WIRE, COWL
82131-1S020	EL40..RHD	09/1990 - 08/1992	1
82131-1S380	EL40..RHD	08/1992 - 08/1993	1
82131-1S390	EL40..RHD W(TACHOMETER)	08/1992 - 08/1993	1
82131-1S381	EL40..RHD	08/1993 - 09/1994	1
82131-1S391	EL40..RHD W(TACHOMETER)	08/1993 - 09/1994	1
82166 - WIRE, CONSOLE BOX
82166-16060	EL40..GEN	09/1990 - 09/1994	1
82345 - DIODE
82345-12050	EL40	09/1990 - 09/1994	1
Common parts
82711-12740
82715-16100
82715-16120
90119-06005
90167-50028
91656-40616
93568-55014
Linked diagrams
8401

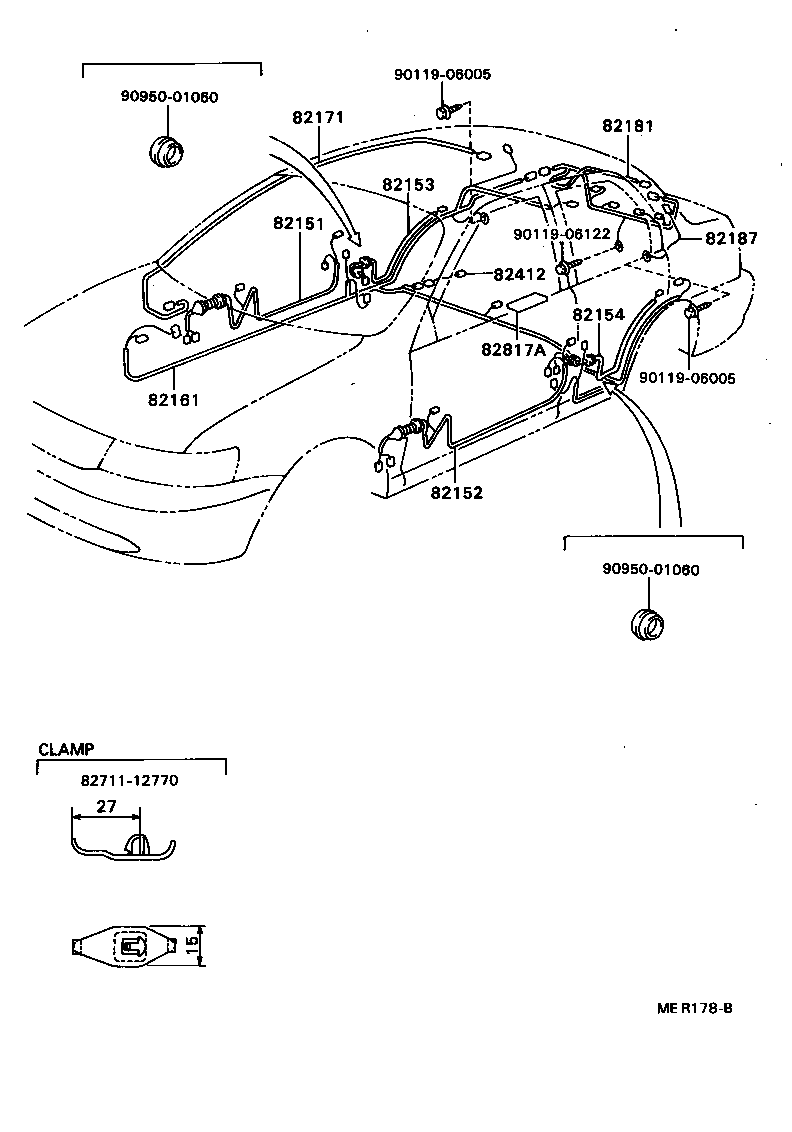

ILLUST NO. 4 OF 6(9009- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
82151 - WIRE, FRONT DOOR, RH
82151-16191	EL40	04/1991 - 08/1992	1
82151-16190	EL40	09/1990 - 04/1991	1
82151-16330	EL40	08/1992 - 09/1994	1
82152 - WIRE, FRONT DOOR, LH
82151-16330	EL40	08/1992 - 09/1994	1
82151-16190	EL40	09/1990 - 04/1991	1
82151-16191	EL40	04/1991 - 08/1992	1
82161 - WIRE, FLOOR
82161-16840	EL40..RHD	08/1992 - 09/1994	1
82161-16850	EL40..RHD	09/1990 - 08/1992	1
82171 - WIRE, ROOF, NO.1
82171-16140	EL40..RHD	09/1990 - 09/1994	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-16020	EL40..RHD	09/1990 - 09/1994	1
82187 - WIRE, REAR WINDOW, NO.2
82187-16080	EL40	09/1990 - 09/1994	1
82412 - WIRE, FUEL GAGE
82412-10070	EL40	09/1990 - 09/1994	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-16410	EL40	10/1990 - 09/1994	1
82817-16100	EL40	09/1990 - 10/1990	1
Common parts
82711-12770
90119-06005
90119-06122
90950-01060

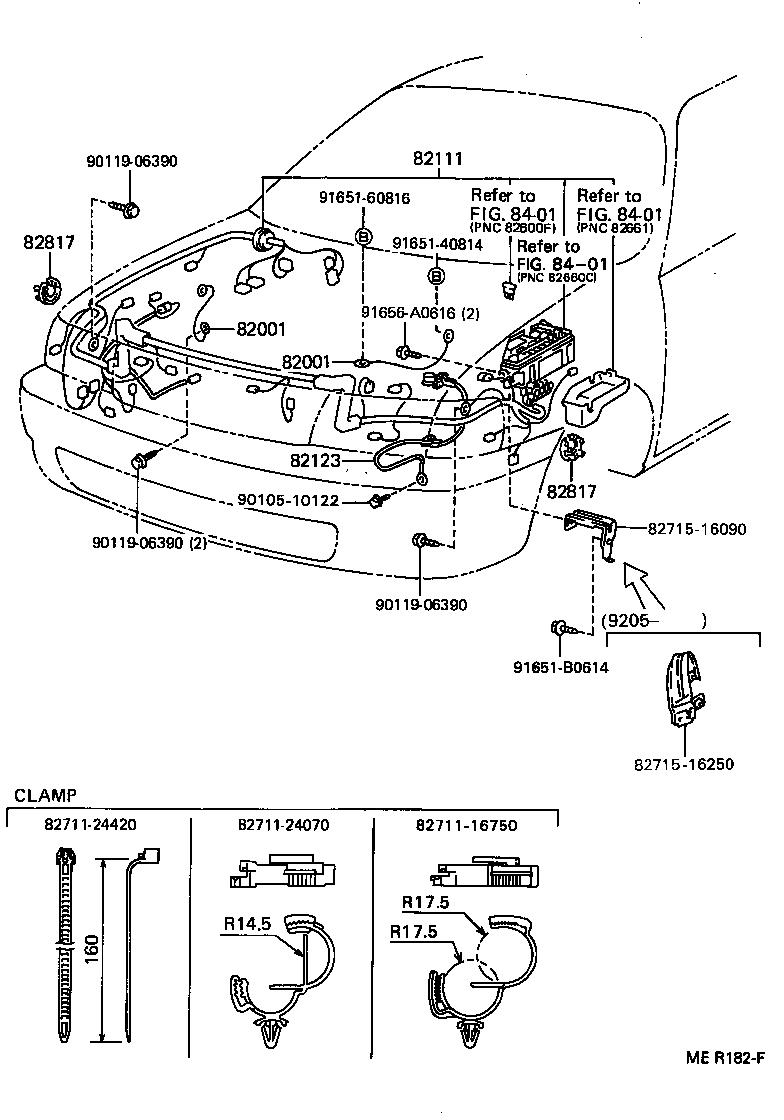

ILLUST NO. 2 OF 6(9009- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
82001 - CABLE, BOND, NO.1
90980-07341	EL40 RH	09/1990 - 09/1994	1
90980-07109	EL40 LH	09/1990 - 09/1994	1
82001 - CABLE, BOND, NO.1
90980-07341	EL40 RH	09/1990 - 09/1994	1
90980-07109	EL40 LH	09/1990 - 09/1994	1
82111 - WIRE, ENGINE ROOM MAIN
82111-1G020	EL40..RHD	09/1990 - 08/1992	1
82111-1G161	EL40..RHD	08/1993 - 09/1994	1
82111-1G160	EL40..RHD	08/1992 - 08/1993	1
82123 - WIRE, ENGINE, NO.3
82123-16130	EL40..MTM W(BATTERY=32C 24L)	08/1992 - 09/1994	1
82123-16080	EL40	09/1990 - 08/1992	1
82123-16120	EL40..MTM	08/1992 - 09/1994	1
82123-16100	EL40 W(BATTERY=32C 24L)	09/1990 - 08/1992	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2B200	EL40	09/1990 - 09/1994	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2B200	EL40	09/1990 - 09/1994	2
Common parts
82711-16750
82711-24070
82711-24420
82715-16090
82715-16250
90105-10122
90119-06390
91651-40814
91651-60816
91651-B0614
91656-A0616
Linked diagrams
8401

ILLUST NO. 5 OF 6(9009- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
82345 - DIODE
82345-12050	EL40	09/1990 - 09/1994	1
Common parts
82345-12050

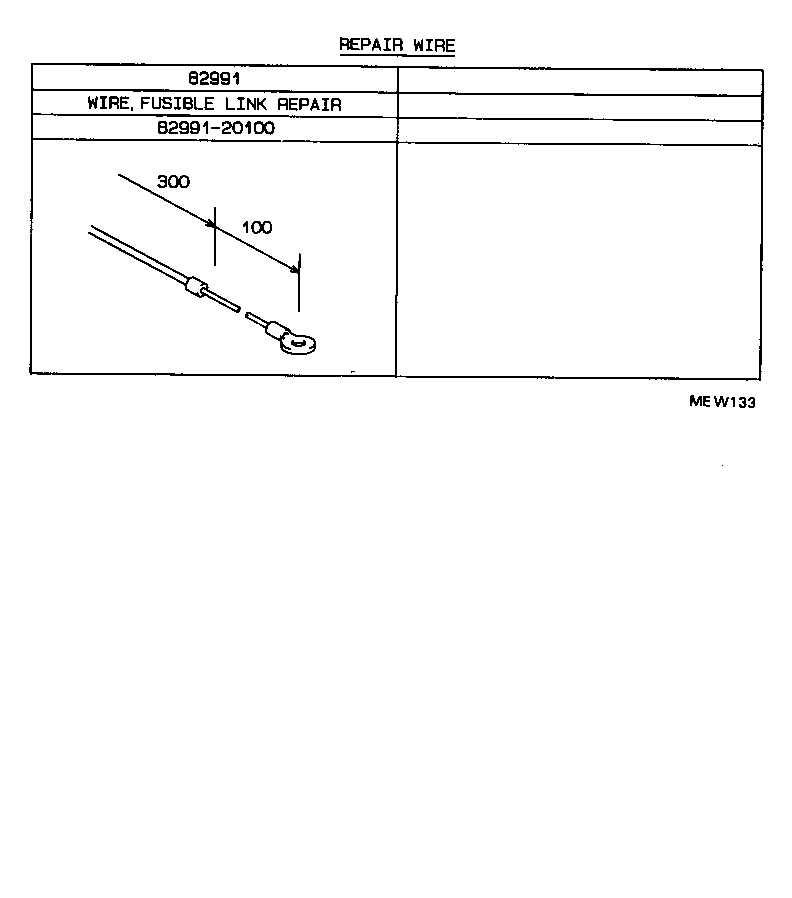

ILLUST NO. 6 OF 6(9208- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
82991 - WIRE, FUSIBLE LINK REPAIR
82991-20100	EL40	08/1992 - 09/1994	1
Common parts
82991-20100
