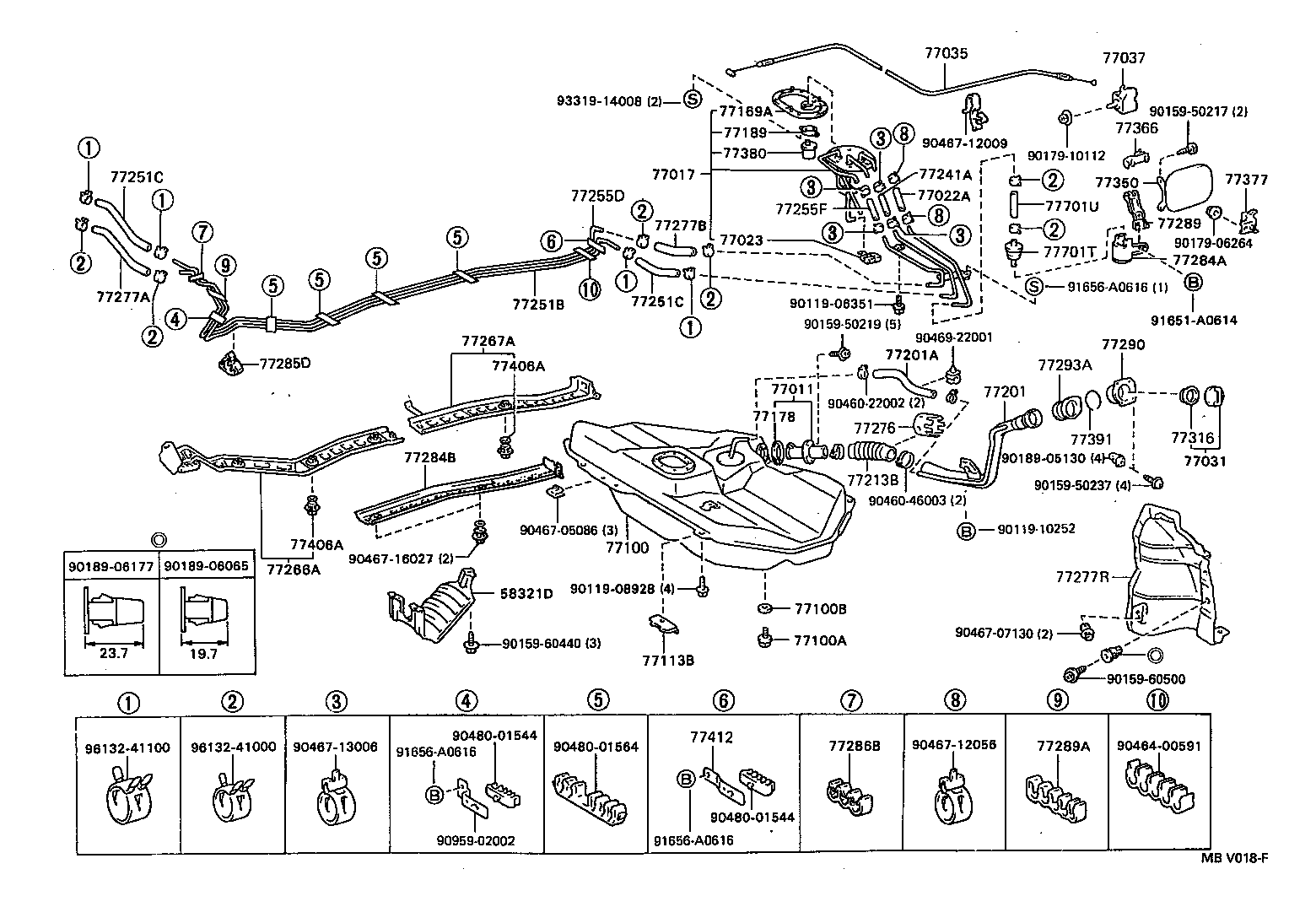

Toyota Tercel EL40 FUEL TANK & TUBE

Part #	Description	Period	Qty
58321D - INSULATOR, REAR FLOOR HEAT, NO.1
58321-10020	EL40	09/1990 - 09/1994	1
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-16080	EL40	09/1990 - 08/1993	1
77011-10060	EL40	08/1993 - 09/1994	1
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-16160	EL40	09/1990 - 09/1994	1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06020	EL40 *H,L=200	09/1990 - 09/1994	1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-32010	EL40	09/1990 - 08/1992	1
77023-16010	EL40 KYOSAN	08/1992 - 09/1994	1
77023-10010	EL40 NIFCO	08/1992 - 09/1994	1
77031 - CAP ASSY, FUEL TANK
77310-16011	EL40	09/1990 - 09/1994	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-16130	EL40..RHD	09/1990 - 09/1994	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-16030	EL40	04/1991 - 09/1994	1
77037-12050	EL40	09/1990 - 04/1991	1
77100 - TANK ASSY, FUEL
77001-16180	EL40	09/1990 - 09/1994	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	EL40	09/1990 - 09/1994	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	EL40	09/1990 - 09/1994	1
77113B - PLATE, FUEL TANK SIDE
77113-10020	EL40	09/1990 - 09/1994	4
77169A - GASKET, FUEL SUCTION TUBE SET
77169-16030	EL40	09/1990 - 09/1994	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030	EL40	08/1992 - 09/1994	1
77189 - RETAINER, FUEL CHECK VALVE
77189-18010	EL40	08/1992 - 09/1994	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-16150	EL40..RHD	09/1990 - 05/1991	1
77201-16151	EL40	05/1991 - 09/1994	1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
95311-13028	EL40 L=280	09/1990 - 09/1994	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-16060	EL40	09/1990 - 10/1990	1
77213-16070	EL40	10/1990 - 09/1994	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95333-06020	EL40 *H,L=200	05/1993 - 09/1994	1
95333-06020	EL40 *H,L=200	09/1990 - 05/1993	1
77251B - TUBE, FUEL MAIN
77251-16160	EL40..RHD	09/1990 - 09/1994	1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-10060	EL40..RHD L=130	02/1992 - 01/1993	1
95333-06020	EL40..RHD *H,L=200	09/1990 - 01/1993	1
77259-10030	EL40 L=130	09/1990 - 02/1992	1
77259-10060	EL40 L=130	01/1993 - 09/1994	1
95333-06020	EL40..RHD *H,L=200	01/1993 - 09/1994	1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77259-10060	EL40..RHD L=130	02/1992 - 01/1993	1
95333-06020	EL40..RHD *H,L=200	09/1990 - 01/1993	1
77259-10030	EL40 L=130	09/1990 - 02/1992	1
77259-10060	EL40 L=130	01/1993 - 09/1994	1
95333-06020	EL40..RHD *H,L=200	01/1993 - 09/1994	1
77255D - TUBE, FUEL RETURN
77255-16150	EL40..RHD	09/1990 - 09/1994	1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95334-04010	EL40 *H,L=110	05/1993 - 09/1994	1
95333-04010	EL40 L=100	09/1990 - 05/1993	1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-10030	EL40	09/1990 - 09/1994	1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-16020	EL40	09/1990 - 09/1994	1
77276 - PROTECTOR, FUEL HOSE
77276-10020	EL40	09/1990 - 09/1994	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-04038	EL40 *H,L=380	09/1990 - 09/1994	1
77279-10010	EL40	09/1990 - 08/1992	1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95333-04034	EL40..RHD *H,L=340	09/1990 - 08/1992	1
77279-10010	EL40	08/1992 - 09/1994	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-16100	EL40	09/1990 - 09/1994	1
77284A - PROTECTOR, FUEL TUBE, NO.3
77284-32020	EL40..GEN	09/1990 - 09/1994	1
77284B - PROTECTOR, FUEL TUBE, NO.3
77284-16010	EL40..RHD;EL40..GCC;EL40..LHD..ATM W(POUGH ROAD A PACKAGE)	08/1992 - 09/1994	1
77284-16010	EL40..RHD;EL40..LHD..ATM W(ROUGH ROAD A PACKAGE)	09/1990 - 08/1992	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-10010	EL40	07/1993 - 09/1994	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-10010	EL40..RHD	09/1990 - 09/1994	1
77289 - HOLDER, FUEL TANK PIPE SETTING
77289-10011	EL40..GEN	09/1990 - 09/1994	1
77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3
77289-10020	EL40..RHD	09/1990 - 09/1994	4
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-16090	EL40	09/1990 - 09/1994	1
77290-16070	EL40 W(BACK DOOR & TRUNK OPENER)	09/1990 - 09/1994	1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-16080	EL40	09/1990 - 09/1994	1
77293-16070	EL40 W(BACK DOOR & TRUNK OPENER)	09/1990 - 09/1994	1
77316 - GASKET, FUEL TANK CAP
77316-16010	EL40	09/1990 - 09/1994	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-16150	EL40	09/1990 - 09/1994	1
77350-16160	EL40 W(BACK DOOR & TRUNK OPENER)	09/1990 - 09/1994	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-20030	EL40	09/1990 - 09/1994	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20050	EL40	09/1990 - 09/1994	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-14020	EL40	09/1990 - 08/1992	1
77380-26010	EL40	08/1992 - 09/1994	1
77391 - RING, FUEL INLET BOX
77391-14020	EL40	09/1990 - 09/1994	1
77406A - CLIP(FOR FUEL TUBE PROTECTOR)
90467-16023	EL40	09/1990 - 09/1994	4
77406A - CLIP(FOR FUEL TUBE PROTECTOR)
90467-16023	EL40	09/1990 - 09/1994	4
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-10010	EL40	09/1990 - 09/1994	1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10082	EL40..GEN	05/1991 - 09/1994	1
90917-10069	EL40	09/1990 - 05/1991	1
77701U - HOSE, FUEL (FOR CHECK VALVE)
77249-10080	EL40..GEN	09/1990 - 09/1994	1
Common parts
90119-06351
90119-08928
90119-10252
90159-50217
90159-50219
90159-50237
90159-60440
90159-60500
90179-06264
90179-10112
90189-05130
90189-06065
90189-06177
90460-22002
90460-46003
90464-00591
90467-05086
90467-07130
90467-12009
90467-12056
90467-13006
90467-16027
90469-22001
90480-01544
90480-01564
90959-02002
91651-A0614
91656-A0616
93319-14008
96132-41000
96132-41100

EL40R-AEMDS (1990)

(9009- )RHD
