AL25RG-ZWFQCQ (1983)
Toyota Tercel
Production
Aug 1983
-
Jan 1988
Engine
3AC
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8511- )3AC..ARL

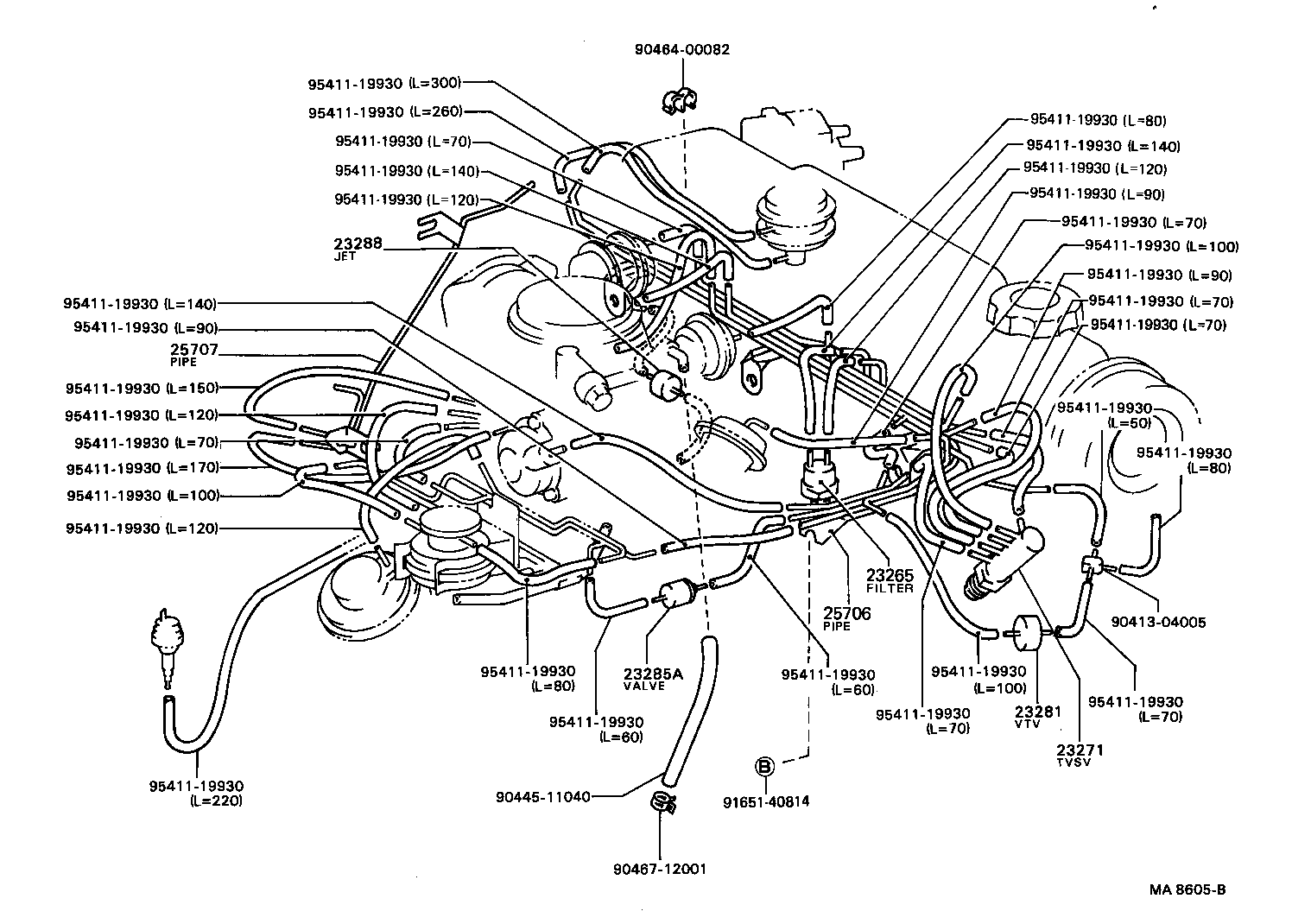

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
2A,3A#..AL2#..ARL,EUR |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
2A,3A#..AL2# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01043 |
3AC..AL25..ARL |
1 | ||
| 90925-01014 |
3AC..AL25..ARL |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04003 |
2A,3A#..AL2# |
1 | ||
| 90925-04003 |
3A..AL25;3AC..AL25..ARL |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-14020 |
2A,3A..AL20,25 |
1 | ||
| 25706-15140 |
3AC..AL25..ARL |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-15150 |
3AC..AL25..ARL |
1 | ||
| 25707-14010 |
2A,3A..AL20,25 |
1 | ||
| 25707-14010 |
2A,3A..AL20,25;3AC..AL25..ARL |
1 | ||
| 25707-15190 |
3AC..AL25..ARL |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90445-11040 | ||||
| 90464-00082 | ||||
| 90467-12001 | ||||
| 91651-40814 | ||||
| 95411-19930 | ||||
(8605- )

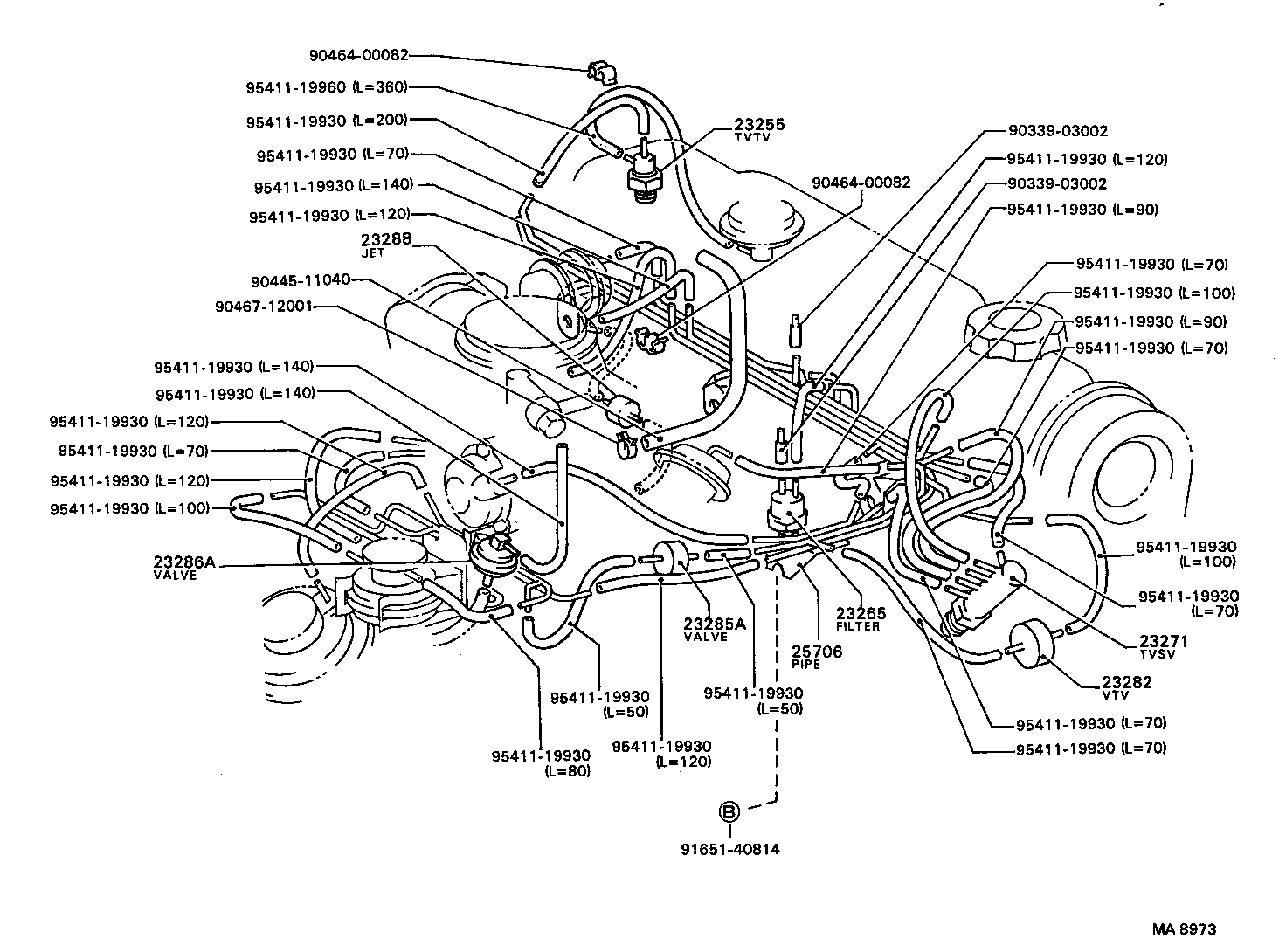

Click highlighted areas on diagram
(8605- )SWEDEN SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
2A,3A#..AL2#..ARL,EUR |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02076 |
2A,3A#..AL2# |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04003 |
2A,3A#..AL2# |
1 | ||
| 90925-04003 |
3A..AL25;3AC..AL25..ARL |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-14020 |
2A,3A..AL20,25 |
1 | ||
| 25706-15140 |
3AC..AL25..ARL |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90445-11040 | ||||
| 90464-00082 | ||||
| 90467-12001 | ||||
| 91651-40814 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
