AL25RG-ZWFDS (1982)

Toyota Tercel

Production Aug 1982 - Jan 1988
Engine 3A
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )AL25..RHD..EUR,GEN

Click highlighted areas on diagram

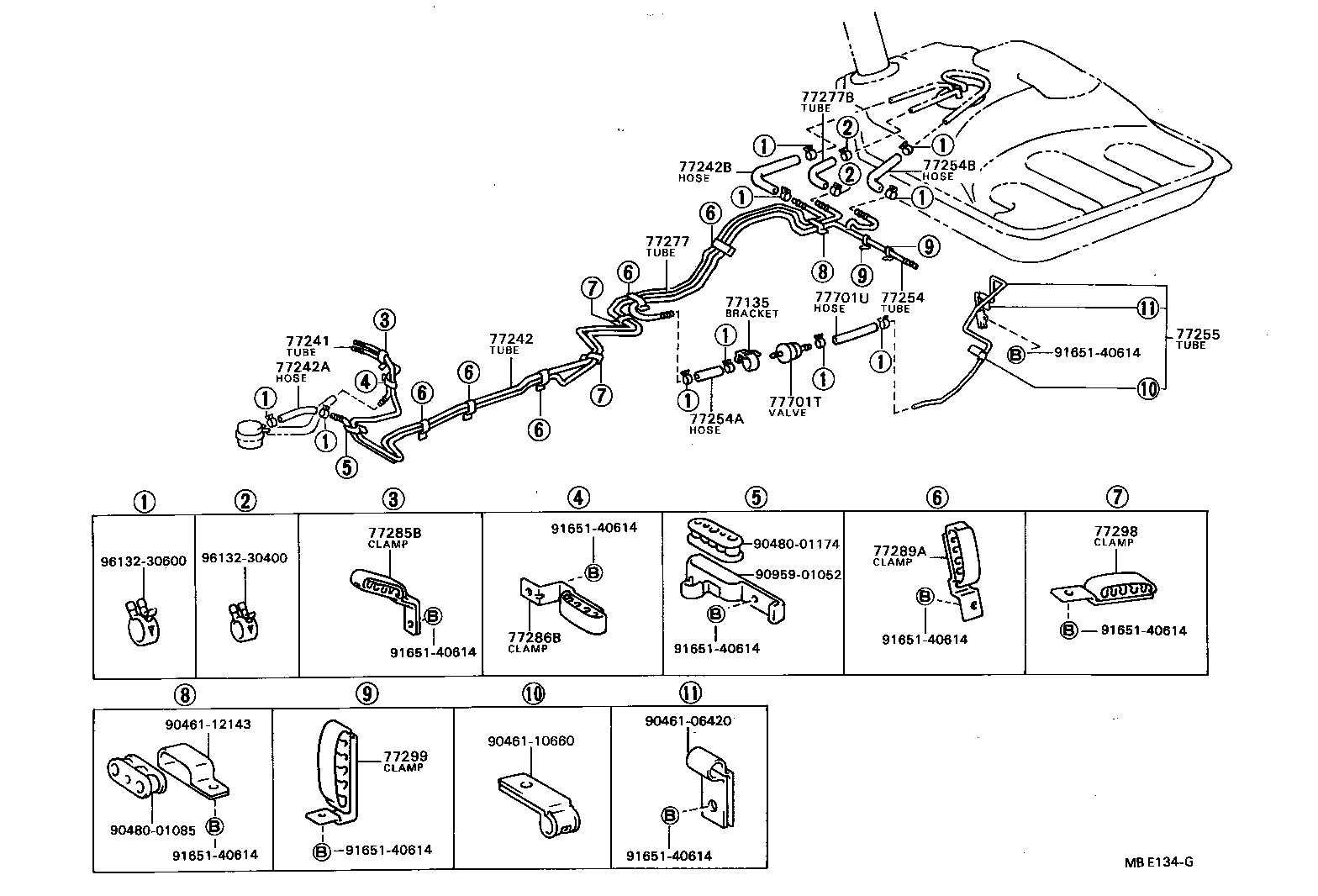

diagram 77135 77241 77242 77242A 77242B 77254 77254A 77254B 77255 77277 77277B 77285B 77286B 77289A 77298 77299 77701T 77701U 9046106420 9046110660 9046112143 9048001085 9048001174 9095901052 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9613230400 9613230600
Part # Description Qty Price
77135 - BRACKET, CHECK VALVE
77277-16050

AL25..EUG;AL25..GEN

 1
77277-16050

AL25..EUR,GEN

 1
77241 - TUBE, FUEL MAIN, NO.1
77252-16070

AL25..RHD

 1
77252-16040

AL20,25..RHD

 1
77242 - TUBE, FUEL MAIN, NO.2
77251-16060

AL25..RHD

 1
77251-16090

AL25..RHD

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95333-06020

AL25

*H,L=200

 1
95332-06020

AL2#

*H,L=200

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-06020

AL25

*H,L=200

 1
95333-06020

AL25..RHD

*H,L=200

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-16020

AL25..EUG;AL25..GEN

 1
77263-16020

AL25..EUR,GEN

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06010

AL25..EUR,GEN

*H,L=60

 1
95332-06010

AL25..EUG;AL25..GEN

*H,L=60

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06020

AL25

*H,L=200

 1
77255 - TUBE, FUEL EMISSION, NO.2
77028-16030

AL25..EUG;AL25..GEN

 1
77028-16030

AL25..EUR,GEN

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-16050

AL25..RHD

 1
77255-16090

AL25..RHD

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-04020

AL20,25..RHD

*H,L=160

 1
95333-04018

AL25..RHD

*H,L=180

 1
95332-04020

AL25..RHD

*H,L=180

 1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-16030

AL20,25..RHD

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-16030

AL20,25..RHD

 1
77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3
77289-16010

AL25

 5
77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4
77298-16020

AL25

 2
77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5
77299-16020

AL25..EUR,GEN

 2
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020

AL25..EUG;AL25..GEN

 1
90917-10020

AL2#

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95332-06020

AL25..EUR,GEN

*H,L=180

 1
95332-06020

AL25..EUR,GEN

*H,L=110

 1
95332-06020

AL25..EUG;AL25..GEN

*H,L=110

 1
Common parts
90461-06420
90461-10660
90461-12143
90480-01085
90480-01174
90959-01052
91651-40614
96132-30400
96132-30600

(8208- )AL25

Click highlighted areas on diagram

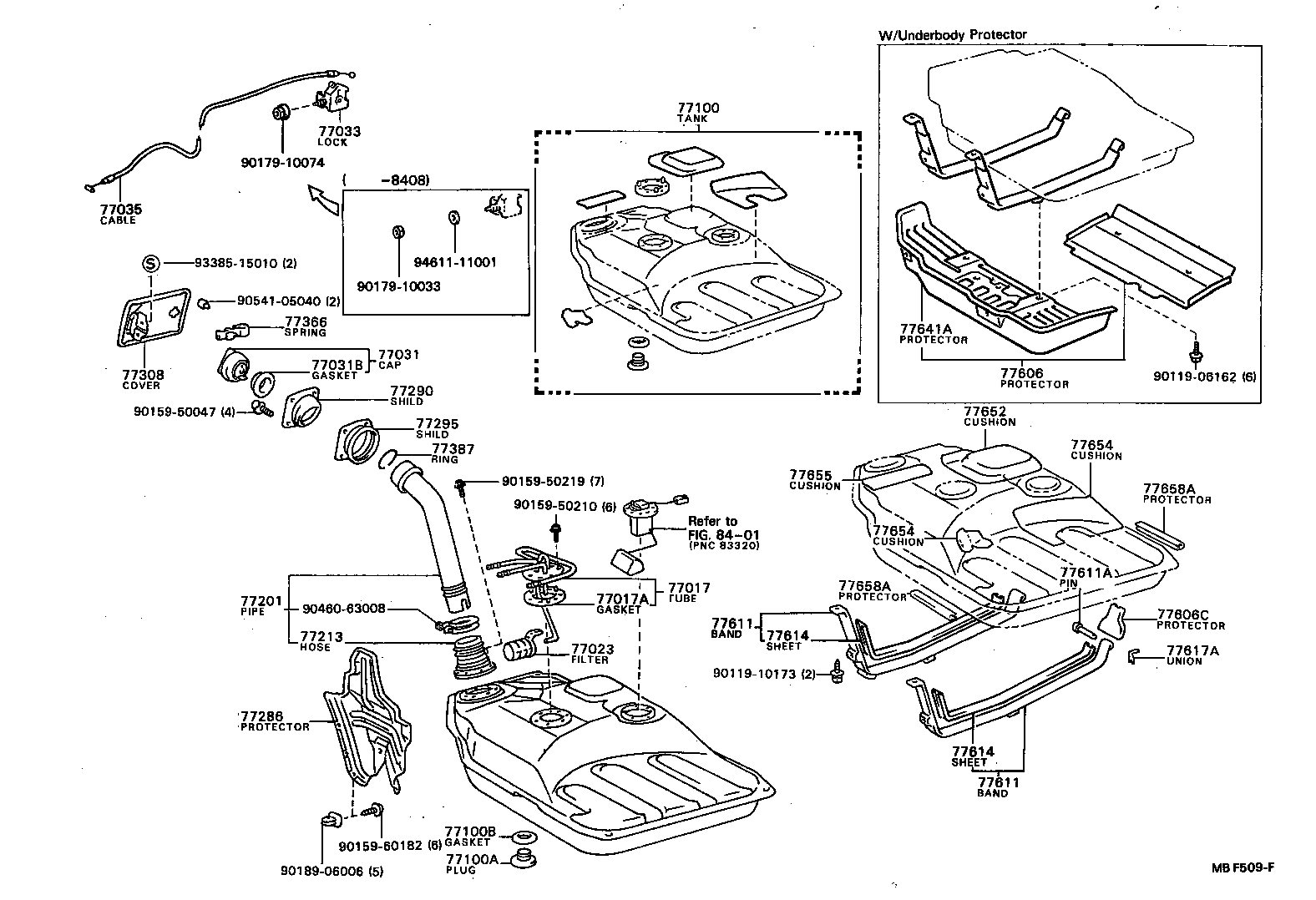

diagram 77017 77017A 77023 77031 77031B 77033 77035 77100 77100A 77100B 77201 77213 77286 77290 77295 77308 77366 77387 77606 77606C 77611 77611 77611A 77614 77614 77617A 77641A 77652 77654 77654 77655 77658A 77658A 8401 9011906162 9011910173 9015950047 9015950210 9015950219 9015960182 9017910033 9017910074 9018906006 9046063008 9054105040 9338515010 9461111001
