AL25RG-ZWFDCQ (1982)
Toyota Tercel
Production
Aug 1982
-
Jan 1988
Engine
3AC
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )AL25

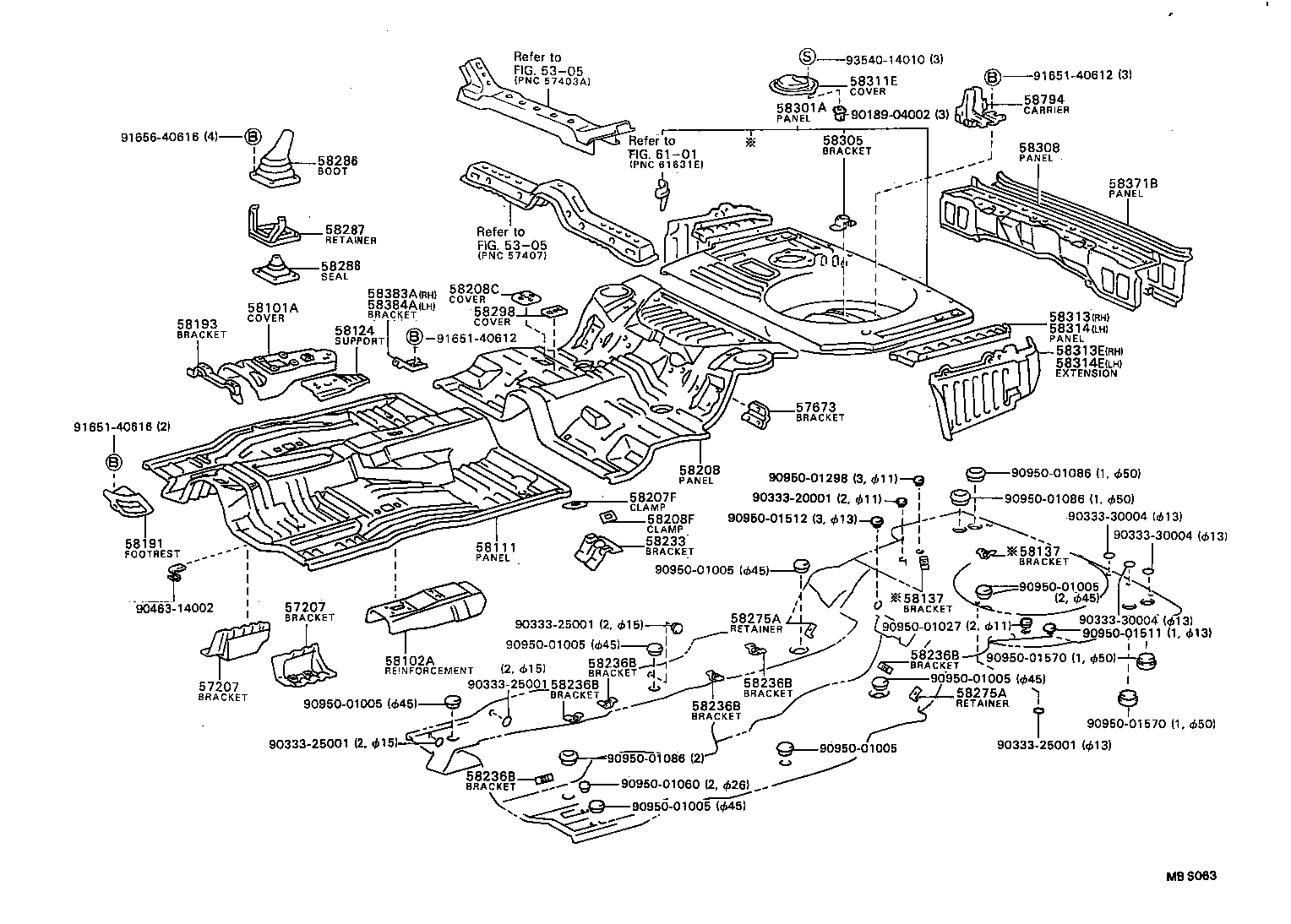

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57207-16020 |
AL25 RH |
1 | ||
| 57208-16020 |
AL25 LH |
1 | ||
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57207-16020 |
AL25 RH |
1 | ||
| 57208-16020 |
AL25 LH |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-12020 |
AL25 |
1 | ||
| 58101A - COVER, TRANSMISSION AUXILIARY | ||||
| 58281-16010 |
AL25 |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-16030 |
AL25 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-16030 |
AL25 |
1 | ||
| 58124 - SUPPORT, TRANSFER LEVER | ||||
| 58124-16020 |
AL25 |
1 | ||
| 58137 - BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4 | ||||
| 58236-14010 |
AL25 |
2 | ||
| 58137 - BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4 | ||||
| 58236-14010 |
AL25 |
2 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-16020 |
AL25..RHD |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-16030 |
AL25 |
1 | ||
| 58207F - CLAMP SUB-ASSY, PARKING BRAKE CABLE, RH | ||||
| 58207-16010 |
AL25 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-12130 |
AL25 |
1 | ||
| 58211-16040 |
AL25 |
1 | ||
| 58211-16030 |
AL25 |
1 | ||
| 58208C - COVER, CENTER FLOOR HOLE | ||||
| 58285-12010 |
AL25 |
2 | ||
| 58208F - CLAMP SUB-ASSY, PARKING BRAKE CABLE, LH | ||||
| 58208-16010 |
AL25 |
1 | ||
| 58233 - BRACKET, EXHAUST PIPE MOUNTING | ||||
| 58233-12010 |
AL25 |
1 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
AL2# |
7 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
AL2# |
7 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
AL2# |
7 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
AL2# |
7 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
AL2# |
7 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
AL2# |
7 | ||
| 58275A - RETAINER, REAR SEAT BACK TO CENTER FLOOR | ||||
| 58275-12010 |
AL25 |
2 | ||
| 58275A - RETAINER, REAR SEAT BACK TO CENTER FLOOR | ||||
| 58275-12010 |
AL25 |
2 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58286-16060 |
AL25 |
1 | ||
| 58287 - RETAINER, SHIFT LEVER BOOT | ||||
| 58087-16020 |
AL25 |
1 | ||
| 58288 - SEAL, SHIFT LEVER BOOT | ||||
| 58288-16030 |
AL25 |
1 | ||
| 58298 - COVER, CENTER FLOOR HOLE, NO.2 | ||||
| 58298-12010 |
AL25 |
1 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-16902 |
AL25 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
AL2# |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-16050 |
AL25..ARL |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-16030 |
AL25 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-16060 |
AL25 |
1 | ||
| 58313-16050 |
AL25 |
1 | ||
| 58313E - EXTENSION, REAR FLOOR SIDE PANEL, RH | ||||
| 58315-16030 |
AL25 |
1 | ||
| 58315-16020 |
AL25 |
1 | ||
| 58315-16030 |
AL25..ARL,EUR |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-16050 |
AL25 |
1 | ||
| 58314-16060 |
AL25 |
1 | ||
| 58314E - EXTENSION, REAR FLOOR SIDE PANEL, LH | ||||
| 58316-16020 |
AL25 |
1 | ||
| 58316-16040 |
AL25 |
1 | ||
| 58316-16040 |
AL25..ARL,EUR |
1 | ||
| 58371B - PANEL, BODY LOWER BACK, OUTER | ||||
| 58371-16170 |
AL25 |
1 | ||
| 58383A - BRACKET, REAR SEAT SUPPORT, RH | ||||
| 58244-16020 |
AL25 |
1 | ||
| 58384A - BRACKET, REAR SEAT SUPPORT, LH | ||||
| 58245-16010 |
AL25 |
1 | ||
| 58794 - CARRIER, JACK | ||||
| 58791-16050 |
AL25 |
1 | ||
| Common parts | ||||
| 90189-04002 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30004 | ||||
| 90463-14002 | ||||
| 90950-01005 | ||||
| 90950-01027 | ||||
| 90950-01060 | ||||
| 90950-01086 | ||||
| 90950-01298 | ||||
| 90950-01511 | ||||
| 90950-01512 | ||||
| 90950-01570 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 5305 | ||||
| 6101 | ||||
