AL25LG-ZWFDS (1982)

Toyota Tercel

Production Aug 1982 - Jan 1988
Engine 3A
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )AL25

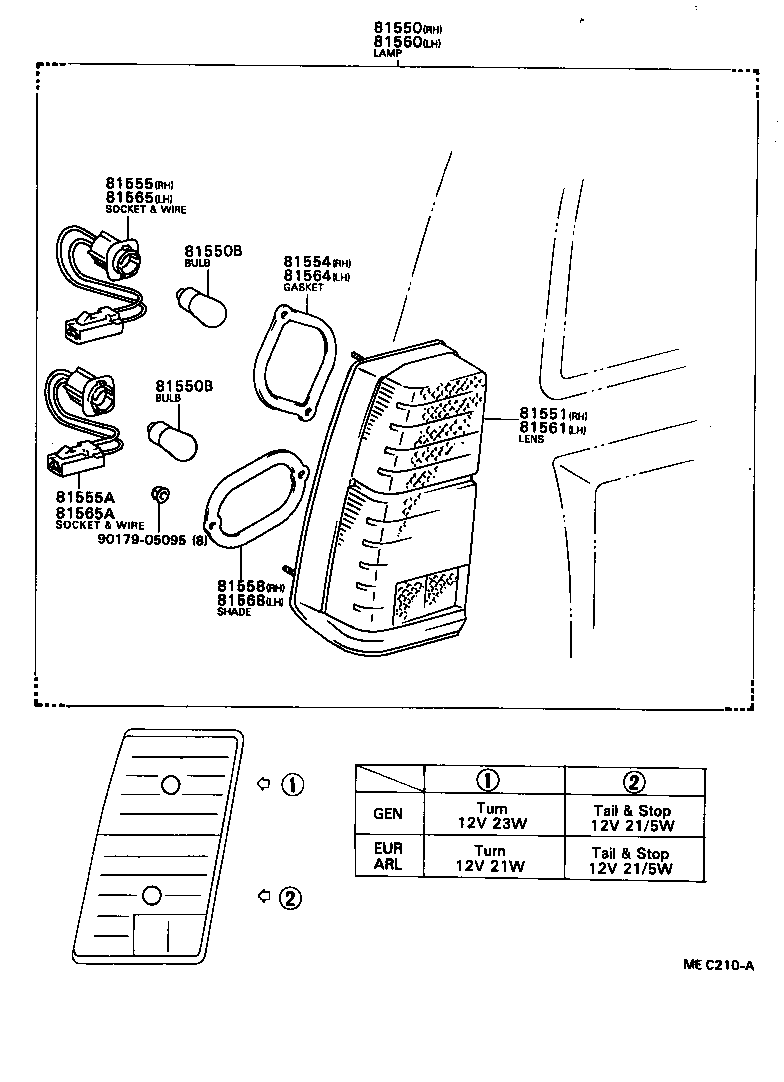

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81551 81554 81555 81555A 81558 81560 81561 81564 81565 81565A 81568 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80135

AL25..GEN

 1
81550-80171

AL25..GEN

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AL20,25..GEN

12V 23W,12V 23W

 4
99132-21210

AL20,25..ARL,GEN

12V 21/5W,12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

AL20,25..GEN

12V 23W,12V 23W

 4
99132-21210

AL20,25..ARL,GEN

12V 21/5W,12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-16261

AL25..GEN

 1
81551-16260

AL25..EUR,GEN

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-16260

AL25

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-16260

AL25

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81556-16261

AL25

 1
81556-16260

AL25..EUR,GEN

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-16260

AL25

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80176

AL25..GEN

 1
81560-80139

AL25..GEN

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-16260

AL25..EUR,GEN

 1
81561-16261

AL25..GEN

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-16260

AL25

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-16260

AL25

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81556-16260

AL25..EUR,GEN

 1
81556-16261

AL25

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-16260

AL25..EUR,GEN

 1
81567-16260

AL25

 1
81557-16260

AL25..GEN

 1
Common parts
90179-05095
