AL21L-ZGMNCC (1982)
Toyota Tercel
Production
Sep 1982
-
Aug 1984
Engine
3AC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8205-8408)3DS

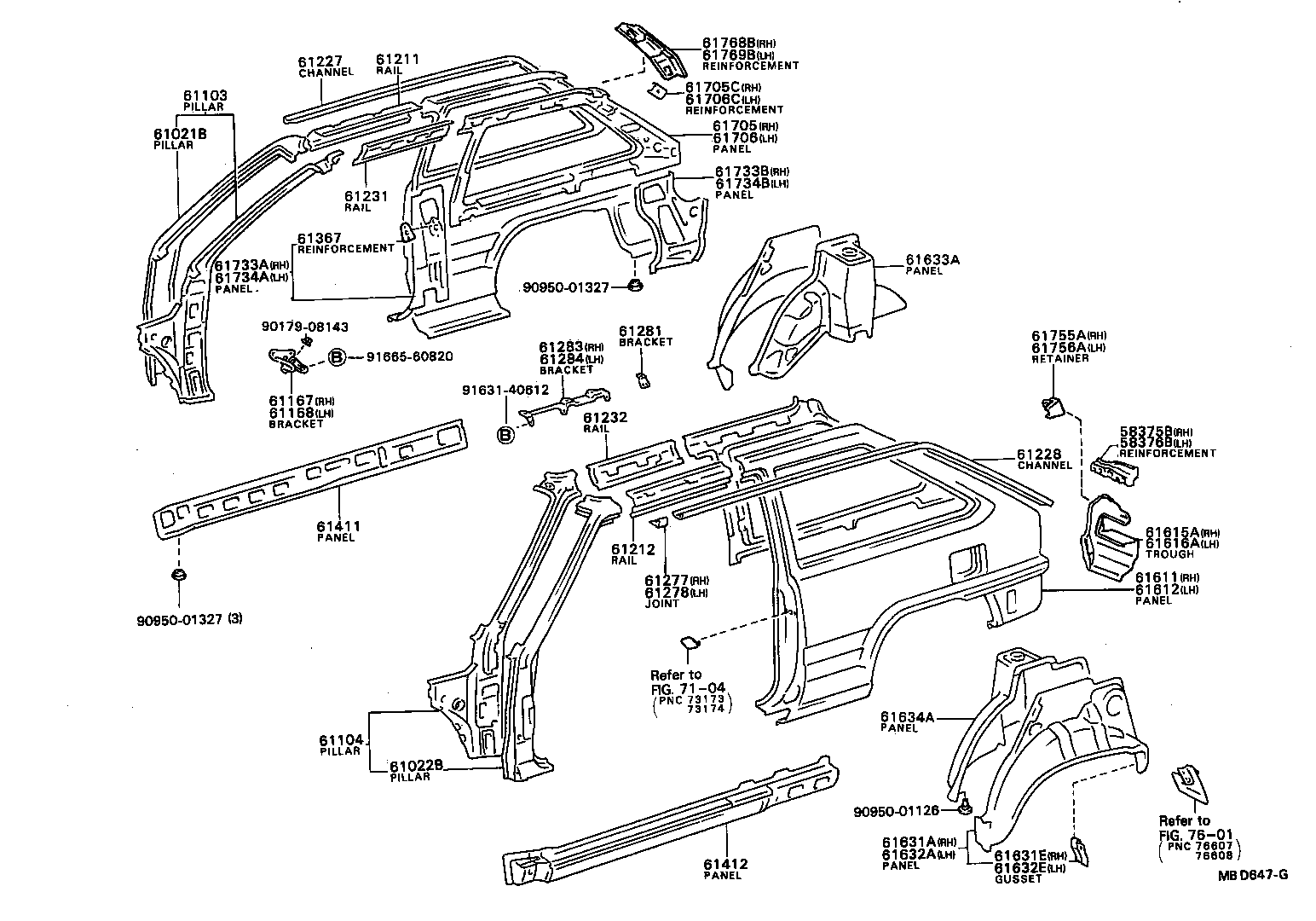

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58375B - REINFORCEMENT, BODY LOWER BACK PANEL, RH | ||||
| 58375-16010 |
AL20,21 |
1 | ||
| 58376B - REINFORCEMENT, BODY LOWER BACK PANEL, LH | ||||
| 58376-16010 |
AL20,21 |
1 | ||
| 61021B - PILLAR SUB-ASSY, FRONT BODY, UPPER RH | ||||
| 61021-16901 |
AL20,21 |
1 | ||
| 61022B - PILLAR SUB-ASSY, FRONT BODY, UPPER LH | ||||
| 61022-16901 |
AL20,21 |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-16050 |
AL2#..LHD |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-16070 |
AL2#..LHD |
1 | ||
| 61167 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61165-16020 |
AL2#..LHD |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-16030 |
AL20,21..3DS |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-16030 |
AL20,21..3DS |
1 | ||
| 61227 - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-16030 |
AL20,21..3DS |
1 | ||
| 61228 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-16030 |
AL20,21..3DS |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-16050 |
AL20,21..3DS |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-16050 |
AL20,21..3DS |
1 | ||
| 61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1 | ||||
| 61281-16010 |
AL20..GEN;AL20,21..GL |
2 | ||
| 61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH | ||||
| 61283-16010 |
AL20..GEN;AL20,21..GL |
1 | ||
| 61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH | ||||
| 61284-16010 |
AL20..GEN;AL20,21..GL |
1 | ||
| 61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER | ||||
| 61367-14010 |
AL20,21..3DS |
2 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-16090 |
AL20,21..3DS |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-16090 |
AL20,21..3DS |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-16903 |
AL20,21..3DS |
1 | ||
| 61601-16912 |
AL20,21..3DS |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-16905 |
AL20,21..3DS |
1 | ||
| 61602-16919 |
AL20,21..3DS |
1 | ||
| 61615A - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-16030 |
AL20,21 |
1 | ||
| 61616A - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-16030 |
AL20,21 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-16150 |
AL20,21..3DS |
1 | ||
| 61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-16010 |
AL20,21 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-16170 |
AL20,21..3DS |
1 | ||
| 61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-16020 |
AL20,21 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-16110 |
AL20,21 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-16140 |
AL20,21 |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-16909 |
AL20,21..3DS |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-16909 |
AL20,21..3DS |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-16900 |
AL20,21..3DS |
1 | ||
| 61733B - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-16010 |
AL20,21 |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-16900 |
AL20,21..3DS |
1 | ||
| 61734B - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-16010 |
AL20,21 |
1 | ||
| 61755A - RETAINER, DECK SIDE TRIM, UPPER RH | ||||
| 61755-16020 |
AL20,21 |
2 | ||
| 61756A - RETAINER, DECK SIDE TRIM, UPPER LH | ||||
| 61755-16020 |
AL20,21 |
2 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-16010 |
AL20,21..3DS |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-16010 |
AL20,21..3DS |
1 | ||
| Common parts | ||||
| 90179-08143 | ||||
| 90950-01126 | ||||
| 90950-01327 | ||||
| 91631-40612 | ||||
| 91665-60820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7601 | ||||
