AL21L-ZGHNCC (1982)
Toyota Tercel
(8205-8408)3FC

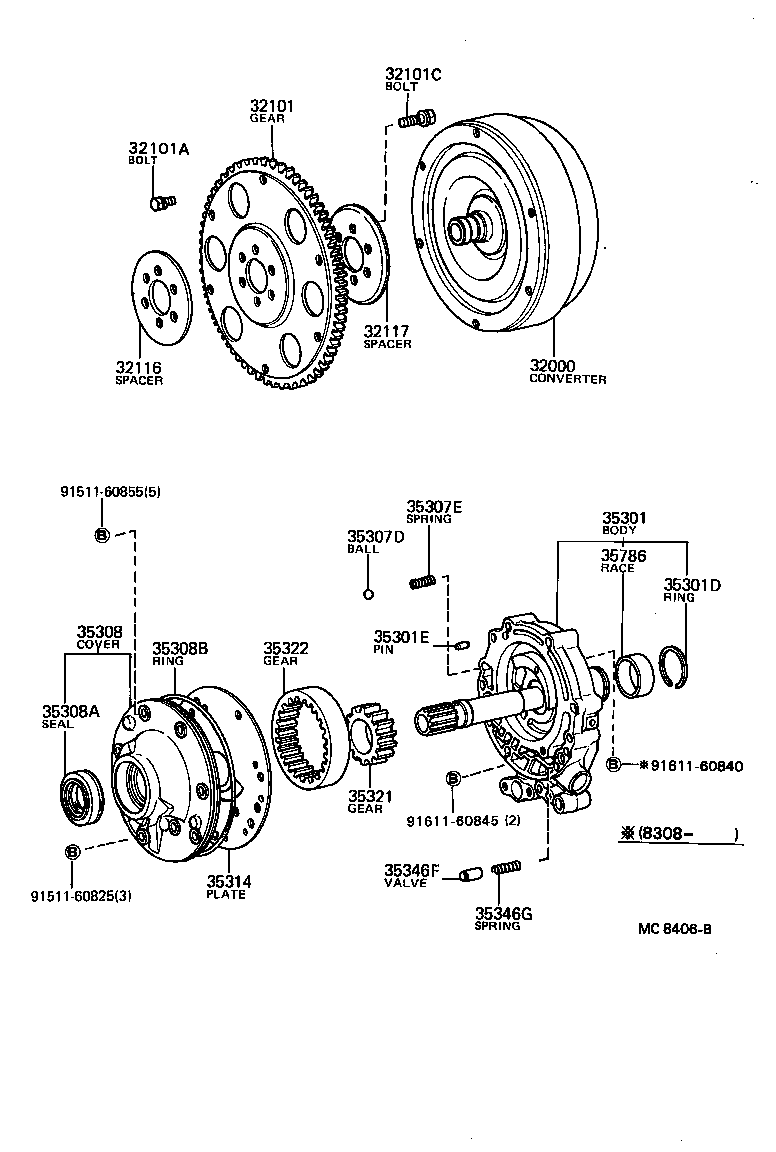

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-16010 |
AL20,21..3FC |
1 | ||
| 32000-16011 |
AL20,21..3FC |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-16010 |
AL20,21..3FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08223 |
AL20,21..3FC *8-1.25PX10.5-6.5 |
6 | ||
| 90119-08223 |
AL20,21..3FC *8-1.25PX10.5-6.5,YELLOW |
5 | ||
| 90109-08090 |
AL20,21..3FC WHITE |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
AL20,21..3FC *10-1.25PX18-13 |
6 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-12010 |
AL20,21..3FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-12010 |
AL20,21..3FC |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-16012 |
AL20,21..3FC |
1 | ||
| 35301-16010 |
AL20,21..3FC |
1 | ||
| 35301D - RING, SHAFT SNAP (FOR FRONT OIL PUMP) | ||||
| 90520-38001 |
AL20,21..3FC |
1 | ||
| 35301E - PIN, STRAIGHT (FOR FRONT OIL PUMP) | ||||
| 90250-10232 |
AL20,21..3FC |
4 | ||
| 35307D - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
AL20,21..3FC |
1 | ||
| 35307E - SPRING, COMPRESSION (FOR REVERSE SHIFT RESTRICT) | ||||
| 90501-06009 |
AL20,21..3FC |
1 | ||
| 35308 - COVER SUB-ASSY, FRONT OIL PUMP | ||||
| 35308-16010 |
AL20,21..3FC |
1 | ||
| 35308-16011 |
AL20,21..3FC |
1 | ||
| 35308A - SEAL, OIL (FOR FRONT OIL PUMP COVER) | ||||
| 90311-38129 |
AL20,21..3FC |
1 | ||
| 90311-38020 |
AL20,21..3FC |
1 | ||
| 35308B - RING, TRANSMISSION CASE SEAL | ||||
| 90301-99012 |
AL20,21..3FC |
1 | ||
| 35314 - PLATE, FRONT OIL PUMP | ||||
| 35314-16011 |
AL20,21..3FC |
1 | ||
| 35314-16010 |
AL20,21..3FC |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-16030 |
AL20,21..3FC T=15.272-15.286 |
1 | ||
| 35321-16020 |
AL20,21..3FC T=15.250-15.271 |
1 | ||
| 35321-16010 |
AL20,21..3FC T=15.235-15.249 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-16010 |
AL20,21..3FC T=15.235-15.249 |
1 | ||
| 35322-16030 |
AL20,21..3FC T=15.272-15.286 |
1 | ||
| 35322-16020 |
AL20,21..3FC T=15.250-15.271 |
1 | ||
| 35346F - VALVE, PRIMING(FOR FRONT OIL PUMP) | ||||
| 35346-16011 |
AL20,21..3FC OD=10,L=19.5 |
1 | ||
| 35346-16010 |
AL20,21..3FC OD=10,L=14.5 |
1 | ||
| 35346G - SPRING, COMPRESSION(FOR PRIMING VALVE) | ||||
| 90501-07036 |
AL20,21..3FC |
1 | ||
| 90501-07014 |
AL20,21..3FC |
1 | ||
| 35786 - RACE, DRIVE SPROCKET | ||||
| 35787-16010 |
AL20,21..3FC |
1 | ||
| Common parts | ||||
| 91511-60825 | ||||
| 91511-60855 | ||||
| 91611-60840 | ||||
| 91611-60845 | ||||
(8205-8408)3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35078 - SUPPORT SUB-ASSY, FRONT | ||||
| 35078-16010 |
AL20,21..3FC |
1 | ||
| 35078-16011 |
AL20,21..3FC |
1 | ||
| 35078A - RING, O (FOR FRONT SUPPORT) | ||||
| 90301-05002 |
AL20,21..3FC |
2 | ||
| 35078B - RACE, THRUST BEARING (FOR FRONT SUPPORT REAR) | ||||
| 35789-16060 |
AL20,21..3FC FR |
1 | ||
| 35789-16040 |
AL20,21..3FC RR |
1 | ||
| 35078B - RACE, THRUST BEARING (FOR FRONT SUPPORT REAR) | ||||
| 35789-16060 |
AL20,21..3FC FR |
1 | ||
| 35789-16040 |
AL20,21..3FC RR |
1 | ||
| 35078C - BEARING, THRUST NEEDLE ROLLER (FOR FRONT SUPPORT REAR) | ||||
| 90374-32002 |
AL20,21..3FC |
1 | ||
| 35617F - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-16010 |
AL20,21..3FC |
2 | ||
| 35617F - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-16010 |
AL20,21..3FC |
2 | ||
| 35701F - SHAFT SUB-ASSY, INPUT | ||||
| 35701-16010 |
AL20,21..3FC |
1 | ||
| 35701G - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-16010 |
AL20,21..3FC |
1 | ||
| 35781 - CHAIN, PRIMARY DRIVE | ||||
| 35781-16010 |
AL20,21..3FC |
1 | ||
| 35782 - SPROCKET, DRIVE | ||||
| 35782-16020 |
AL20,21..3FC |
1 | ||
| 35782A - BEARING, NEEDLE ROLLER(FOR DRIVE SPROCKET) | ||||
| 90364-46002 |
AL20,21..3FC |
1 | ||
| 35782B - RING, HOLE SNAP(FOR DRIVE SPROCKET) | ||||
| 90521-55002 |
AL20,21..3FC |
1 | ||
| 35783 - SPROCKET, DRIVEN | ||||
| 35783-16020 |
AL20,21..3FC |
1 | ||
| 35783A - BEARING, NEEDLE ROLLER(FOR DRIVEN SPROCKET) | ||||
| 90364-46002 |
AL20,21..3FC |
1 | ||
| 35783B - RING, HOLE SNAP(FOR DRIVEN SPROCKET) | ||||
| 90521-55002 |
AL20,21..3FC |
1 | ||
| 35783C - RING, SHAFT SNAP(FOR DRIVEN SPROCKET SET) | ||||
| 90520-27001 |
AL20,21..3FC |
1 | ||
| 35787 - RACE, THRUST BEARING (FOR DRIVE SPROCKET FRONT) | ||||
| 35789-16110 |
AL20,21..3FC |
1 | ||
| 35787A - BEARING, THRUST NEEDLE ROLLER (FOR DRIVE SPROCKET FRONT | ||||
| 90374-26001 |
AL20,21..3FC |
1 | ||
| 35788 - RACE, THRUST BEARING (FOR DRIVE SPROCKET REAR) | ||||
| 35789-16150 |
AL20,21..3FC |
1 | ||
| 35788A - BEARING, THRUST NEEDLE ROLLER (FOR DRIVE SPROCKET REAR) | ||||
| 90374-37001 |
AL20,21..3FC |
1 | ||
| 35789A - BEARING, THRUST NEEDLE ROLLER (FOR DRIVEN SPROCKET) | ||||
| 90374-30004 |
AL20,21..3FC |
1 | ||
| Common parts | ||||
| 91611-60828 | ||||
