AL20R-ZHMDSW (1982)
Toyota Tercel
Production
May 1982
-
Aug 1984
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8205- )AL20,21

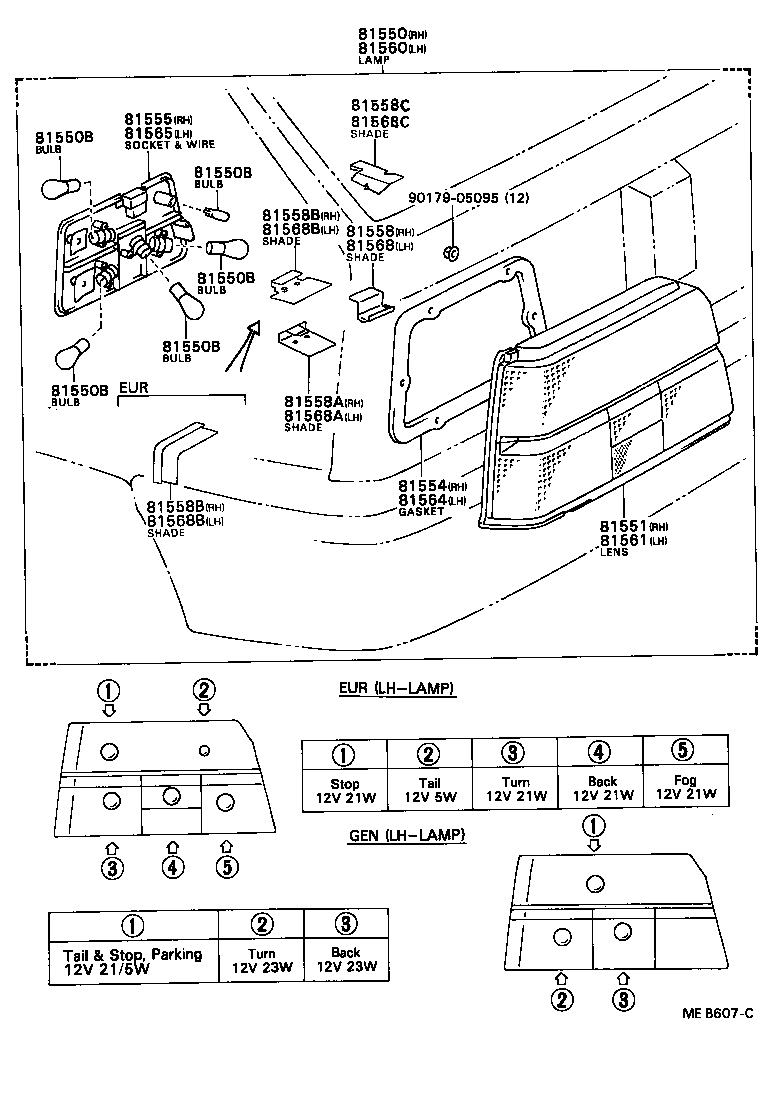

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-80134 |
AL20,21..EUR |
1 | ||
| 81550-80182 |
AL20,21..EUR |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-12050 |
AL20,21..EUR 12V 5W,12V 5W |
2 | ||
| 99132-11210 |
AL2#..ARL,EUR 12V 21W,12V 21W |
8 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-12050 |
AL20,21..EUR 12V 5W,12V 5W |
2 | ||
| 99132-11210 |
AL2#..ARL,EUR 12V 21W,12V 21W |
8 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-12050 |
AL20,21..EUR 12V 5W,12V 5W |
2 | ||
| 99132-11210 |
AL2#..ARL,EUR 12V 21W,12V 21W |
8 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-12050 |
AL20,21..EUR 12V 5W,12V 5W |
2 | ||
| 99132-11210 |
AL2#..ARL,EUR 12V 21W,12V 21W |
8 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-12050 |
AL20,21..EUR 12V 5W,12V 5W |
2 | ||
| 99132-11210 |
AL2#..ARL,EUR 12V 21W,12V 21W |
8 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-16250 |
AL20,21..EUR |
1 | ||
| 81551-16251 |
AL20,21..EUR |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-16210 |
AL20,21 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-16250 |
AL20,21..EUR |
1 | ||
| 81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH | ||||
| 81557-16210 |
AL20,21 |
1 | ||
| 81558A - SHADE, REAR COMBINATION LAMP, NO.2 RH | ||||
| 81558-16210 |
AL20,21 |
1 | ||
| 81558B - SHADE, REAR COMBINATION LAMP, NO.3 RH | ||||
| 81557-16250 |
AL20,21..EUR |
1 | ||
| 81558B - SHADE, REAR COMBINATION LAMP, NO.3 RH | ||||
| 81557-16250 |
AL20,21..EUR |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-80138 |
AL20,21..EUR |
1 | ||
| 81560-80187 |
AL20,21..EUR |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-16251 |
AL20,21..EUR |
1 | ||
| 81561-16250 |
AL20,21..EUR |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-16210 |
AL20,21 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-16250 |
AL20,21..EUR |
1 | ||
| 81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH | ||||
| 81557-16210 |
AL20,21 |
1 | ||
| 81568A - SHADE, REAR COMBINATION LAMP, NO.2 LH | ||||
| 81558-16210 |
AL20,21 |
1 | ||
| 81568B - SHADE, REAR COMBINATION LAMP, NO.3 LH | ||||
| 81567-16250 |
AL20,21..EUR |
1 | ||
| 81568B - SHADE, REAR COMBINATION LAMP, NO.3 LH | ||||
| 81567-16250 |
AL20,21..EUR |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
