AL20R-ZHMDSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

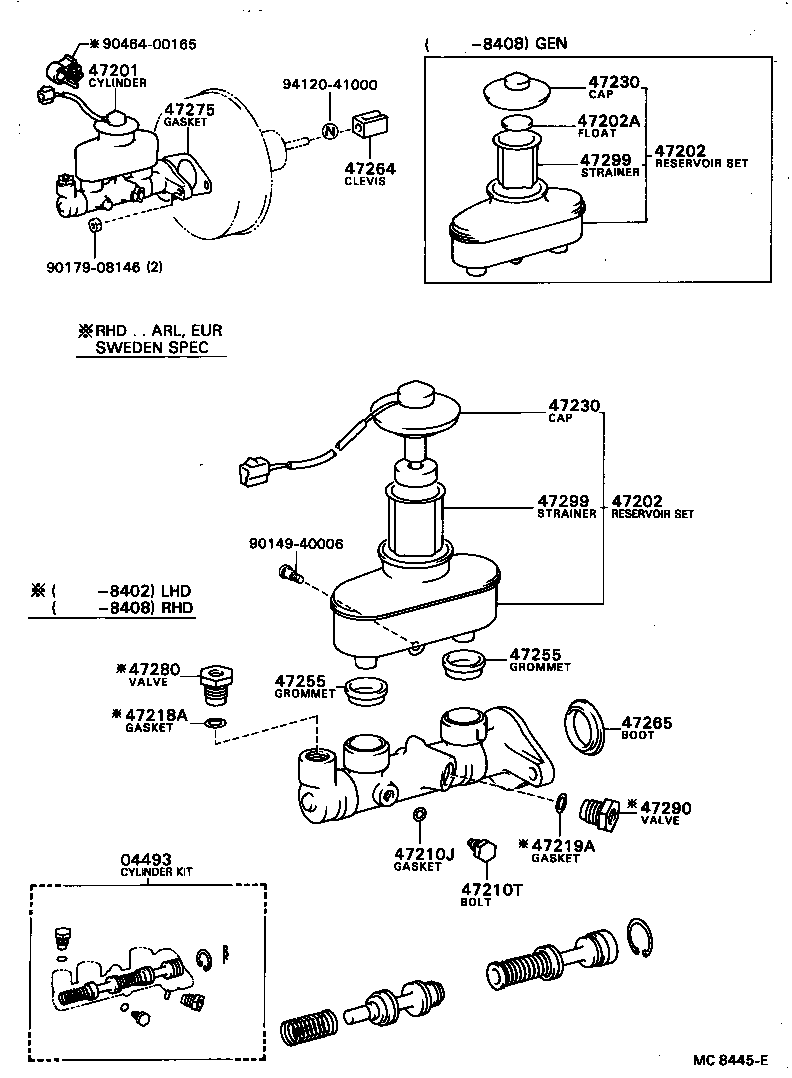

Click highlighted areas on diagram

diagram 04493 47201 47202 47202 47202A 47210J 47210T 47218A 47219A 47230 47230 47255 47255 47264 47265 47275 47280 47290 47299 47299 9014940006 9017908146 9046400165 9412041000
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-16020

AL2#

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-16060

AL20..RHD..EUG

 1
47201-16060

AL25;AL20,21..EUR

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-16040

AL25;AL20,21..EUR

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-16040

AL25;AL20,21..EUR

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

AL2#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

AL2#

 1
47218A - GASKET(FOR FLUID OUTLET PLUG)
90430-09253

AL2#

 1
90430-09253

AL20,25..RHD

 1
47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE)
90430-09253

AL2#

 1
90430-09253

AL20,25..RHD

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
84460-12021

AL25;AL20,21..EUR

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
84460-12021

AL25;AL20,21..EUR

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-10010

AL2#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-10010

AL2#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-10080

AL2#

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

AL2#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-14010

AL2#

 1
47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
47280-30030

AL20,25..RHD

 1
47280-30030

AL2#

 1
47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)
47280-30030

AL2#

 1
47280-30030

AL20,25..RHD

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-32010

AL2#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-32010

AL2#

 1
Common parts
90149-40006
90179-08146
90464-00165
94120-41000
