AL20R-ZHHDS (1982)
Toyota Tercel
(8205-8408)GL ; (8205-8408)AL20..GEN ; (8302-8304)AL21..3DS..5F..DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

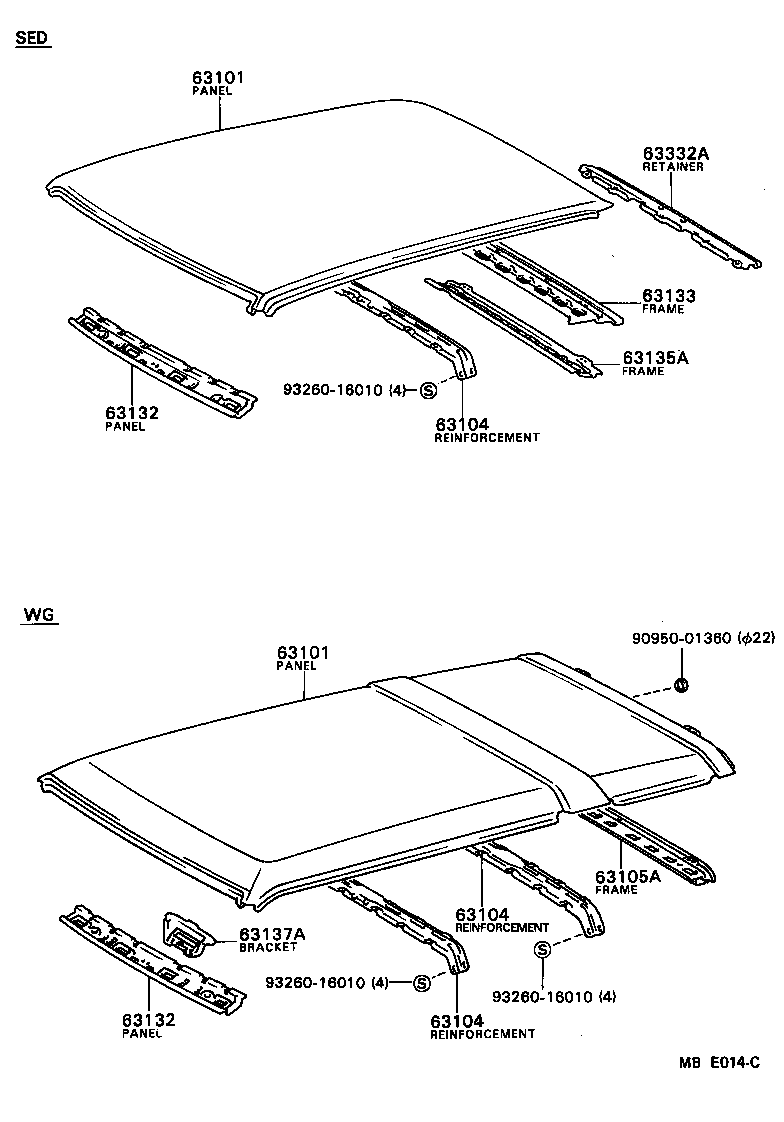

| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63111-16090 |
AL20..GEN;AL20,21..GL W/SUN ROOF |
1 | ||
| 63111-16080 |
AL20,21 |
1 | ||
| 63125 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-16010 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-16020 |
AL20,21 |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63134-16020 |
AL20,21 |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-16020 |
AL20,21 |
1 | ||
| 63201A - PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63201-16010 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-20010 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63203-16030 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63203-16031 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-12030 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63207-12031 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63207-20010 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-20010 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63208-12031 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63208-12030 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-14020 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-16020 |
AL20..GEN;AL20,21..GL RR |
2 | ||
| 63249-16040 |
AL20..GEN;AL20,21..GL FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-16020 |
AL20..GEN;AL20,21..GL RR |
2 | ||
| 63249-16040 |
AL20..GEN;AL20,21..GL FR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-16020 |
AL20..GEN;AL20,21..GL RR |
2 | ||
| 63249-16040 |
AL20..GEN;AL20,21..GL FR |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-20010 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63221-12030 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-20010 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-20010 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63251-14020 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63251-12040 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-20010 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63255-12030 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-12030 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63255-20010 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-12040 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63260-20010 |
AL20..GEN;AL20,21..GL |
1 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63262-12020 |
AL20..GEN;AL20,21..GL LH |
1 | ||
| 63261-12020 |
AL20..GEN;AL20,21..GL RH |
1 | ||
| 63261-20010 |
AL20..GEN;AL20,21..GL |
2 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63267-20010 |
AL20..GEN;AL20,21..GL RH |
1 | ||
| 63268-20010 |
AL20..GEN;AL20,21..GL LH |
1 | ||
| 63269 - RETAINER, SLIDING ROOF WEATHERSTRIP | ||||
| 63279-20010 |
AL20..GEN;AL20,21..GL LH |
1 | ||
| 63269-20010 |
AL20..GEN;AL20,21..GL RH |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-20010 |
AL20..GEN;AL20,21..GL 91.5 X 55 |
8 | ||
| 63277-14020 |
AL20..GEN;AL20,21..GL 48 X 28 |
8 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-20010 |
AL20..GEN;AL20,21..GL 91.5 X 55 |
8 | ||
| 63277-14020 |
AL20..GEN;AL20,21..GL 48 X 28 |
8 | ||
| 63332A - RETAINER, ROOF HEADLINING, REAR | ||||
| 63383-16010 |
AL20,21 |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-12010 |
AL20..GEN;AL20,21..GL |
1 | ||
| Common parts | ||||
| 90153-60004 | ||||
| 90159-60219 | ||||
| 90162-50007 | ||||
| 90168-40046 | ||||
| 90179-06123 | ||||
| 90189-05020 | ||||
| 90189-05043 | ||||
| 90333-15002 | ||||
| 90333-25001 | ||||
| 90467-14001 | ||||
| 90468-16009 | ||||
| 93382-16012 | ||||
| 93385-15012 | ||||
(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63111-16090 |
AL20..GEN;AL20,21..GL W/SUN ROOF |
1 | ||
| 63111-16080 |
AL20,21 |
1 | ||
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63111-16090 |
AL20..GEN;AL20,21..GL W/SUN ROOF |
1 | ||
| 63111-16080 |
AL20,21 |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-16020 |
AL20,21 |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-16020 |
AL20,21 |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63141-16020 |
AL20,21 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-16020 |
AL20,21 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-16020 |
AL20,21 |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63134-16020 |
AL20,21 |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-16020 |
AL20,21 |
1 | ||
| 63332A - RETAINER, ROOF HEADLINING, REAR | ||||
| 63383-16010 |
AL20,21 |
1 | ||
| Common parts | ||||
| 90950-01360 | ||||
| 93260-16010 | ||||
