AL20L-ZHHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

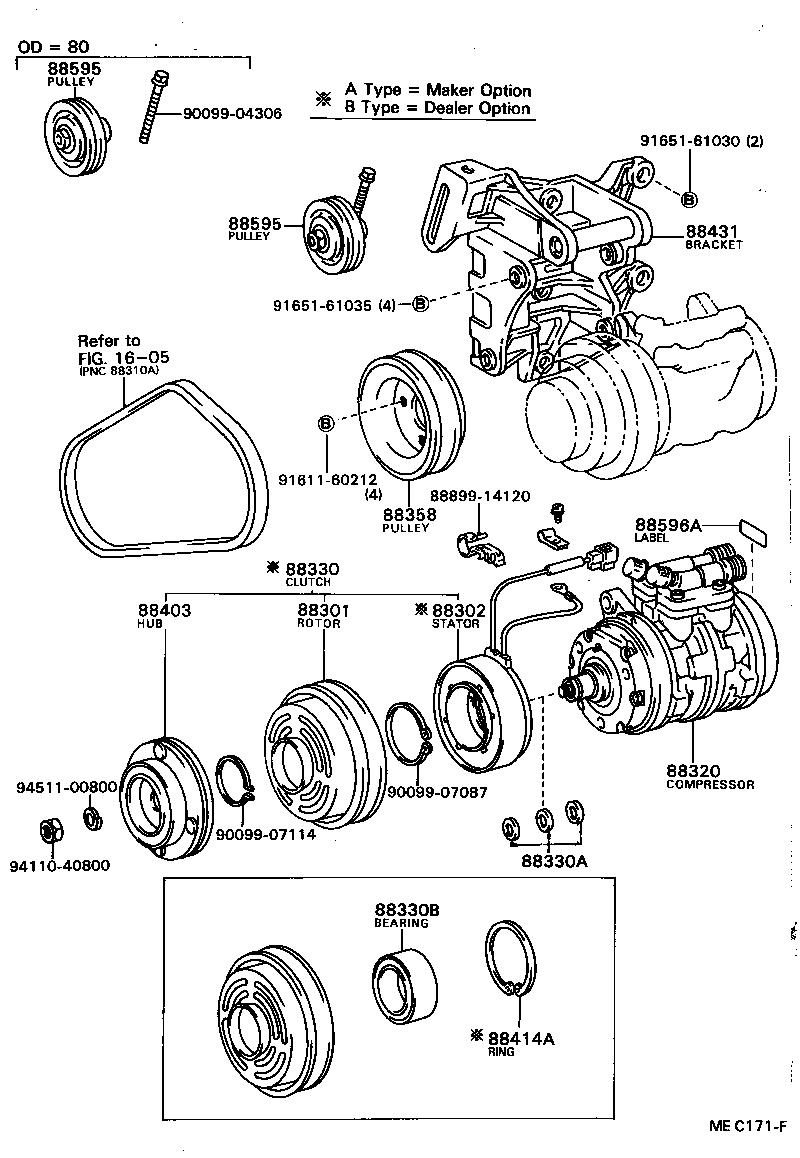

Click highlighted areas on diagram

diagram 1605 88301 88302 88320 88330 88330A 88330B 88358 88403 88414A 88431 88595 88595 88596A 8889914120 9009904306 9009907087 9009907114 9161160212 9165161030 9165161035 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-14030

AL2#..LHD

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-12100

AL2#..LHD

 1
88411-16010

AL2#..LHD

 1
88320 - COMPRESSOR ASSY, COOLER
88320-16030

AL2#..LHD

 1
88330 - CLUTCH ASSY, MAGNET
88410-16010

AL2#..LHD

 1
88410-12180

AL2#..LHD

 1
88330B - BEARING, MAGNET CLUTCH
90099-10135

AL2#..LHD

 1
88358 - PULLEY, CRANKSHAFT TO COOLER COMPRESSOR DRIVE
88358-16030

AL20

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14040

AL2#..LHD

 1
88414A - RING, SHIELD SNAP
90099-07094

AL2#..LHD

 1
90099-07114

AL2#..LHD

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-16020

AL2#..LHD

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-16020

AL2#..LHD

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-16020

AL2#..LHD

 1
Common parts
88899-14120
90099-04306
90099-07087
90099-07114
91611-60212
91651-61030
91651-61035
94110-40800
94511-00800
Linked diagrams
1605

(8205- )

Click highlighted areas on diagram

diagram 88304 88316 88316A 88316C 88320A 88320B 88320B 88321 88321 88321A 88321A 88321B 88321B 88321C 88321C 88322 88325A 88329 88329C 88329C 88332 88335 88360 88360A 88364 88374 88374 88375 88375 88376 88376
Part # Description Qty Price
88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR
88304-16021

AL2#..LHD

 1
88316 - CRANKSHAFT, COOLER COMPRESSOR
88316-14021

AL2#..LHD

 1
88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT
88366-14010

AL2#..LHD

 1
88316C - KEY, COMPRESSOR CRANKSHAFT
90099-13012

AL2#..LHD

 1
88320A - BOLT, THROUGH
90099-04968

AL2#..LHD

 5
88320B - BOLT, SERVICE VALVE
90099-04924

AL2#..LHD

 4
88320B - BOLT, SERVICE VALVE
90099-04924

AL2#..LHD

 4
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-14011

AL2#..LHD

RR

 1
88321-14011

AL2#..LHD

FR

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-14011

AL2#..LHD

RR

 1
88321-14011

AL2#..LHD

FR

 1
88321A - PLATE SUB-ASSY, VALVE
88341-14010

AL2#..LHD

FR

 1
88342-14010

AL2#..LHD

RR

 1
88321A - PLATE SUB-ASSY, VALVE
88341-14010

AL2#..LHD

FR

 1
88342-14010

AL2#..LHD

RR

 1
88321B - REED SUB-ASSY, VALVE
88344-14011

AL2#..LHD

 2
88321B - REED SUB-ASSY, VALVE
88344-14011

AL2#..LHD

 2
88321C - REED, SUCTION VALVE
88343-14011

AL2#..LHD

 2
88321C - REED, SUCTION VALVE
88343-14011

AL2#..LHD

 2
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88371-16030

AL2#..LHD

 1
88325A - PIN, CYLINDER BLOCK
90099-08058

AL2#..LHD

 4
88329 - PISTON SUB-ASSY, COOLER COMPRESSOR
88301-12050

AL2#..LHD

 5
88329C - SHOE, PISTON
88313-14010

AL2#..LHD

 10
88329C - SHOE, PISTON
88313-14010

AL2#..LHD

 10
88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE
88372-16020

AL2#..LHD

 1
88335 - GASKET KIT, OVERHAUL
04881-10010

AL2#..LHD

 1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-14020

AL2#..LHD

 1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022

AL2#..LHD

 1
88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR
88366-14010

AL2#..LHD

 1
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020

AL2#..LHD

 2
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020

AL2#..LHD

 2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30270

AL2#..LHD

 2
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30270

AL2#..LHD

 2
