AL20L-ZHHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

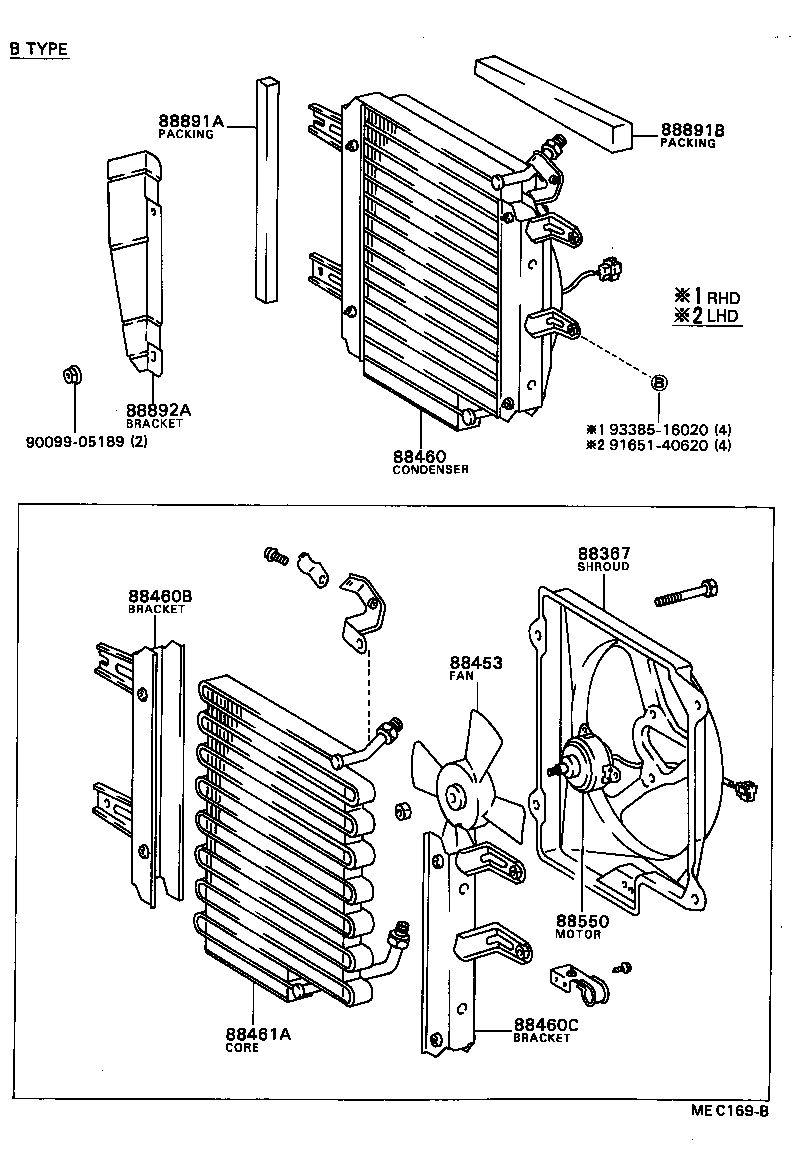

(8205-8408)LHD ; (8205- )RHD..ARL,GEN ; (8503- )LHD..GEN

Click highlighted areas on diagram

diagram 88367 88453 88460 88460B 88460C 88461A 88550 88891A 88891B 88892A 9009905189 9165140620 9338516020
Part # Description Qty Price
88367 - SHROUD, COOLER BLOWER FAN
88454-16040

AL2#..LHD

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-16010

AL2#..LHD

 1
88460 - CONDENSER ASSY, COOLER
88460-16050

AL2#..LHD

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88463-16080

AL2#..LHD

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88463-16090

AL2#..LHD

 1
88461A - CORE, COOLER CONDENSER
88461-16040

AL2#..LHD

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-16060

AL2#..LHD

 1
Common parts
90099-05189
91651-40620
93385-16020

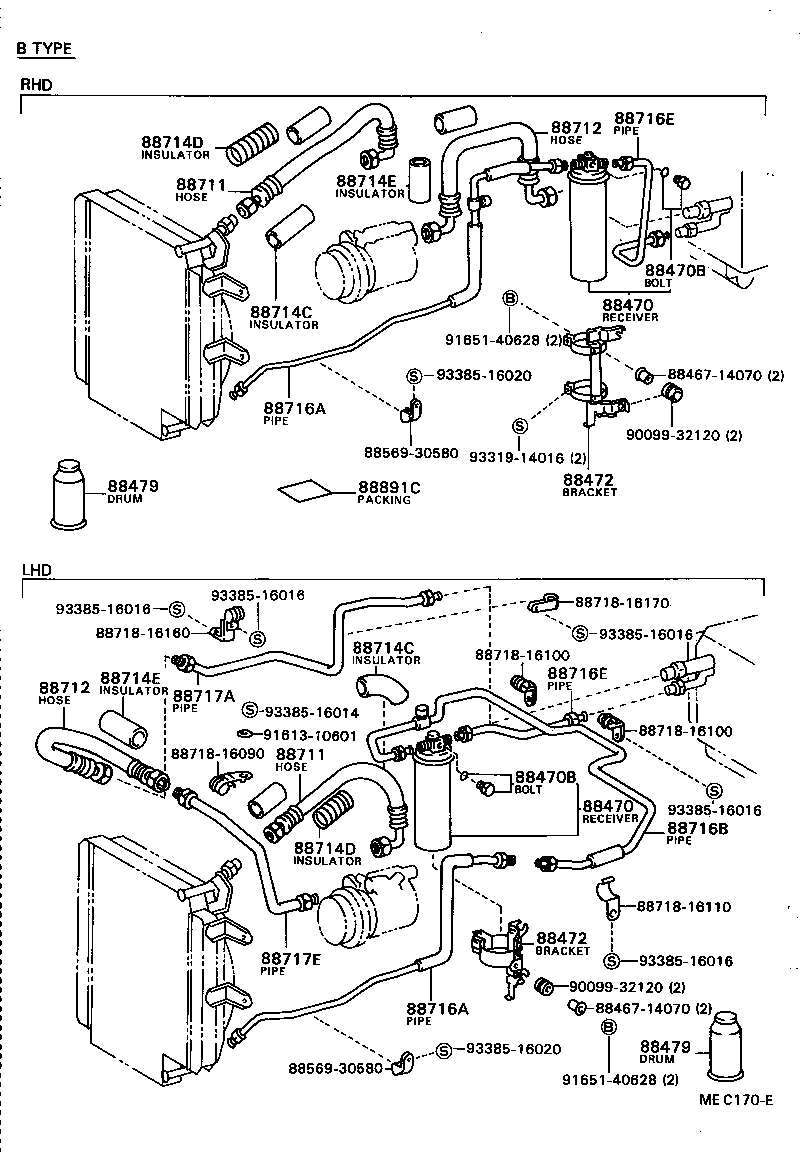

(8205-8408)LHD ; (8205- )RHD..ARL,GEN ; (8503- )LHD..GEN

Click highlighted areas on diagram

diagram 8846714070 8846714070 88470 88470 88470B 88470B 88472 88472 88479 88479 8856930580 8856930580 88711 88711 88712 88712 88714C 88714C 88714D 88714D 88714E 88714E 88716A 88716A 88716B 88716E 88716E 88717A 88717E 8871816090 8871816100 8871816100 8871816110 8871816160 8871816170 88891C 9009932120 9009932120 9161310601 9165140628 9165140628 9331914016 9338516014 9338516016 9338516016 9338516016 9338516016 9338516016 9338516020 9338516020
Part # Description Qty Price
88470 - RECEIVER & DRYER ASSY, COOLER
88470-14010

AL2#..LHD

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-14010

AL2#..LHD

 1
88470B - BOLT, FUSE
90099-04579

AL2#..LHD

 1
88470B - BOLT, FUSE
90099-04579

AL2#..LHD

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16030

AL2#..LHD

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16030

AL2#..LHD

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AL2#..LHD

400G

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AL2#..LHD

400G

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16030

AL2#..LHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16030

AL2#..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16040

AL2#..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16040

AL2#..LHD

 1
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-16010

AL2#..LHD

 2
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-16010

AL2#..LHD

 2
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-16020

AL2#..LHD

 1
88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2
88714-16020

AL2#..LHD

 1
88714E - INSULATOR, COOLER REFRIGERANT HOSE, NO.3
88714-16030

AL2#..LHD

 2
88714E - INSULATOR, COOLER REFRIGERANT HOSE, NO.3
88714-16030

AL2#..LHD

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-16140

AL2#..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-16140

AL2#..LHD

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-16180

AL2#..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-16150

AL2#..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-16150

AL2#..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16030

AL2#..LHD

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-16050

AL2#..LHD

 1
Common parts
88467-14070
88569-30580
88718-16090
88718-16100
88718-16110
88718-16160
88718-16170
90099-32120
91613-10601
91651-40628
93319-14016
93385-16014
93385-16016
93385-16020

(8308- )

Click highlighted areas on diagram

diagram 8271112200 8271112200 8271112200 8271112200 88605J 88630J 88630J 88635A
Part # Description Qty Price
Common parts
82711-12200
