AL20L-ZHHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

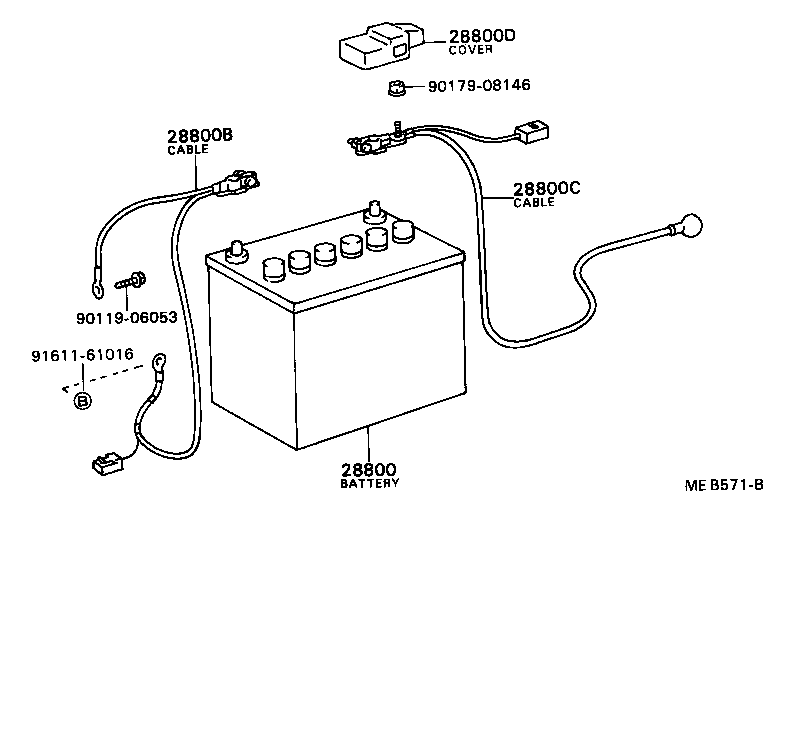

Click highlighted areas on diagram

diagram 28800 28800B 28800C 28800D 9011906053 9017908146 9161161016
Part # Description Qty Price
28800 - BATTERY
28800-33071

2A,3A#..AL2#

32C24R,32C24R(N40)

 1
28800-24030

2A,3A..AL20,25..GEN

34B19R,34B19R(NS40ZA)

 1
28800B - CABLE, BATTERY TO GROUND
82123-16020

2A,3A#..AL2#

BATTERY=32C24R(N40),55D23R

 1
82123-16010

2A,3A..AL20,25..GEN

BATTERY=34B19R(NS40ZA)

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-16010

2A,3A..AL20,25..GEN

BATTERY=34B19R(NS40ZA)

 1
82122-16030

2A,3A#..AL20,25..ARL,GEN

BATTERY=32C24R(N40)

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12150

2A,3A#..AL2#

 1
Common parts
90119-06053
90179-08146
91611-61016
