AL20L-ZHHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )ARL,EUR ; (8605- )GEN

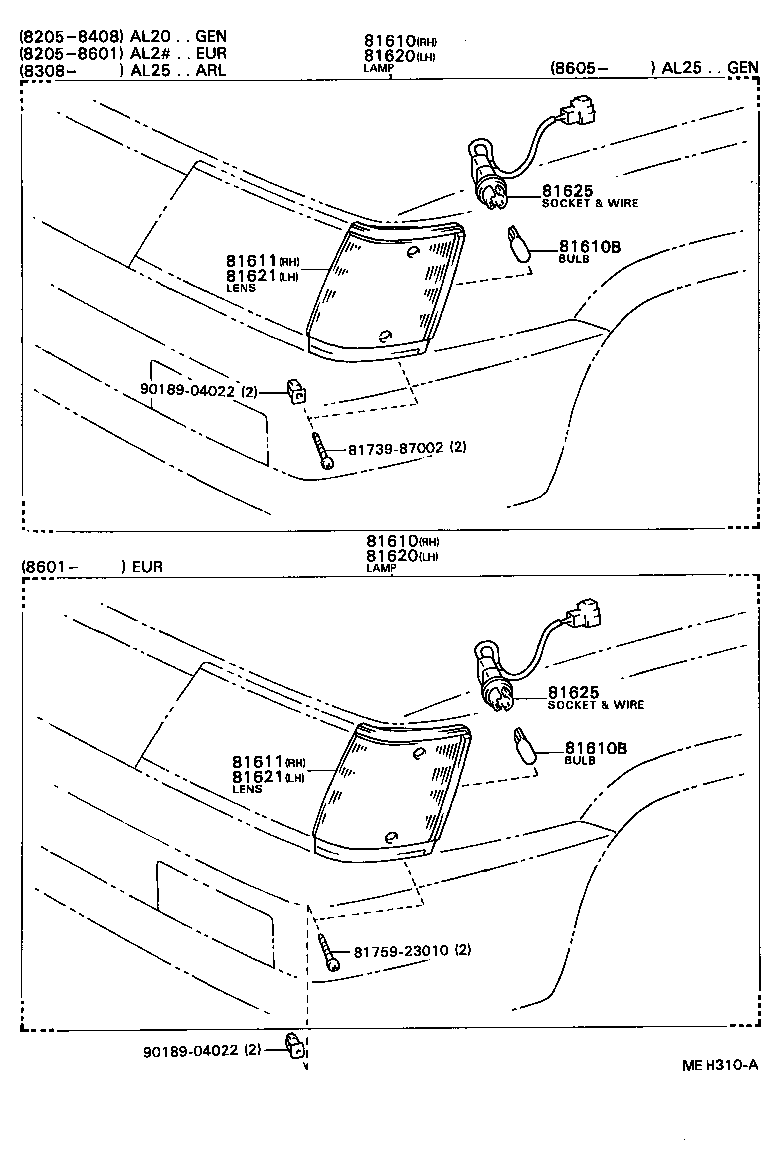

Click highlighted areas on diagram

diagram 81610 81610 81610B 81610B 81611 81611 81620 81620 81621 81621 81625 81625 8173987002 8175923010 9018904022 9018904022
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-19375

AL20..GEN

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-19375

AL20..GEN

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AL2#

12V 5W,12V 5W

 4
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AL2#

12V 5W,12V 5W

 4
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-16050

AL20..GEN

 1
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-16050

AL20..GEN

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-19375

AL20..GEN

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-19375

AL20..GEN

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-16050

AL20..GEN

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-16050

AL20..GEN

 1
81625 - SOCKET AND WIRE, PARKING AND CLEARANCE LAMP
81615-16040

AL20,25..ARL,GEN

 2
81625 - SOCKET AND WIRE, PARKING AND CLEARANCE LAMP
81615-16040

AL20,25..ARL,GEN

 2
Common parts
81739-87002
81759-23010
90189-04022
