AL20L-ZHHDS (1982)
Toyota Tercel
Production
May 1982
-
Aug 1984
Engine
2A
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8205- )LHD

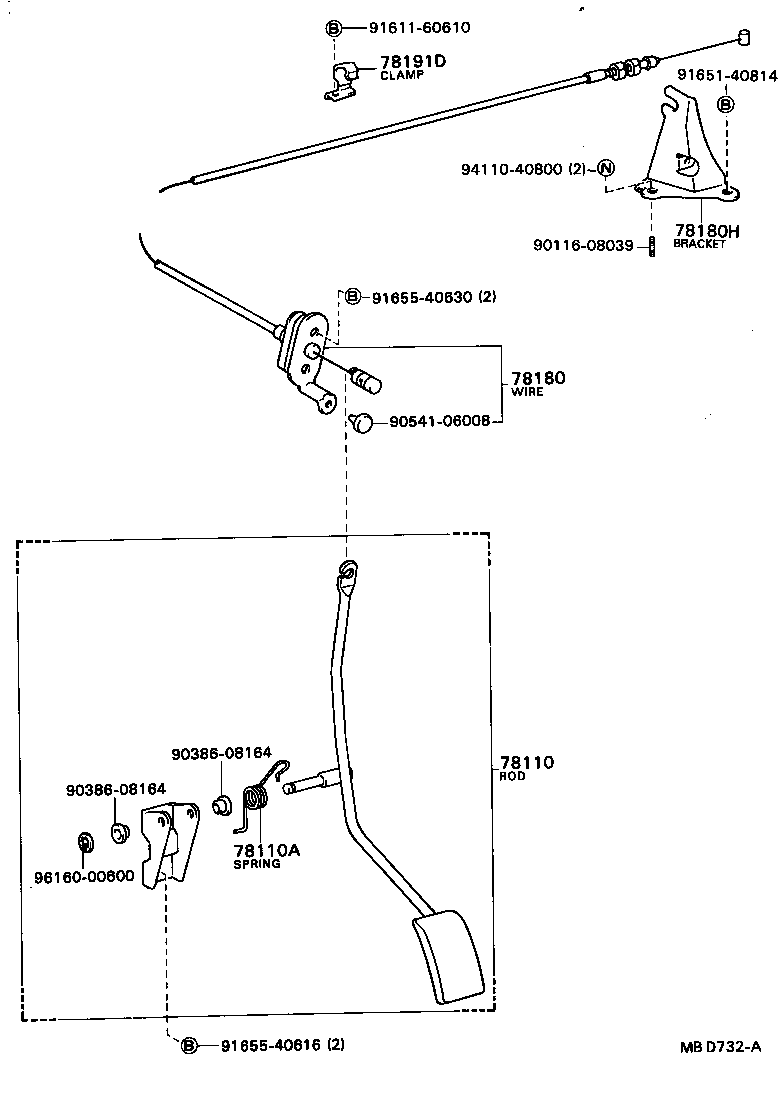

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-16040 |
AL20..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18031 |
AL2#..LHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-16070 |
AL2#..LHD |
1 | ||
| 78180H - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-16030 |
AL2#..LHD |
1 | ||
| 78191D - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-16010 |
AL20..LHD |
1 | ||
| Common parts | ||||
| 90116-08039 | ||||
| 90386-08164 | ||||
| 90541-06008 | ||||
| 91611-60610 | ||||
| 91651-40814 | ||||
| 91655-40616 | ||||
| 91655-40630 | ||||
| 94110-40800 | ||||
| 96160-00600 | ||||
