AL20L-ZHHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

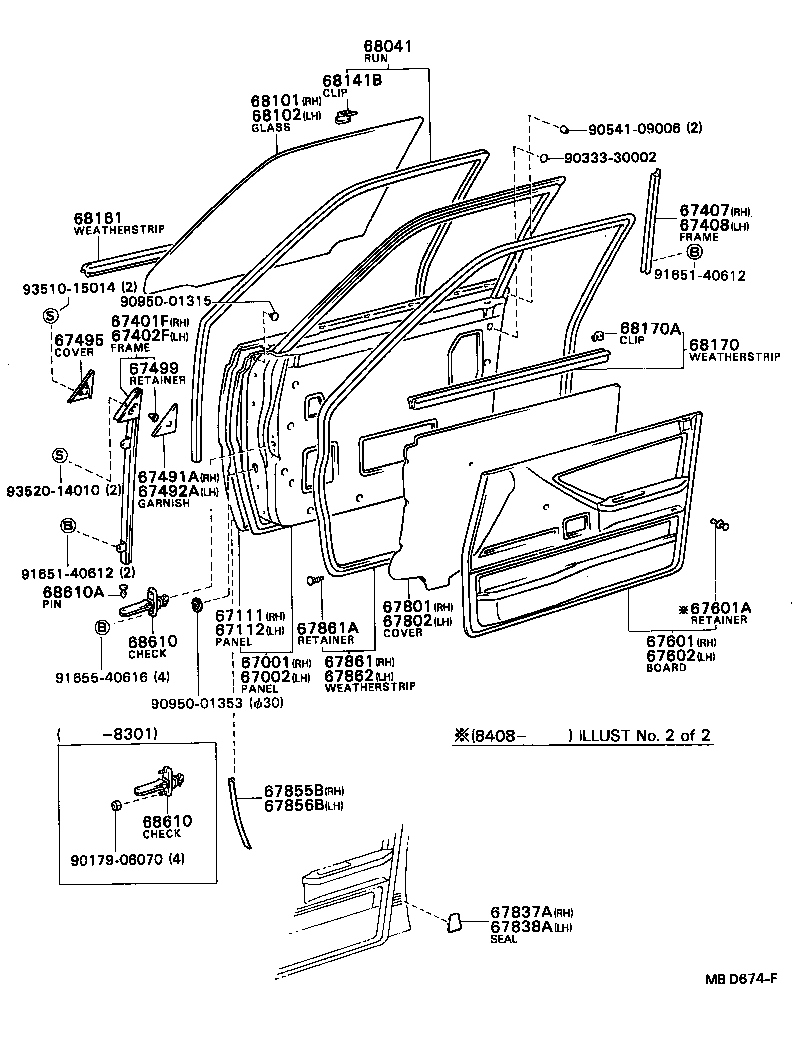

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67401F 67402F 67407 67408 67491A 67492A 67495 67499 67601 67601A 67602 67801 67802 67837A 67838A 67855B 67856B 67861 67861A 67862 68041 68101 68102 68141B 68161 68170 68170A 68610 68610 68610A 9017906070 9033330002 9054109006 9095001315 9095001353 9165140612 9165140612 9165540616 9351015014 9352014010
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-16220

AL25;AL20,21..5DS

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-16180

AL25;AL20,21..5DS

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-16120

AL25;AL20,21..5DS

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-16100

AL25;AL20,21..5DS

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-16050

AL25;AL20,21..5DS

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-16050

AL25;AL20,21..5DS

 1
67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-16030

AL25;AL20,21..5DS

 1
67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-16030

AL25;AL20,21..5DS

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-16030

AL25;AL20,21..5DS

W/O HOLE

 1
67491-16040

AL25;AL20,21..5DS

W/HOLE

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-16030

AL25;AL20,21..5DS

W/O HOLE

 1
67492-16040

AL25;AL20,21..5DS

W/HOLE

 1
67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
67495-16020

AL20,21..5DS..LHD;AL20..5DS..RHD..GEN

RH

 1
67496-16020

AL20..5DS..RHD;AL20..5DS..LHD..GEN

LH

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-30010

AL2#

 2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1642003

AL25..DLX;AL20,21..5DS..DLX

GRAY,GRAY,TRIM1#

 1
67610-1642002

AL20,21..5DS..DLX

DARK WINE,DARK WINE,TRIM3#

 1
67610-1642006

AL25..DLX;AL20,21..5DS..DLX

BROWN,BROWN,TRIM4#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-16020

AL2#

 26
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1630003

AL25..DLX;AL20,21..5DS..DLX

GRAY,GRAY,TRIM1#

 1
67620-1630002

AL20,21..5DS..DLX

DARK WINE,DARK WINE,TRIM3#

 1
67620-1630006

AL25..DLX;AL20,21..5DS..DLX

BROWN,BROWN,TRIM4#

 1
67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67831-16070

AL25;AL20,21..5DS

 1
67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67832-16070

AL25;AL20,21..5DS

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-16100

AL25;AL20,21..5DS

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67868-30040

AL2#

 46
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-16100

AL25;AL20,21..5DS

 1
68041 - RUN SUB-ASSY, FRONT DOOR GLASS
68041-16050

AL25;AL20,21..5DS

RH

 1
68042-16050

AL25;AL20,21..5DS

LH

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-16120

AL25;AL20,21..5DS

*TT,T=3.5,*TT,T=3.5

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-16120

AL25;AL20,21..5DS

*TT,T=3.5,*TT,T=3.5

 1
68141B - CLIP, DOOR GLASS RUN
62367-16010

AL2#

 2
68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68210-16050

AL25..DLX;AL20,21..5DS..DLX

LH

 1
68160-16060

AL25..DLX;AL20,21..5DS..DLX

RH

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-16060

AL25;AL20,21..5DS

LH

 1
68170-16070

AL25;AL20,21..5DS

RH

 1
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-10030

AL2#

 14
68610 - CHECK ASSY, FRONT DOOR
68610-16030

AL2#

 2
68610 - CHECK ASSY, FRONT DOOR
68610-16030

AL2#

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-22010

AL2#

 2
Common parts
90179-06070
90333-30002
90541-09006
90950-01315
90950-01353
91651-40612
91655-40616
93510-15014
93520-14010
