AL20L-ZHHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

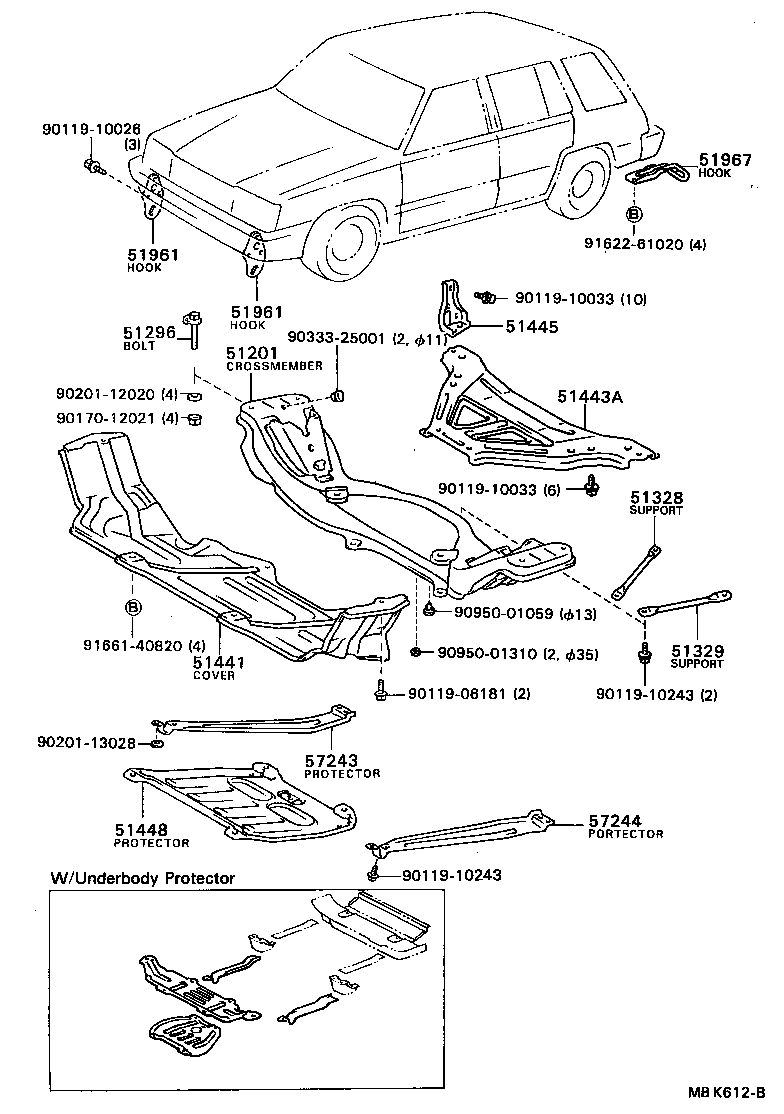

Click highlighted areas on diagram

diagram 51201 51296 51328 51329 51441 51443A 51445 51448 51961 51961 51967 57243 57244 9011906181 9011910026 9011910033 9011910033 9011910243 9011910243 9017012021 9020112020 9020113028 9033325001 9095001059 9095001310 9162261020 9166140820
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-16040

AL20,21..LHD

 1
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51296-22020

AL2#

 4
51328 - SUPPORT, FRONT SUSPENSION MEMBER, RH
51328-16010

AL2#

 1
51329 - SUPPORT, FRONT SUSPENSION MEMBER, LH
51329-16010

AL2#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-16020

AL2#

 1
51961 - HOOK, NO.1
51963-16020

AL2#

 2
51961 - HOOK, NO.1
51963-16020

AL2#

 2
51967 - HOOK, TRANSPORT, REAR
51095-16020

AL20,21

 2
Common parts
90119-06181
90119-10026
90119-10033
90119-10243
90170-12021
90201-12020
90201-13028
90333-25001
90950-01059
90950-01310
91622-61020
91661-40820
